Description

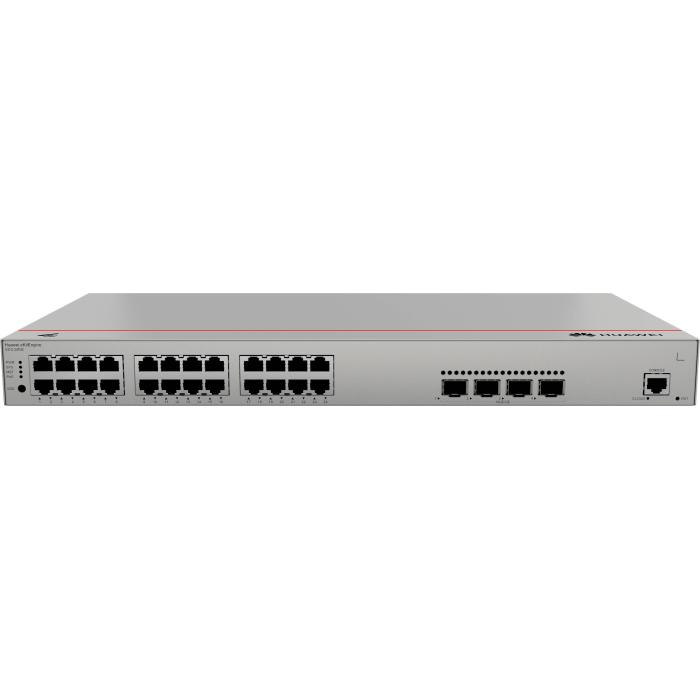

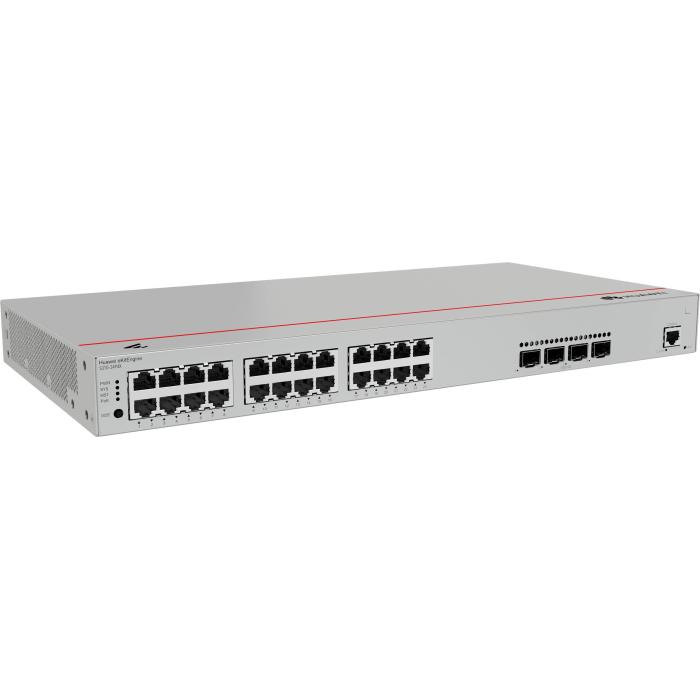

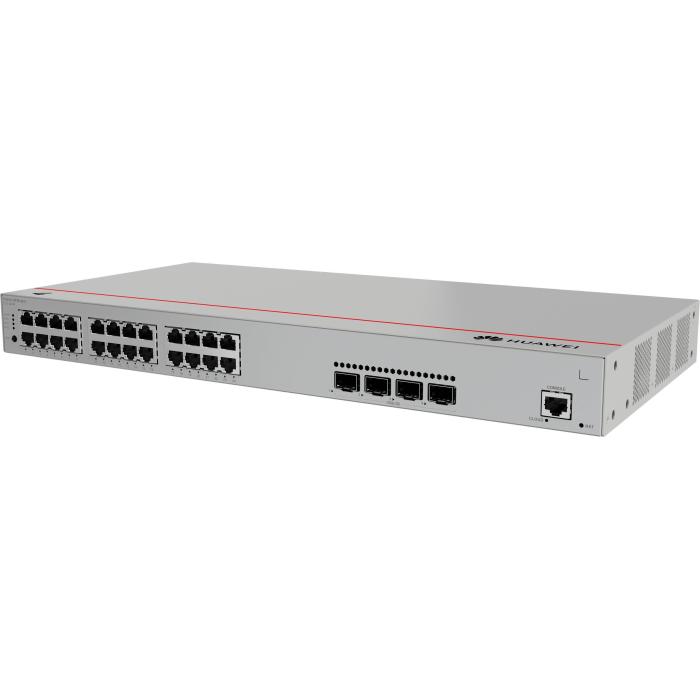

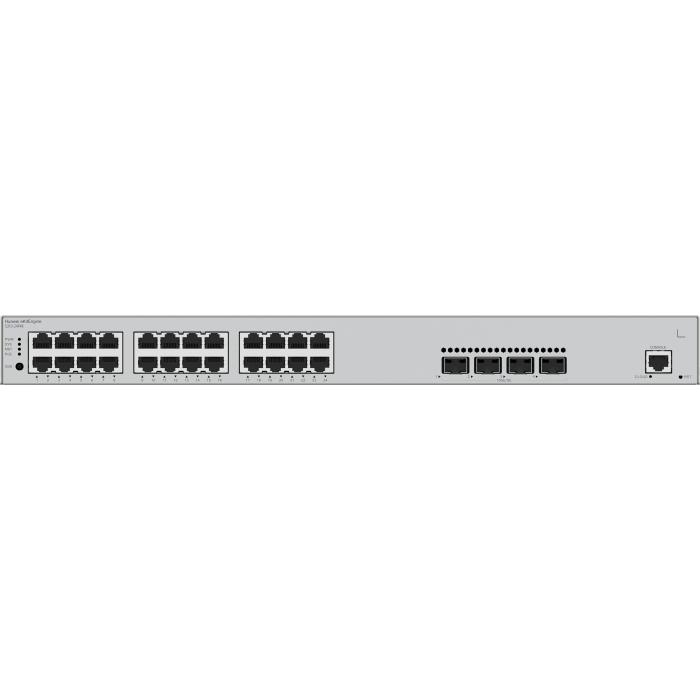

The grey HUAWEI S310-24P4X managed switch is a 1U L2+ device designed to distribute Gigabit Ethernet traffic in enterprise networks. It offers 24 Gigabit Ethernet RJ-45 ports (10/100/1000), 4 installed SFP+ modules with 10G support and an RJ-45 console port for local administration. Its switching capacity reaches 128 Gbit/s and its forwarding rate reaches 96 Mpps, with a MAC address table of 16000 entries. You manage the device both locally, by configuring location settings via CLI, and through the cloud, and it incorporates static routing and link aggregation. As for segmentation, it supports VLAN with a number of 4094 and DHCP client, server and snooping functions, as well as DHCPv6 snooping and loop protection. Its dimensions are 442 x 43.6 x 220 mm (width x height x depth), a compact format that fits in a 1U rack.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Cloud-managed: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Installed SFP+ modules quantity: 4
- Console port: RJ-45
Network
- 10G support: Yes
- Link aggregation: Yes
- VLAN support: Yes
- Number of VLANs: 4094
Data transmission
- Switching capacity: 128 Gbit/s
- Forwarding rate: 96 Mpps
- MAC address table: 16000 entries
- Static route: Yes
Security
- DHCP features: DHCP client, DHCP server, DHCP snooping, DHCPv6 snooping
- Security algorithms: SNMP, SNMPv2, SNMPv3
- Loop protection: Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Grey
- Housing material: Metal
- LED indicators: Yes
- International Protection (IP) code: IP20
Performance
- Noise level: 63 dB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 485.91 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 400 W
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 5000 m
- Non-operating altitude: 0 - 5000 m
Weight & dimensions
- Width: 442 mm
- Depth: 220 mm
- Height: 43.6 mm
Packaging data
- Package weight: 3.79 kg
