Description

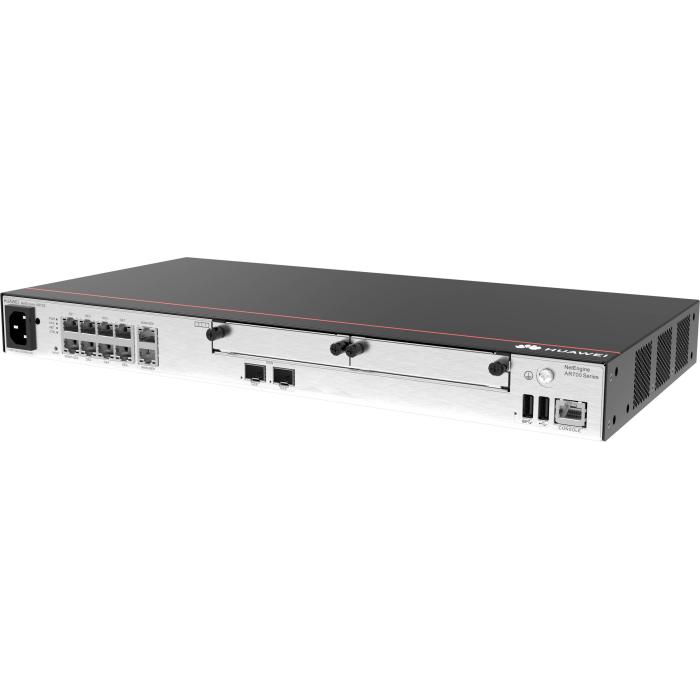

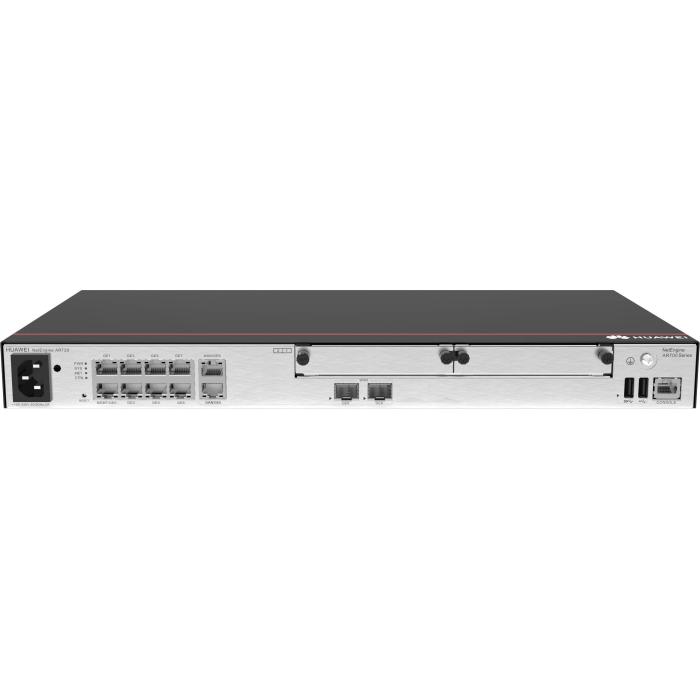

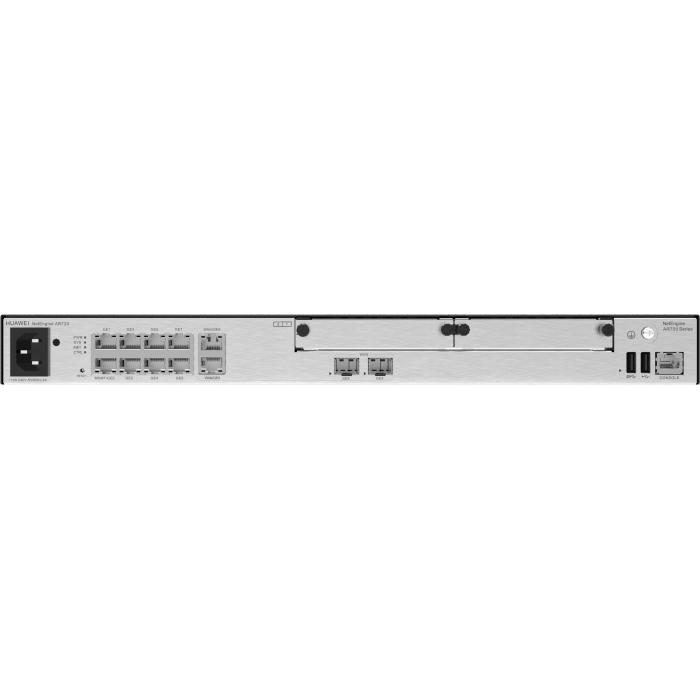

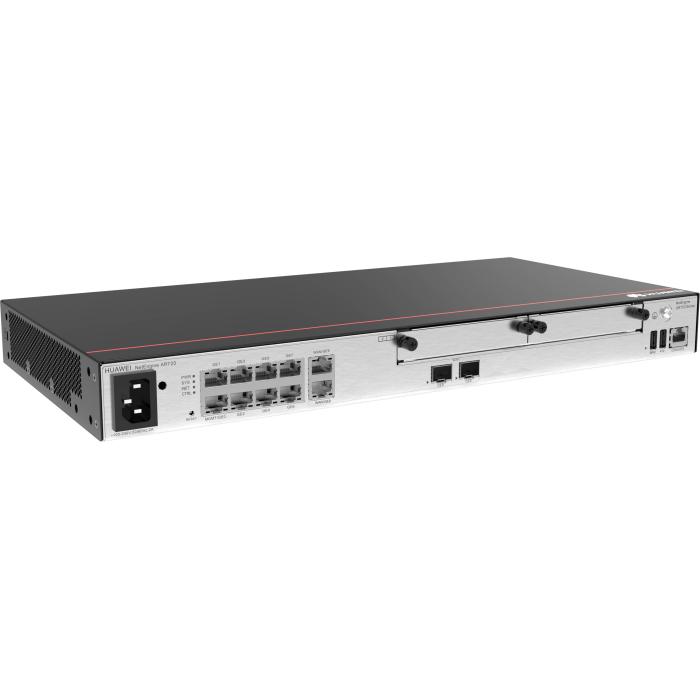

The HUAWEI eKit AR720 router from the AR700 series is a Gigabit Ethernet device with 10/100/1000Base-T(X) cabling technology and a grey colour. It features eight RJ-45 LAN ports and two WAN ports, as well as a console port and a USB 2.0 connection. Its forwarding rate reaches 25 Mpps and it supports transfer speeds of 10, 100 and 1000 Mbit/s. It offers advanced functions such as VLAN support, port forwarding, multicast, policy-based routing and priority assignment. It complies with the IEEE 802.3, IEEE 802.1p and IEEE 802.1Q network standards, and includes web-based management, traffic classification and quality of service (QoS). Its dimensions are 442 x 44.4 x 220.4 mm (width x height x depth) and it weighs 3.2 kg.
Specifications
WAN connection
- Ethernet WAN: Yes
Network
- Networking standards: IEEE 802.3, IEEE 802.1p, IEEE 802.1Q
- Ethernet interface type: Gigabit Ethernet
- Cabling technology: 10/100/1000Base-T(X)
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Forwarding rate: 25 Mpps
- VLAN support: Yes
- Multicast support: Yes
- Port forwarding: Yes
- Policy-based routing: Yes
Management features
- Web-based management: Yes
- Quality of Service (QoS) support: Yes
- Priority mapping: Yes
- Traffic shaping: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 8
- WAN ports quantity: 2
- SFP module slots quantity: 2
- Number of console ports: 1
- Smart Interface Card (SIC) slots quantity: 2
- USB ports quantity: 2
- USB version: 2.0
Protocols
- DHCP client: Yes
- DHCP server: Yes
Security
- Security algorithms: WEP, WPA, WPA2
- Firewall: Yes
- ARP attack prevention: Yes
- Access Control List (ACL): Yes
- Network address translation (NAT): Yes
Features
- Built-in processor: Yes
- Processor frequency: 1400 MHz
- Flash memory: 1024 MB
- Internal memory: 4000 MB
Design
- Product colour: Grey
- Rack mounting: Yes
- Rack capacity: 1U
- LED indicators: Yes
Power
- Power consumption (typical): 33 W
- Power consumption (max): 70 W
- Power source type: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 2 A
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 5000 m
Weight & dimensions
- Width: 442 mm
- Depth: 220.4 mm
- Height: 44.4 mm
- Weight: 3.2 kg
Packaging data
- Package width: 390 mm
- Package depth: 570 mm
- Package height: 90 mm
- Package weight: 4.6 kg
