Hewlett Packard Enterprise Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) White 1U Power over Ethernet (PoE)
Hewlett Packard Enterprise Aruba Instant On 1930, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
322.67 €
268.89 €
without VAT
Stock available: 1 ud.
Get it
on the
September 24
/
September 25
SKU:
84882
PRC:
290861
EAN:
190017355238
PN:
jl681a#abb
Description

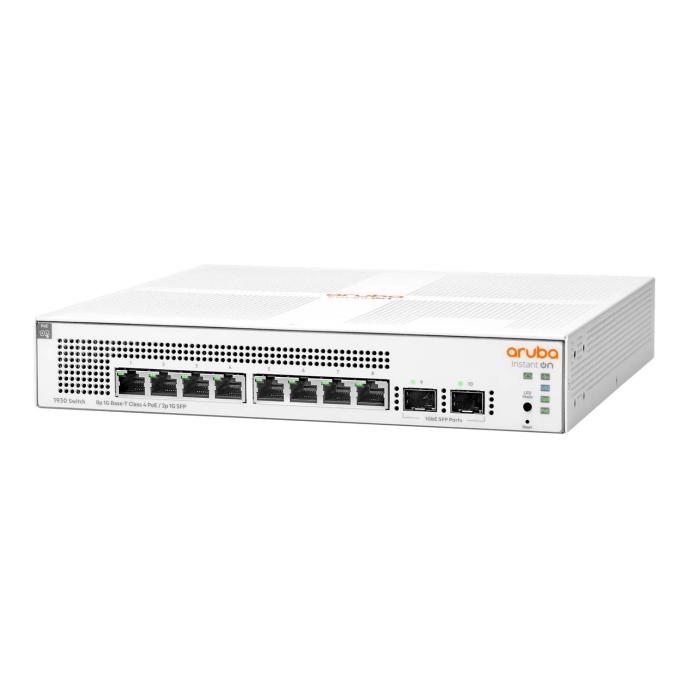

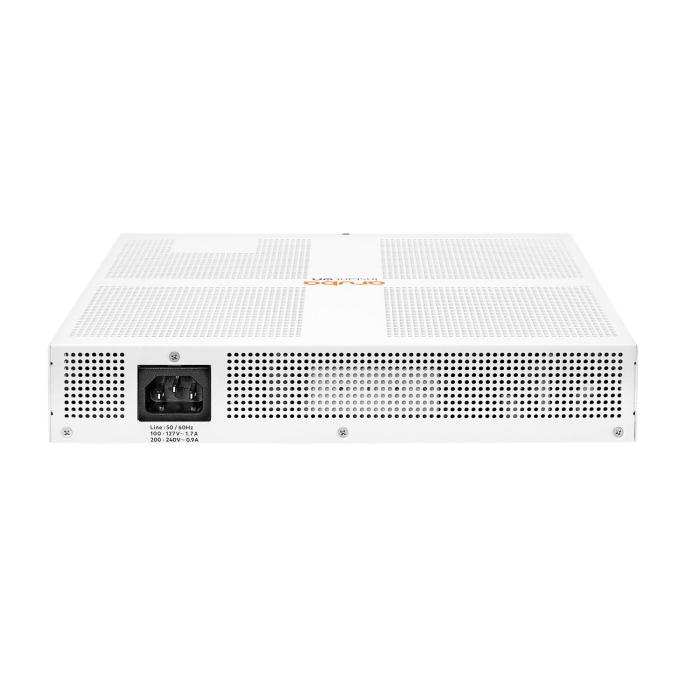

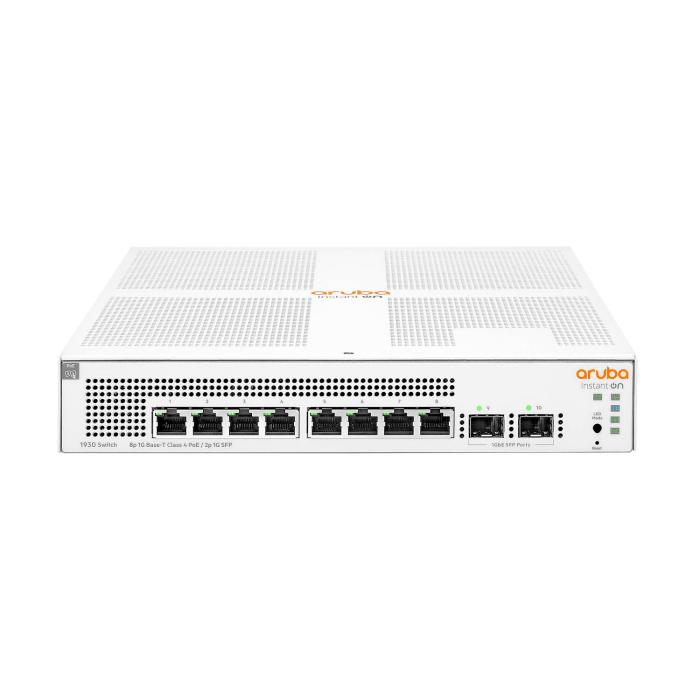

The Hewlett Packard Enterprise Aruba Instant On 1930 managed switch, in white, offers Gigabit Ethernet connectivity with 8 RJ-45 ports for basic switching and 2 SFP combo ports. It is managed via the web and reaches L2+ layer, with support for quality of service (QoS), VLAN up to 256 and spanning tree protocol. It includes flow control, rate limiting, link aggregation, port mirroring and auto MDI/MDI-X, as well as complying with IEEE 802.1Q, 802.1p, 802.1x, 802.3, 802.3ab, 802.3u and 802.3x standards over 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling. Its dimensions are 254 x 43.9 x 254 mm (width x height x depth) with a weight of 1.16 kg, in 1U format.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- VLAN support: Yes
- Number of VLANs: 256
Data transmission
- Switching capacity: 20 Gbit/s
- Throughput: 14.8 Mpps
- MAC address table: 8000 entries
- Latency (10-100 Mbps): 5.2 µs
- Latency (1 Gbps): 3 µs
- Jumbo frames support: Yes
- Packet buffer memory: 1.5 MB
Security
- IGMP snooping: Yes
- SSH/SSL support: Yes
Design
- Rack mounting: Yes
- Stackable: No
- Form factor: 1U
- Product colour: White
Performance
- Processor model: ARM Cortex-A9
- Processor frequency: 800 MHz
- Memory type: SDRAM
- Internal memory: 512 MB
- Flash memory: 256 MB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 150.2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 124 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 95%
Weight & dimensions
- Width: 254 mm
- Depth: 254 mm
- Height: 43.9 mm
- Weight: 1.16 kg
