Description

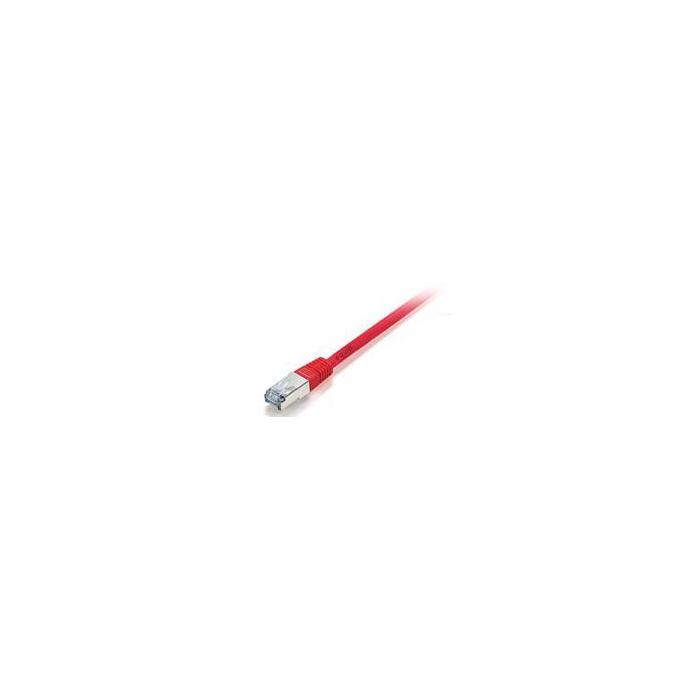

EQUIP network cable in red and 3 m in length, designed to connect devices with male RJ-45 connectors at both ends. Its Cat6 construction with S/FTP (S-STP) shielding and 28/7 gauge copper conductors seeks stable performance in demanding network installations. The contacts are gold-plated, a common detail to promote conductivity in each connection. The jacket is halogen-free (LSZH), and the moulded connector provides resistance to continuous use. It supports PoE, which allows powering devices through the Ethernet cable itself. It is compatible with PoE+ and complies with the IEEE 802.3 and IEEE 802.5 standards. Its installation is immediate thanks to the Plug and Play function, with no additional configuration. With a weight of 128 g and dimensions of 8.34 x 3000 x 11.7 mm (width x height x depth), it is a practical solution for home, office or rack setups.
Specifications
Features
- Product colour: Red
- Cable length: 3 m
- Cable standard: Cat6
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10/100/1000Base-T(X)
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 28/7
- Data transfer rate: 1000 Mbit/s
- Frequency: 250 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+
- Molded cable boot: Yes
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS, UKCA
- Certification: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
Weight & dimensions
- Width: 8.34 mm
- Depth: 11.7 mm
- Height: 3000 mm
- Outer diameter: 5.8 mm
- Weight: 128 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 160 mm
- Package depth: 25 mm
- Package height: 200 mm
- Package weight: 60 g
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 290 mm
- Master (outer) case length: 350 mm
- Master (outer) case gross weight: 12.5 kg
- Master (outer) case height: 380 mm
- Products per master (outer) case: 100 pc(s)
Technical details
- Sustainability compliance: Yes
