Description

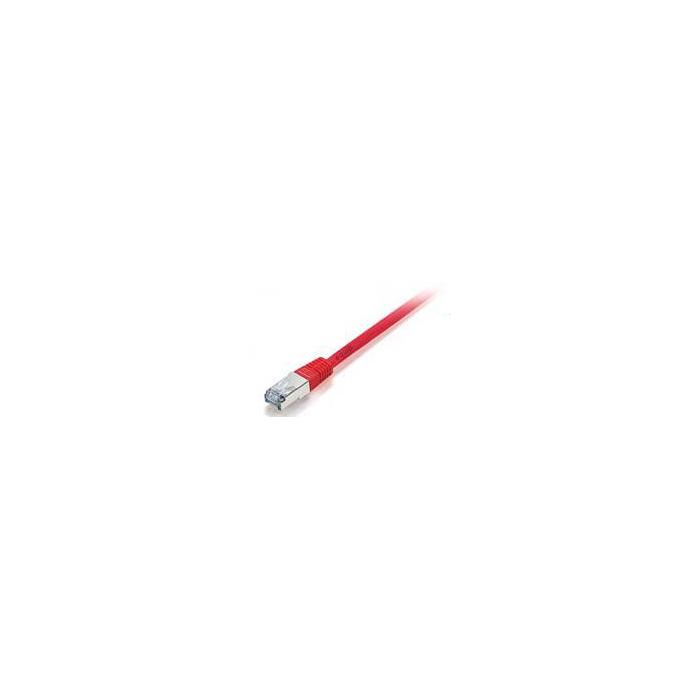

EQUIP network cable in red and 1 m in length, designed for reliable Ethernet connections. It belongs to the Cat6 category and features S/FTP (S-STP) shielding, which contributes to stable performance in demanding environments. It supports 10/100/1000Base-T(X) cabling technology and achieves a data transfer rate of 1000 Mbit/s with a frequency of 250 MHz. It is compatible with Fast Ethernet and Gigabit Ethernet, and complies with the IEEE 802.3 and IEEE 802.5 network standards. Its connector contacts are gold-plated, the conductor is stranded and the cable gauge is 28/7, with a round shape. It has a moulded connector and supports Power over Ethernet (PoE). Both connectors are male and straight form factor. It has dimensions of 8.34 x 1000 x 11.7 mm (width x height x depth) and a weight of 51 g.
Specifications
Features
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10/100/1000Base-T(X)
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 28/7
- Data transfer rate: 1000 Mbit/s
- Frequency: 250 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+
- Molded cable boot: Yes
- Plug and Play: Yes
- Country of origin: China
- Product colour: Red
- Cable length: 1 m
- Cable standard: Cat6
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS, UKCA
- Certification: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
Weight & dimensions
- Width: 8.34 mm
- Depth: 11.7 mm
- Height: 1000 mm
- Outer diameter: 5.8 mm
- Weight: 51 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 140 mm
- Package depth: 15 mm
- Package height: 180 mm
- Package weight: 25 g
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 290 mm
- Master (outer) case length: 350 mm
- Master (outer) case gross weight: 11.1 kg
- Master (outer) case height: 380 mm
- Products per master (outer) case: 250 pc(s)
Technical details
- Sustainability compliance: Yes
