Description

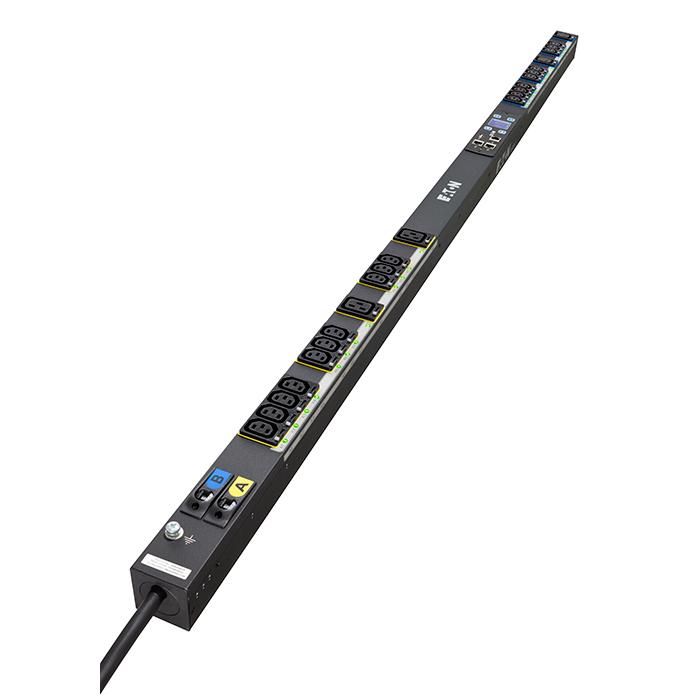

The Eaton EMAB03 PDU, a managed power distribution unit with a 0U form factor and vertical rack mounting, integrates 16 AC C13 outlets alongside a C14 inlet and an LCD display for direct monitoring. Its black housing and 3-metre cable are complemented by LED indicators, while an RJ-45 Ethernet port enables management via SNMP and Telnet protocols, as well as offering upgradeable firmware. It is a single-phase unit designed for professional installations requiring remote control and precise monitoring of the electrical supply.
Specifications
Design
- Type: Single-phase
- Form factor: Rackmount
- Rack mounting: Yes
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
- Cable colour: Black
- Display: LCD
- PDU types: Managed
Ports & interfaces
- AC outlets quantity: 16 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- Ethernet LAN (RJ-45) ports: 1
- Output connections: 16 x C13
Features
- LED indicators: Yes
- Cable length: 3 m
Management features
- Management protocols: SNMP, Telnet
- Firmware upgradeable: Yes
- Firmware upgradeable via: Network, USB
Power
- Nominal input voltage: 230 V
- AC input frequency: 50 Hz
- Maximum current: 10 A
- Nominal output voltage: 230 V
- Maximum input current per phase: 10 A
- Maximum power: 2300 W
Certificates
- Compliance certificates: RoHS
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
Weight & dimensions
- Width: 53 mm
- Depth: 1154 mm
- Height: 52 mm
- Weight: 3 kg
Packaging content
- Cables included: LAN (RJ-45)
- Rack mount kit: Yes
Packaging data
- Package weight: 4.9 kg
