Description

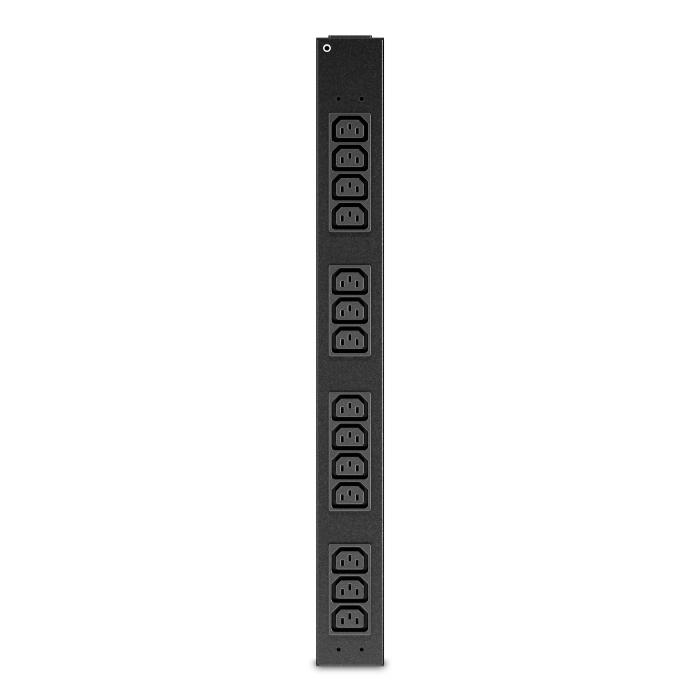

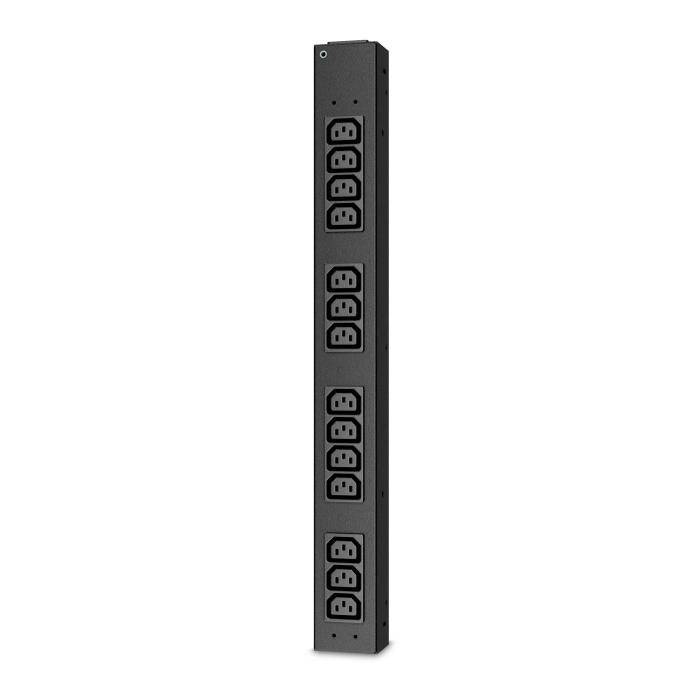

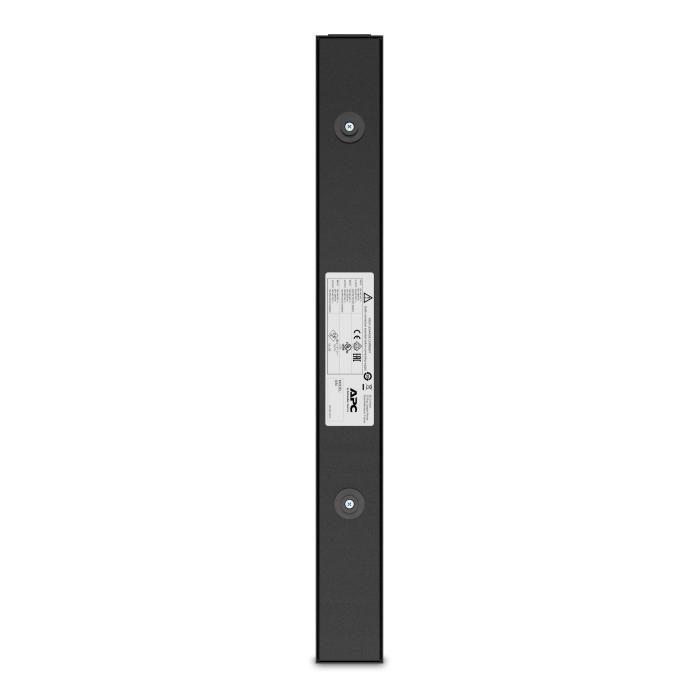

Connect up to 14 devices with the APC AP6003A, a basic power distribution unit in 0U/2U format that supports both horizontal and vertical mounting. This single-phase PDU features a C20 coupler input and C13 outputs, offering a nominal output voltage of 100-240 V and a maximum power of 3680 W (3680 VA) with a total current of 16 A per phase. Its black design fits standard racks, while its cUL, UL, and REACH certifications ensure regulatory compliance for professional environments.
Specifications
Design
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U/2U
- Mounting: Horizontal/Vertical
- Product colour: Black
Ports & interfaces
- AC outlets quantity: 14 AC outlet(s)
- Power plug: C20 coupler
- AC outlet types: C13 coupler
- Input connection type: IEC-320 C20
Power
- Nominal input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 20 A
- Nominal output voltage: 100-240 V
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum total current draw per phase: 16 A
- Maximum power: 3680 W
Certificates
- Compliance certificates: RoHS
- Certification: cUL, UL, REACH
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -15 - 65 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Weight & dimensions
- Width: 56 mm
- Depth: 47 mm
- Height: 523 mm
- Weight: 1.88 kg
Packaging data
- Package weight: 2.55 kg
- Package width: 123 mm
- Package depth: 107 mm
- Package height: 612 mm
