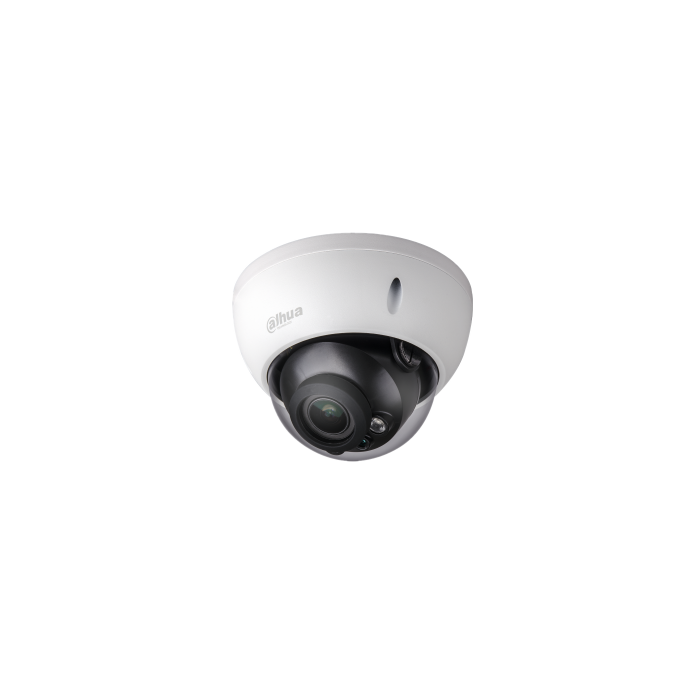

Dahua Technology DH-IPC-HDBW5831RP-ZE-2712 Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
More info
Brand: DAHUA TECHNOLOGY
351.07 €
SKU:
98268
PRC:
426307
EAN:
6939554936326
PN:
1.0.01.04.24228
Description
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Luminous flux: 0.5 lm
- Certification: CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: Black, White
- Housing material: Metal
- Protection features: Vandal proof
- International Protection (IP) code: IP67
- IK code: IK10
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Angle of rotation: 355°
- Lens viewing angle, horizontal: 110°
- Lens viewing angle, vertical: 58°
- Tilt angle range: 0 - 75°
- Pan range: 0 - 355°
- White balance: Auto, Custom modes, Manual, Natural, Outdoor
- Camera shutter type: Electronic
- Camera shutter speed: 1/3 - 1/100000 s
- Adjustment shutter speed: Auto/Manual
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 4x
- Digital zoom: 16x
- Number of lenses: 1
- Focal length range: 2.7 - 12 mm
- Maximum aperture number: 1.4
- Detect distance (wide): 85 m
- Detect distance (tele): 228 m
- Observe distance (wide): 34 m
- Observe distance (tele): 91 m
- Recognize distance (wide): 17 m
- Recognize distance (tele): 46 m
- Identify distance (wide): 8.5 m
- Identify distance (tele): 23 m
- Closest focusing distance: 0.3 m
Night vision
- Night vision: Yes
- LED type: IR
- Number of illumination LEDs: 2
Video
- Maximum resolution: 3840 x 2160 pixels
- Total megapixels: 8 MP
- Video formats supported: H.264, H.264+, H.265, H.265+
- Video compression formats: H.264, H.264+, H.265, H.265+
- Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536
- Supported video modes: 240p, 480p, 576p, 720p, 960p, 1080p, 1520p, 1944p, 2160p
- Frame rate: 30 fps
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Gain control type: Auto/Manual
- Flip & mirror: Yes
- Privacy masking: Yes
- Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
- Bit rate: H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Smart IR: Yes
Audio
- Signal-to-Noise Ratio (SNR): 50 dB
Network
- Ethernet LAN: Yes
- Supported network protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; IC
- Number of users: 20 user(s)
- Quality of Service (QoS) support: Yes
- Streaming method: Multicast, Unicast
- Web servers supported: IE, Chrome, Firefox, Safari
Storage
- Built-in HDD: No
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 128 GB
- Internal memory: 512 MB
- ROM capacity: 32 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Security
- Alarm input channels: 1
- Alarm output channels: 1
- Video motion detection: Yes
- HTTPS encryption: Yes
- Intelligent Video Surveillance (IVS) system features: Abandoned object, Intrusion, Missing object, Tripwire
- Mirror: Yes
Management features
- Web browser: Yes
- Management software: Smart PSS, DSS, Easy4ip
Power
- Power source type: DC, PoE
- Power consumption (typical): 8.5 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
System requirements
- Mobile operating systems supported: Android, iOS
Weight & dimensions
- Height: 88.9 mm
- Diameter: 12.2 cm
- Weight: 500 g
Packaging data
- Package weight: 580 g
Packaging content
- Number of cameras: 1
