Description
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8

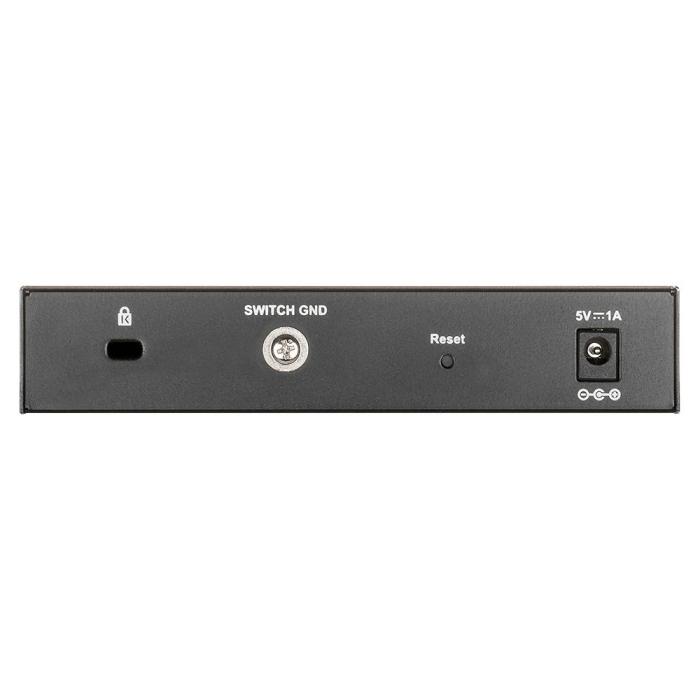

- Power connector: DC-in jack
Network
- Copper ethernet cabling technology: 1000BASE-T
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Head-of-line (HOL) blocking: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4094
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 4000 entries
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 1.5 MB
Security
- IGMP snooping: Yes
- IGMP entries: 128
- Static port security: Yes
- Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
Design
- Rack mounting: No
- Product colour: Black
- Reset button: Yes
- Number of fans: 0 fan(s)
Performance
- Noise level: 0 dB
- Fanless: Yes
- Mean time between failures (MTBF): 1456992 h
Power
- Power source: DC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- DC input voltage: 5 V
- Input current: 1 A
- Power consumption (max): 4.94 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 2000 m
- Heat dissipation: 16.85 BTU/h
Weight & dimensions
- Width: 145 mm
- Depth: 82 mm
- Height: 28 mm
- Weight: 340 g
Certificates
- Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL
Logistics data
- Harmonized System (HS) code: 85176990
