Description

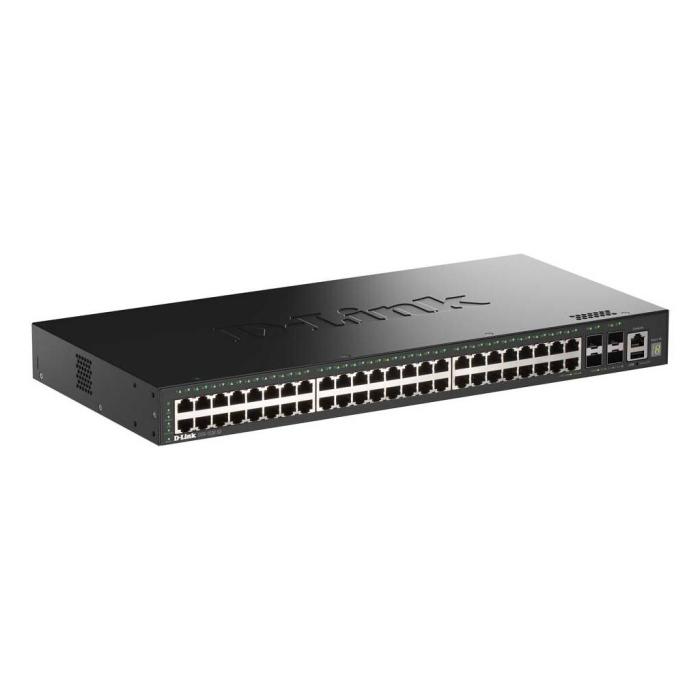

The D-Link DGS-1530-52 managed switch is a black device for the deployment of high-performance wired networks. It is a Layer 2 model with 48 Gigabit Ethernet (10/100/1000) RJ-45 ports, which also incorporates 4 slots for SFP+ modules and a USB 2.0 type A port. Its dimensions are 440 x 44 x 210 mm (width x height x depth) and its weight is 3.2 kg, which makes it suitable for rack installation. It offers web-based management and configuration of location settings via CLI, and includes functions such as quality of service (QoS), traffic classification, ARP inspection and policy-based routing. As for connectivity, it supports auto-negotiation, flow control and Auto MDI/MDI-X, and has an RJ-45 console port. It incorporates 10G support, which allows it to be integrated into network environments that require greater bandwidth in their trunk links.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic classification: Yes
- ARP inspection: Yes
- Configuring Location Settings (CLI): Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- USB Type-A ports quantity: 1
- Console port: RJ-45
- USB 2.0 ports quantity: 1
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
- 10G support: Yes
- Port mirroring: Yes
- Full duplex: Yes
- Policy-based routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,1000,100 Mbit/s
- Auto-negotiation: Yes
- VLAN support: Yes
- Number of VLANs: 4096
Data transmission
- Switching capacity: 176 Gbit/s
- Forwarding rate: 130.95 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Packet buffer memory: 1.5 MB
Security
- Access Control List (ACL): Yes
- Access Control List (ACL) egress: 1000
- Access Control List (ACL) ingress: 2000
- IGMP snooping: Yes
- Security algorithms: SNMP, SNMPv2, SNMPv3
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- Password protection: Yes
- Authentication type: RADIUS, TACACS+
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- LED indicators: Yes
- Number of fans: 2 fan(s)
Performance
- Noise level: 54.7 dB
- Mean time between failures (MTBF): 330520 h
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 44.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Heat dissipation: 150.38 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 210 mm
- Height: 44 mm
- Weight: 3.2 kg
