Description

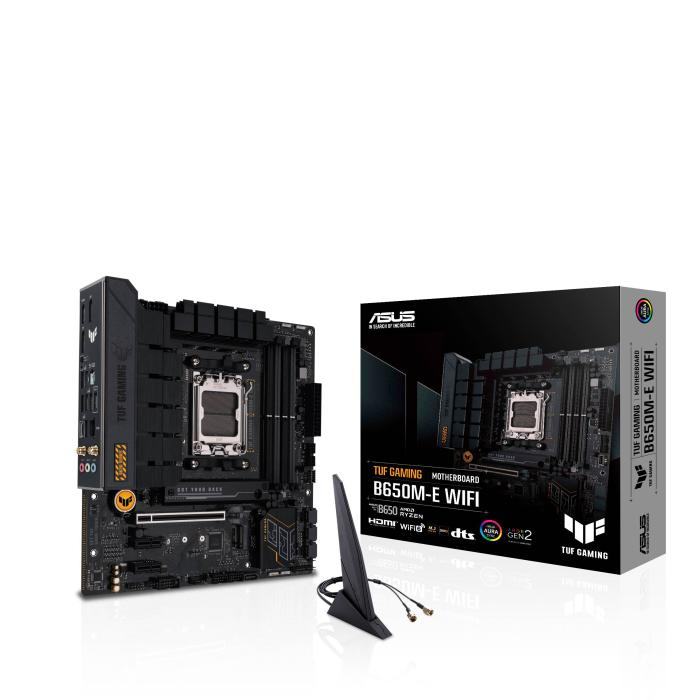

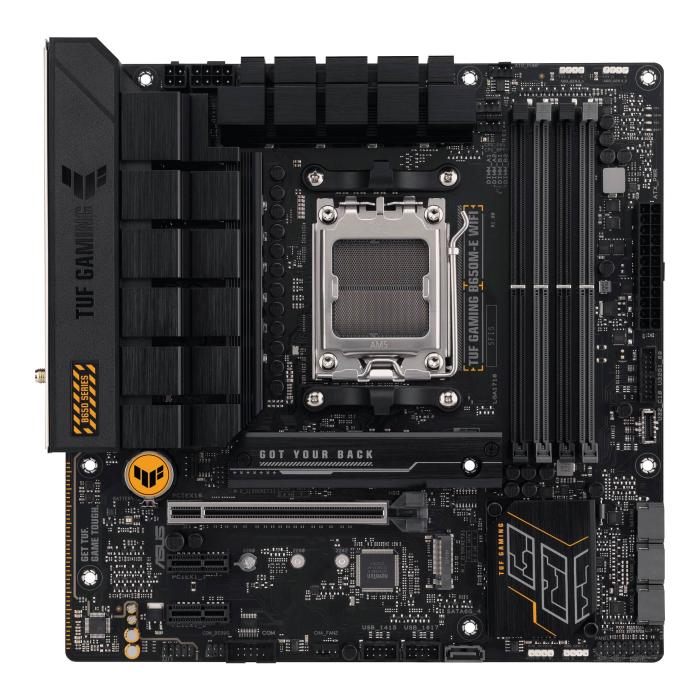

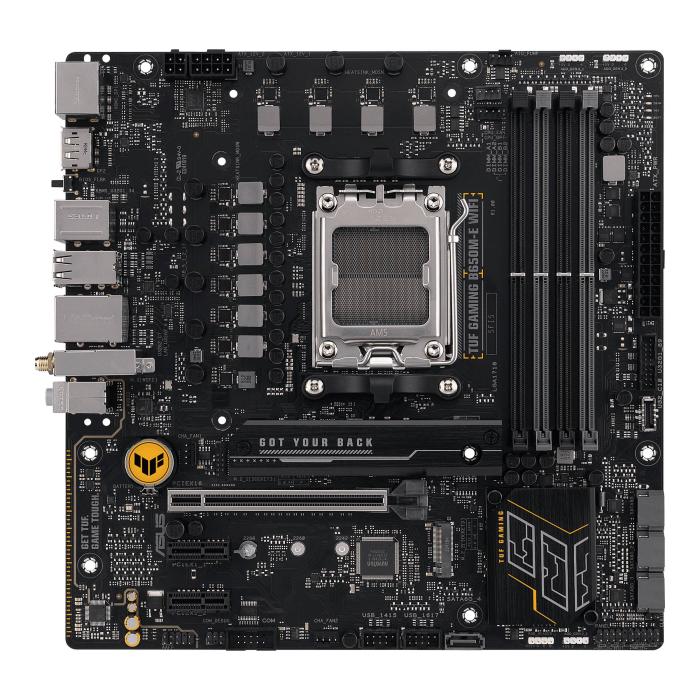

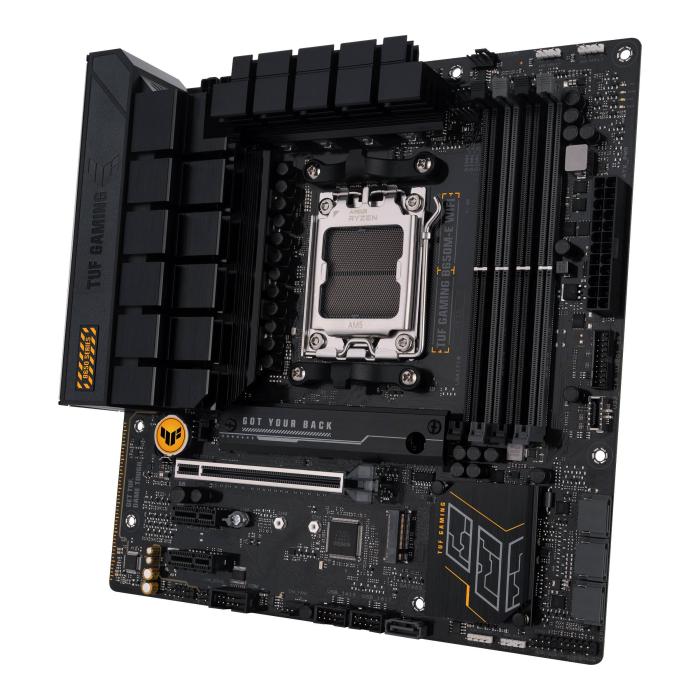

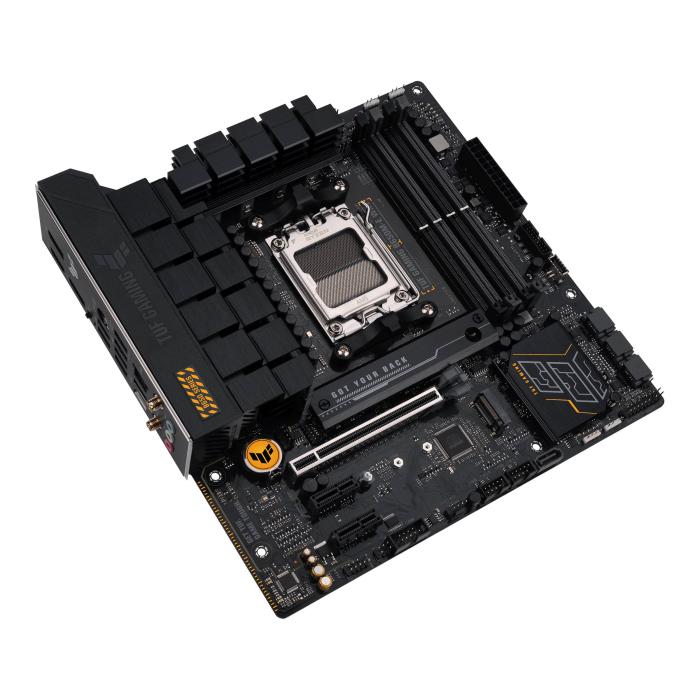

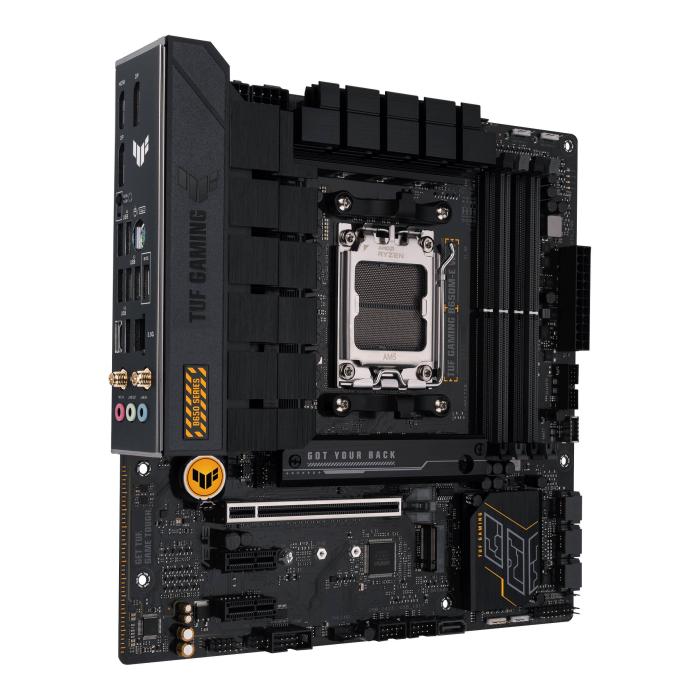

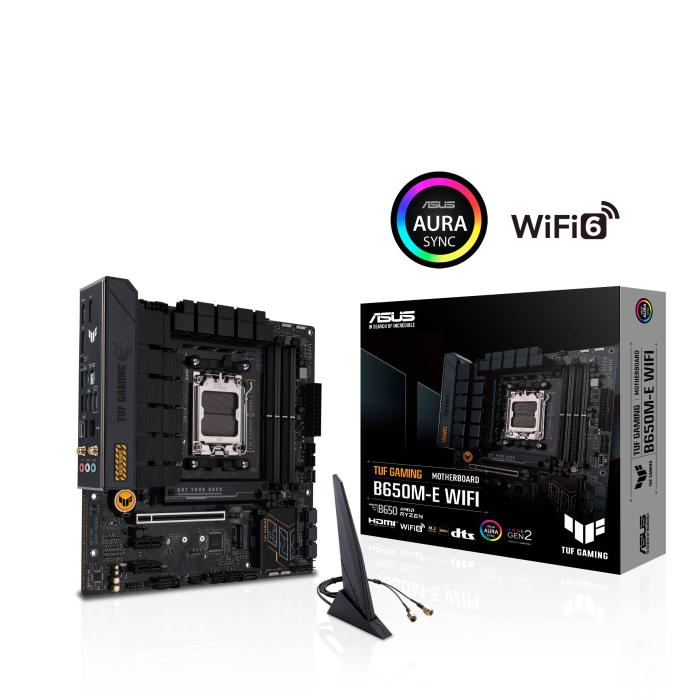

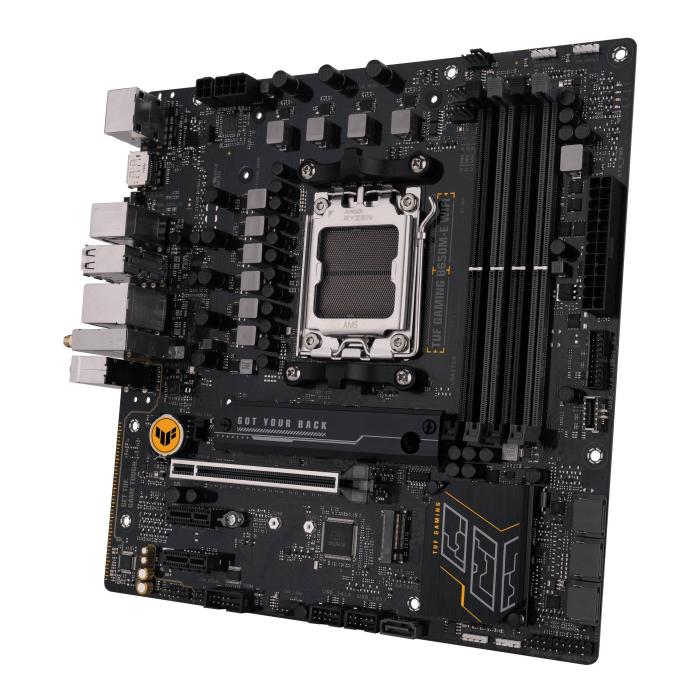

The ASUS TUF GAMING B650M-E WIFI motherboard is a micro ATX model with AM5 socket, designed for AMD Ryzen 7000 Series processors. It features four DIMM slots that support DDR5-SDRAM dual-channel memory, with supported clock speeds of 4800, 5000, 5200, 5400, 5600 and 5800, and compatibility with ECC and non-ECC unbuffered modules. Maximum internal memory reaches 128 GB, sufficient for demanding work and gaming configurations. As for storage, it supports HDD and SSD with M.2 and SATA III interfaces, allows RAID at levels 0, 1 and 10, supports up to four HDD and six storage drives in total, and has an 8-pin EPS power connector. Its dimensions are 244 x 50 x 244 mm (width x height x depth) and its weight is 1.01 kg, a compact format that integrates well into micro ATX cases.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- 12V power connector: Yes
- RGB LED pin header: Yes
- USB 2.0 connectors: 2

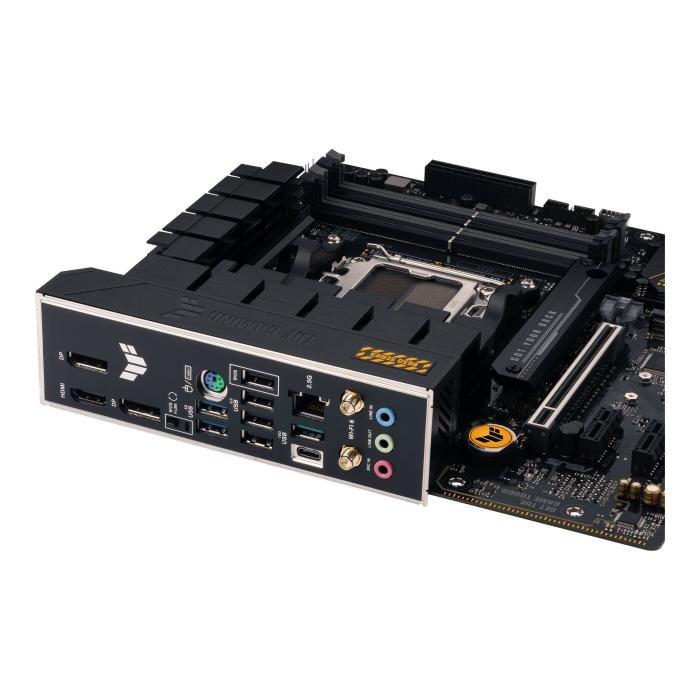

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 2
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet

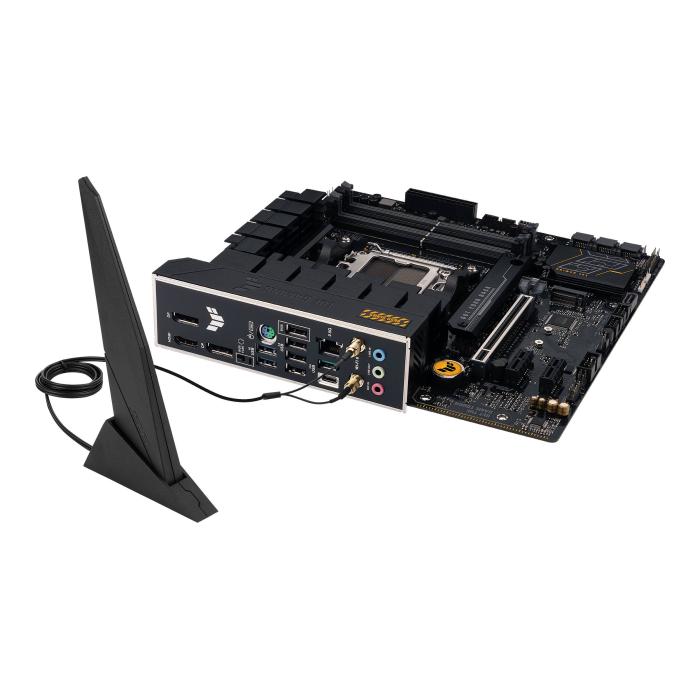

- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: AMD B650
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 2
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 275 mm
- Package depth: 275 mm
- Package height: 67.4 mm
- Package weight: 1.7 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
- Height: 50 mm
Packaging content
- Cables included: SATA
Other features
- Weight: 1.01 kg
