Description

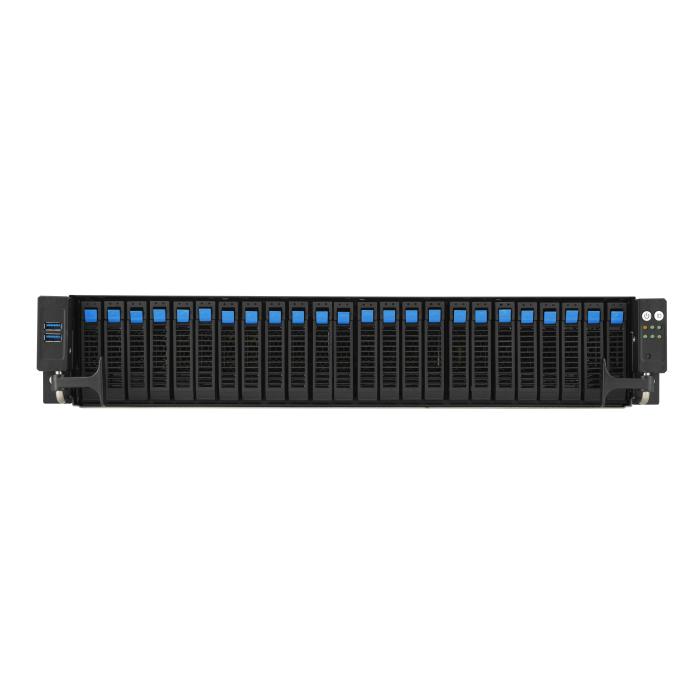

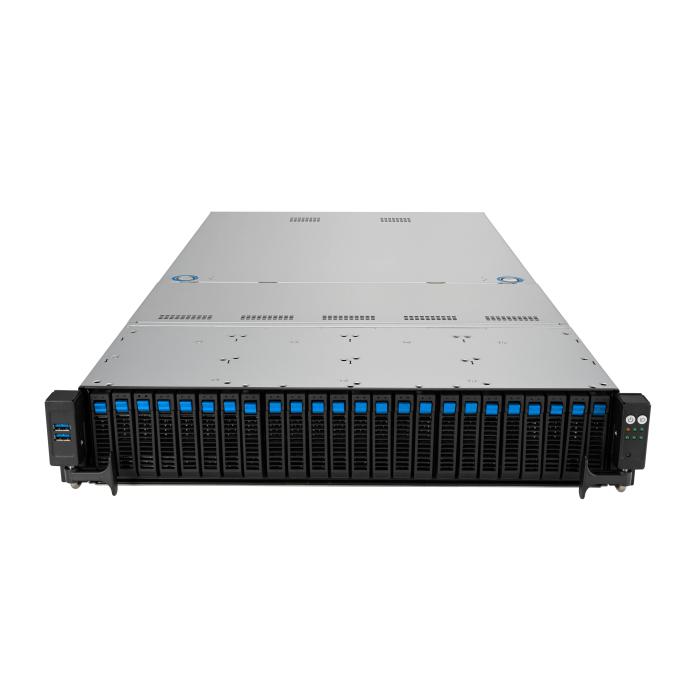

The ASUS RS520A-E12-RS24U server is a 2U grey rack unit that integrates an SP5 socket for a single processor compatible with the AMD EPYC 9004 family. It features 24 DIMM slots supporting 16GB, 32GB, 64GB, 128GB and 256GB DDR5-SDRAM modules, with RDIMM speeds of 3600, 4000, 4400 and 4800 MHz, reaching a maximum internal memory of 6.14 TB. As for storage, it supports up to 28 drives between HDDs and SSDs, with 26 2.5-inch bays and M.2 form factor, plus a hot-swap HDD bay. Its integrated graphics are handled by the Aspeed AST2600 with 64 MB of adapter memory. This rack unit measures 449 x 88.1 x 840 mm (width x height x depth) and weighs 19.1 kg.
Specifications
Processor
- Processor socket: Socket SP5
- Processor manufacturer: AMD
- Processor family: AMD EPYC
- Number of processors supported: 1
- Compatible processor series: AMD EPYC 9004
Memory
- Number of DIMM slots: 24
- Supported memory types: DDR5-SDRAM
- Supported DIMM module capacities: 128GB, 64GB, 32GB, 16GB, 256GB
- Maximum internal memory: 6.14 TB
- Supported RDIMM clock speeds: 4400, 4800, 4000, 3600 MHz
Storage
- Number of storage drives supported: 28
- Hot-swap HDD bays: Yes
- Number of 2.5" bays: 26
- Storage drive sizes supported: 2.5, M.2
- Supported storage drive types: HDD & SSD
- SSD form factor: M.2
Graphics
- On-board graphics card model: Aspeed AST2600
- On-board graphics card memory: 64 MB
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Intel® I350-AM2
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 2
- IPMI LAN (RJ-45) port: Yes
- VGA (D-Sub) ports quantity: 1
Expansion slots
- PCI Express slots version: 5.0
Technical details
- Compliance certificates: CE, CB, RCM, Federal Communications Commission (FCC)
Design
- Chassis type: Rack (2U)
- Product colour: Grey
- LED indicators: Yes
- On/off switch: Yes
- Reset button: Yes
Power
- Power supply: 1600 W
- Redundant power supply (RPS) support: Yes
Operational conditions
- Operating temperature (T-T): 10 - 35 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
- Width: 449 mm
- Depth: 840 mm
- Height: 88.1 mm
- Weight: 19.1 kg
Packaging data
- Package weight: 26.6 kg
