Description

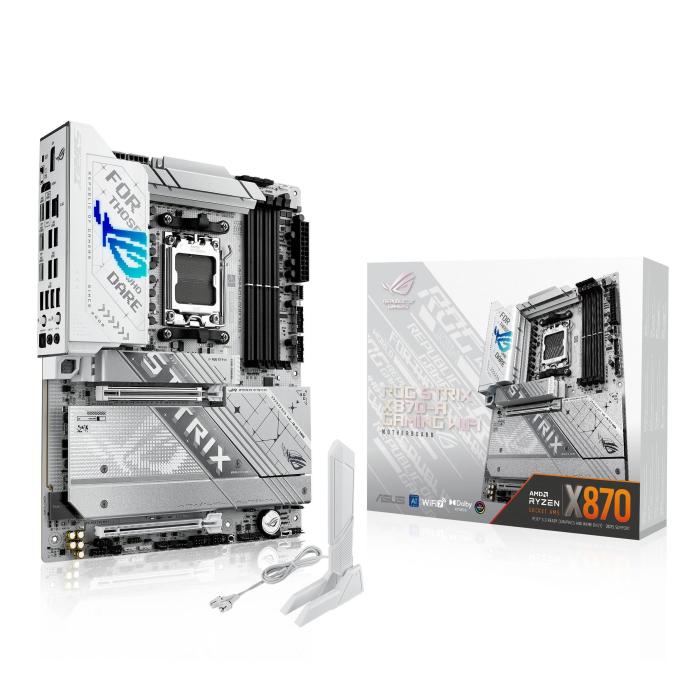

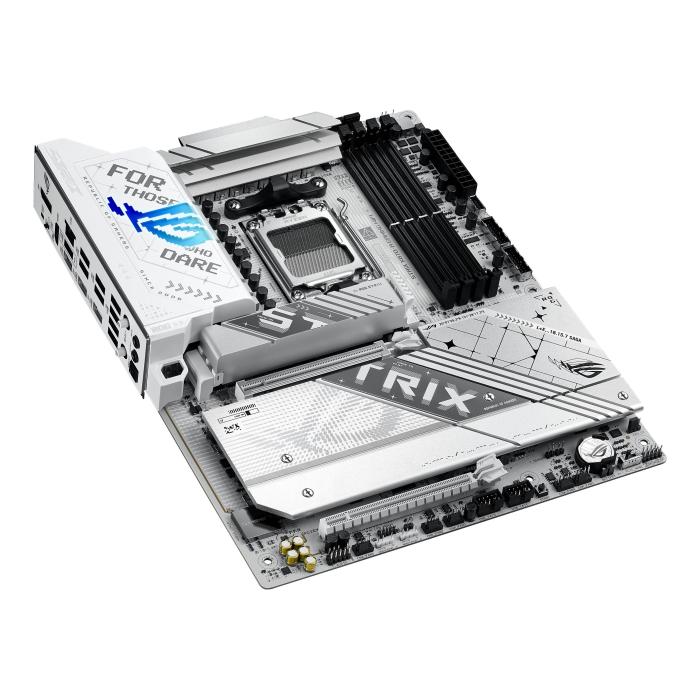

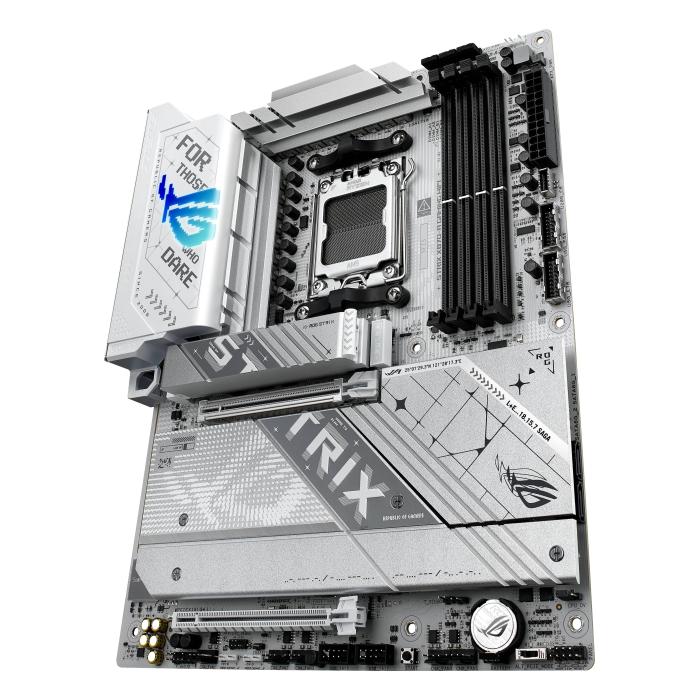

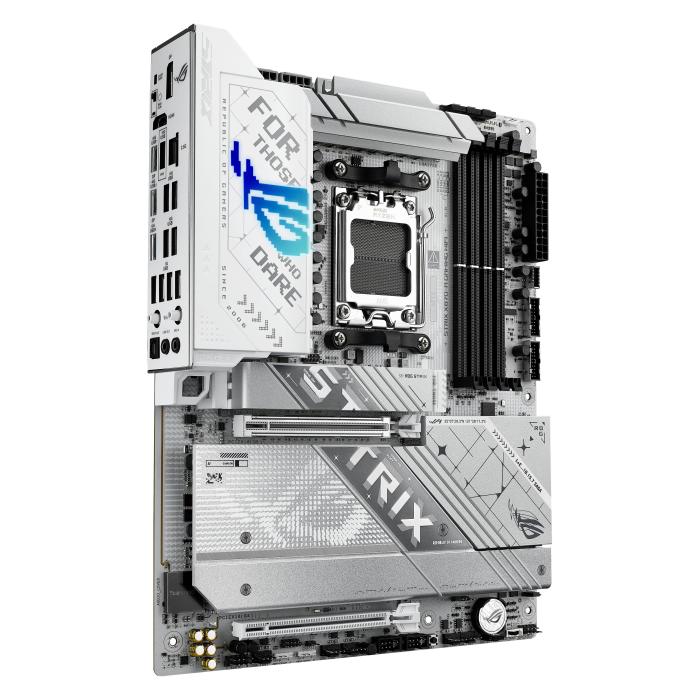

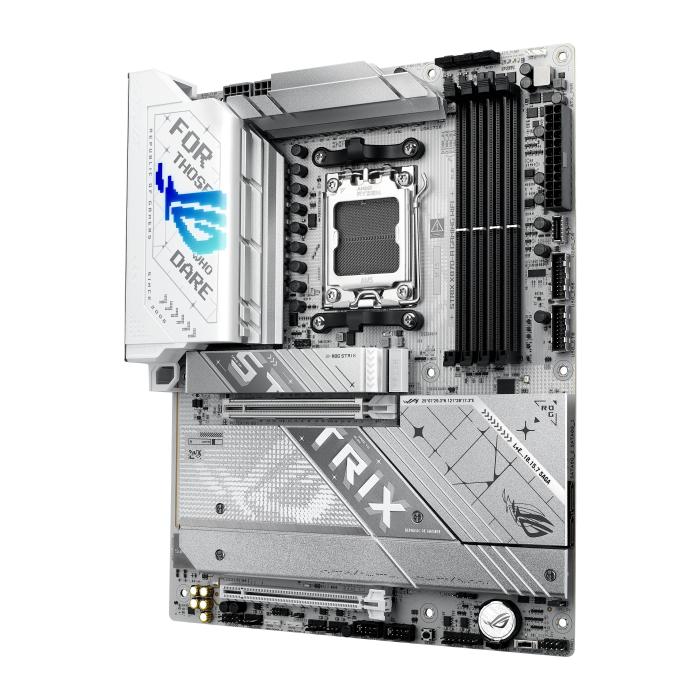

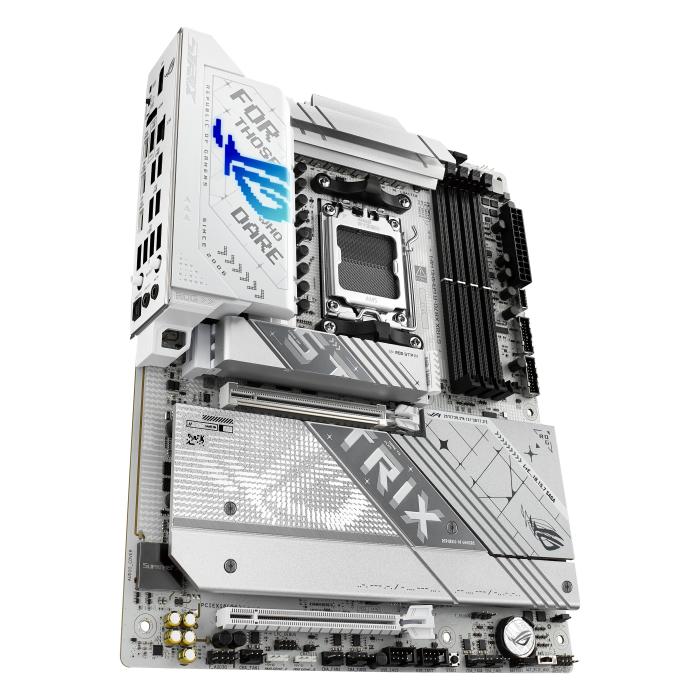

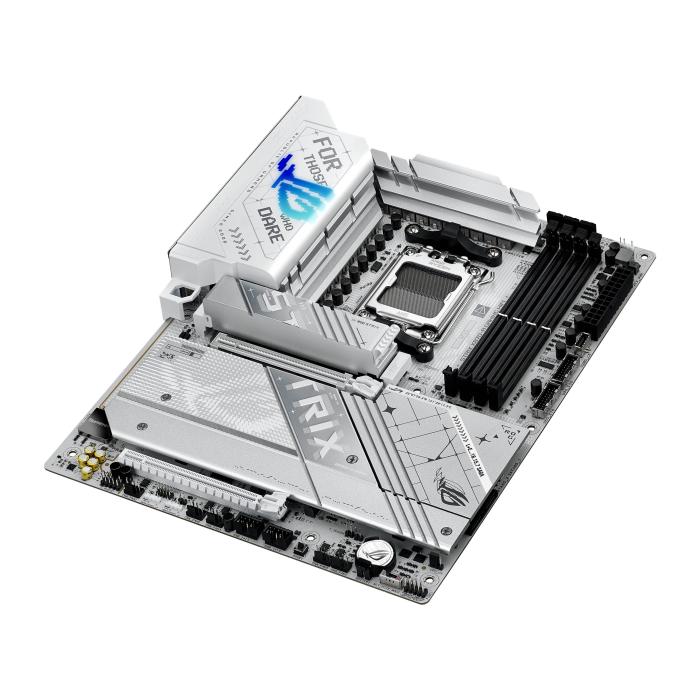

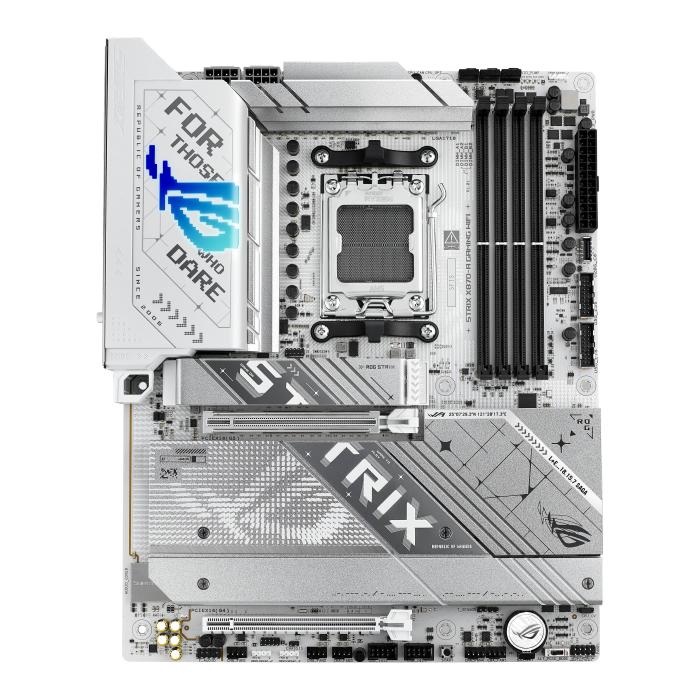

The ASUS ROG STRIX X870-A GAMING WIFI motherboard is an ATX model with AM5 socket, so it is ready for AMD processors compatible with that socket. It incorporates four DIMM slots that support DDR5-SDRAM memory, with support for ECC and non-ECC modules, unbuffered memory and a maximum capacity of 192 GB in dual channel configuration. In the storage section it offers compatibility with six drives between HDD and SSD, via M.2 and SATA III interfaces, and includes RAID support at levels 0, 1, 10 and 5. Its format is completed with a weight of 1.84 kg, an aluminium colour and dimensions of 305 x 50 x 244 mm (width x height x depth), which is worth bearing in mind before installing it in the case.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
Memory
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 192 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 2
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10, 5
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 5
- Chassis intrusion connector: Yes
- 12V power connector: Yes

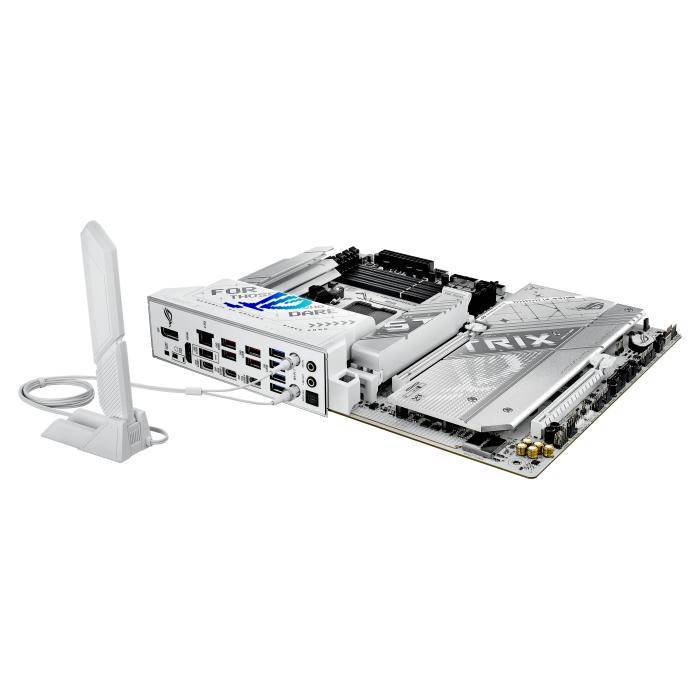

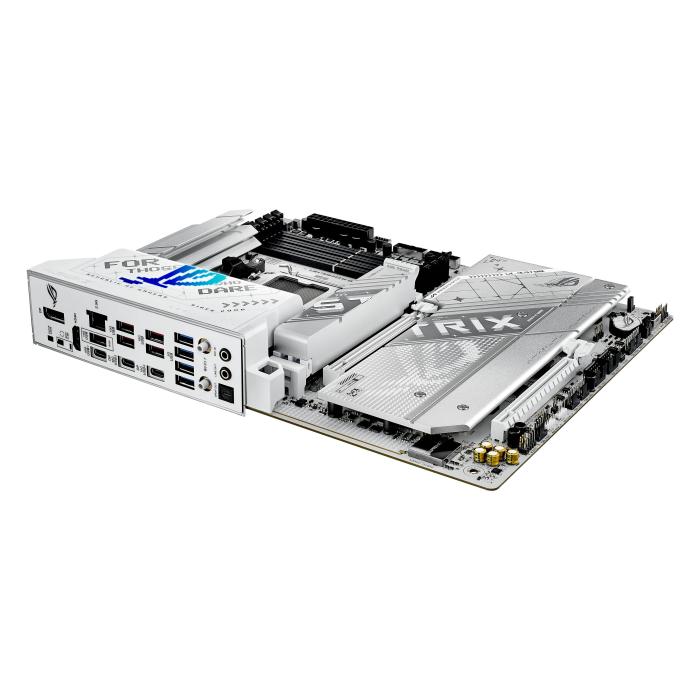

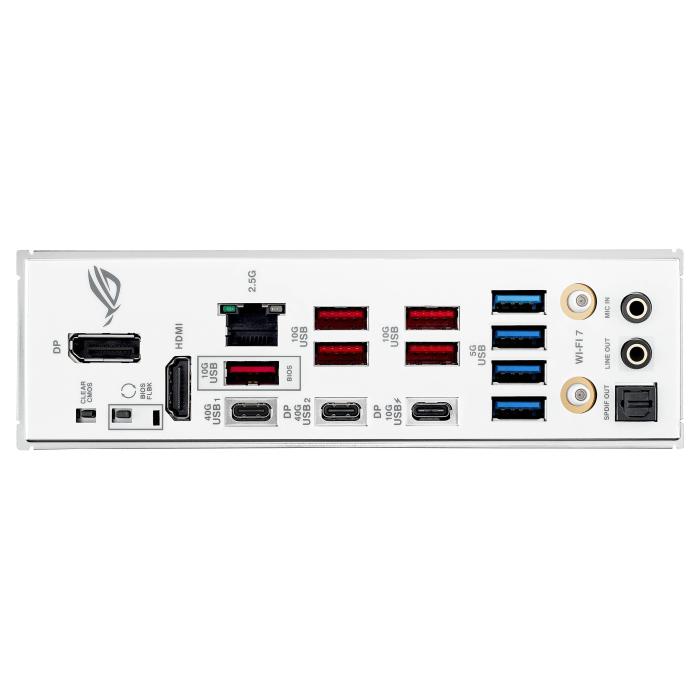

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB4 Gen 2x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
- S/PDIF out port: Yes
- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870
- Audio chip: Realtek ALC4080
- Audio output channels: 7.1 channels
- Product colour: Aluminium
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 4
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS button: Yes
Packaging data
- Package width: 353 mm
- Package depth: 273 mm
- Package height: 68 mm
- Package weight: 2.32 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 50 mm

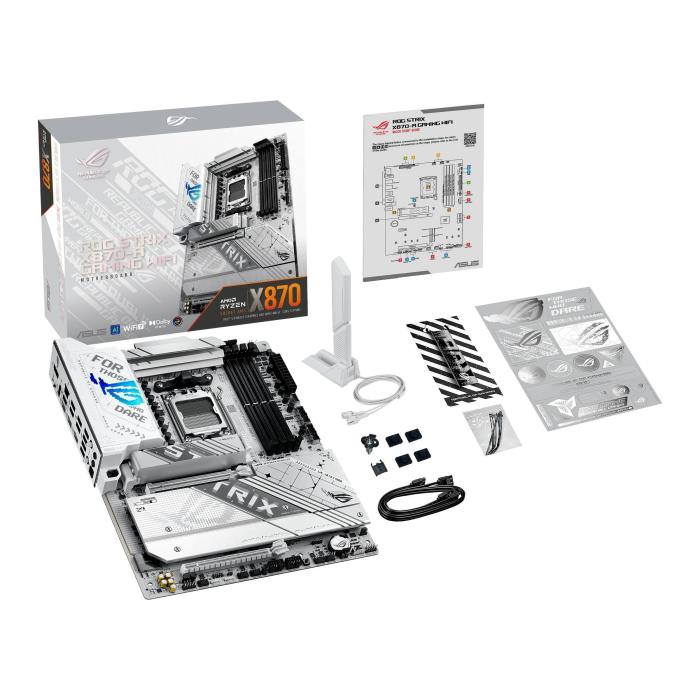

Packaging content
- Cables included: SATA
Other features
- Weight: 1.84 kg
