Description

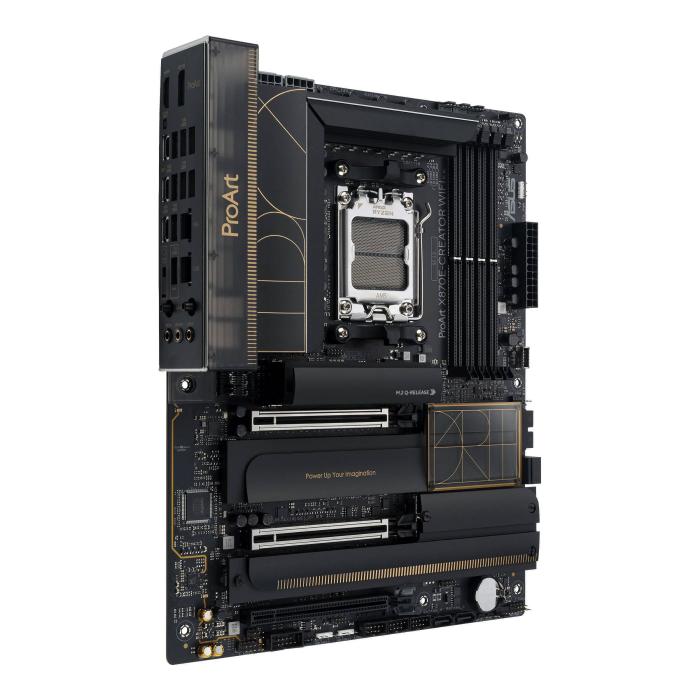

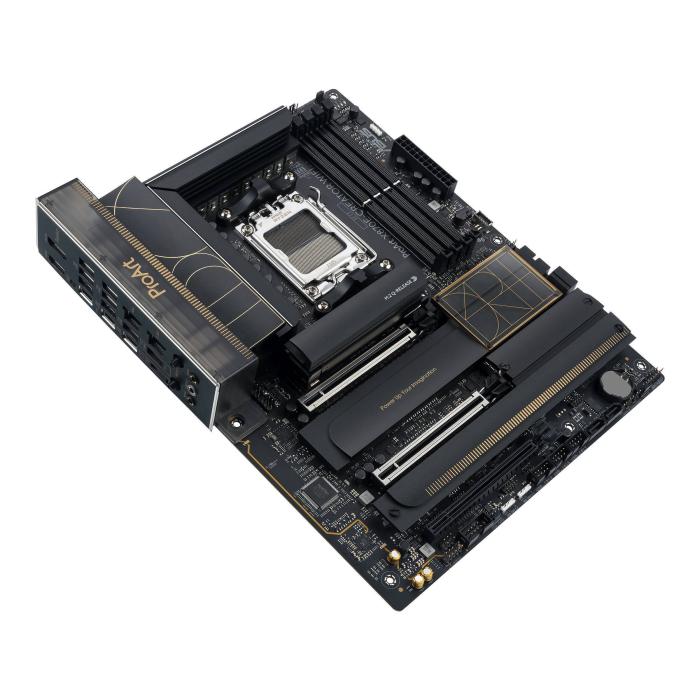

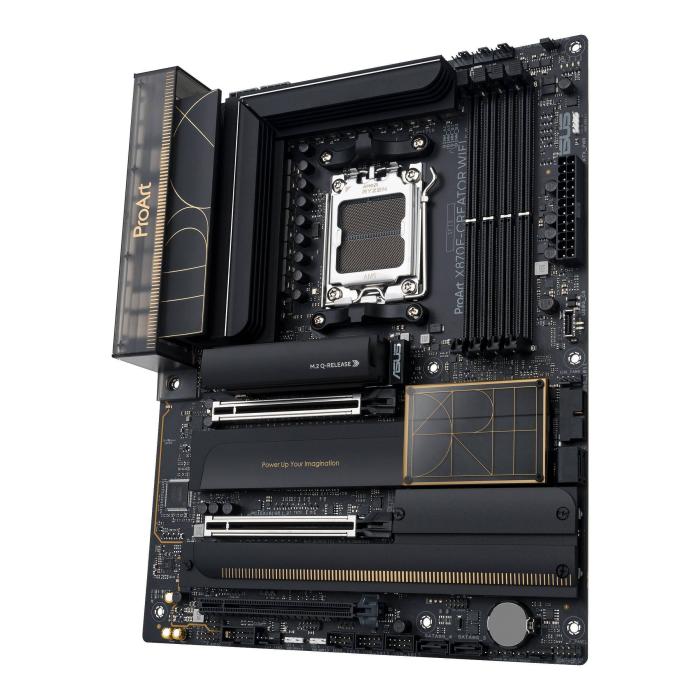

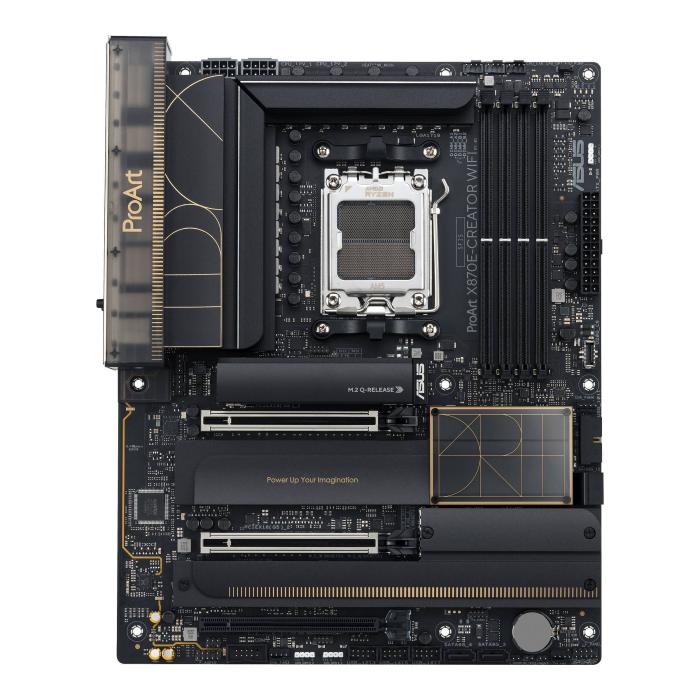

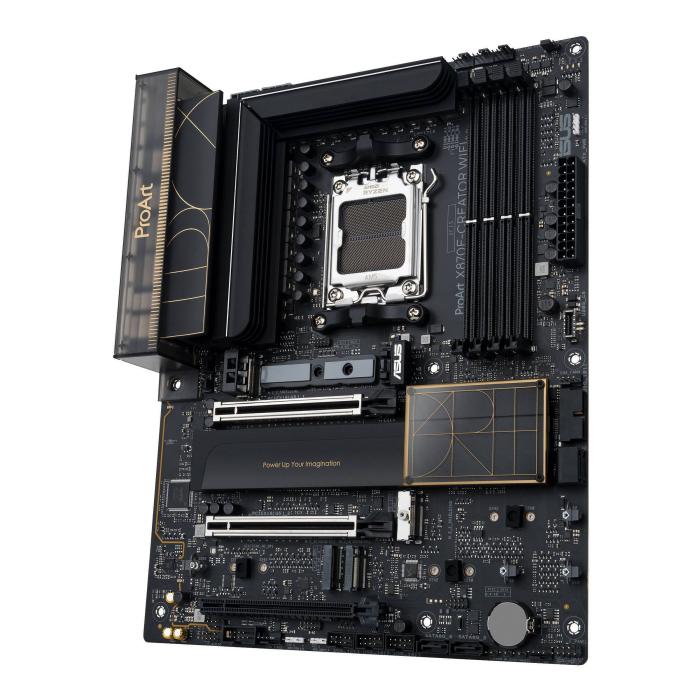

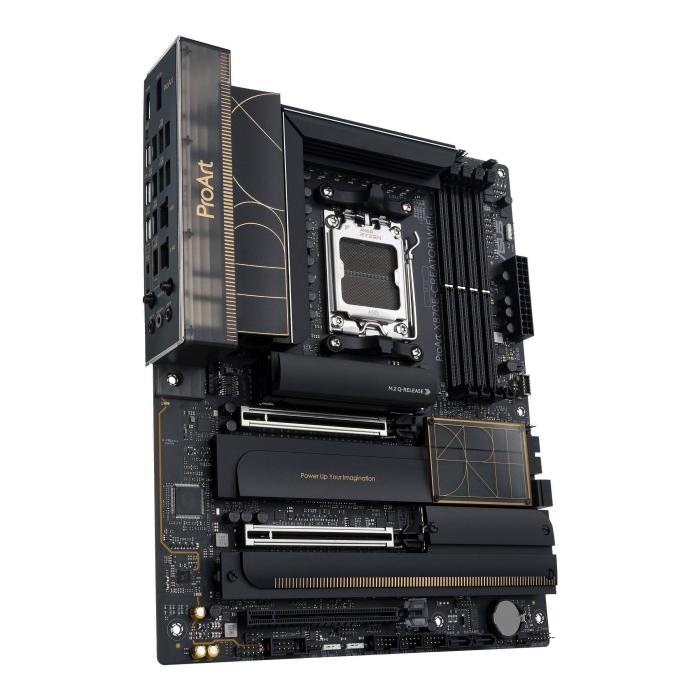

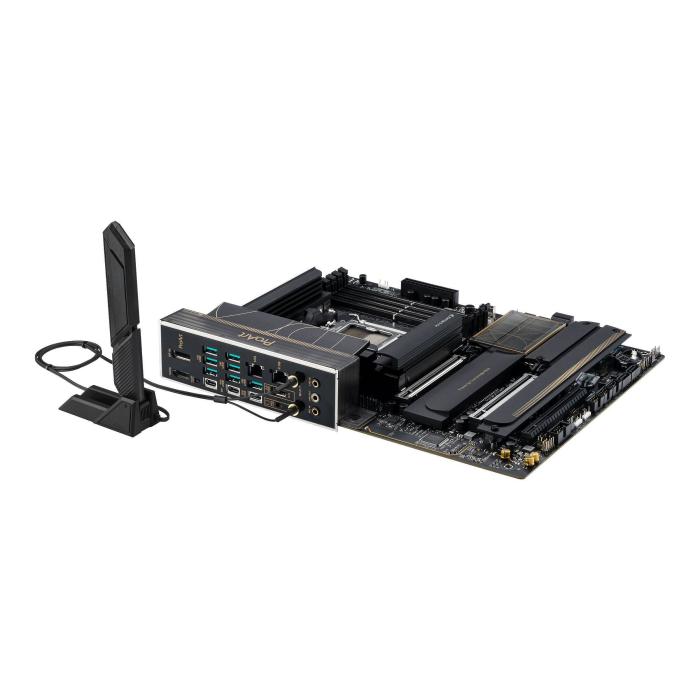

ASUS ProArt X870E-CREATOR WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 192 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 8
- RAID support: Yes
- RAID levels: 0, 1, 10, 5
- Supported storage drive types: HDD & SSD
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 5
- Chassis intrusion connector: Yes
- Number of COM connectors: 1
- 12V power connector: Yes

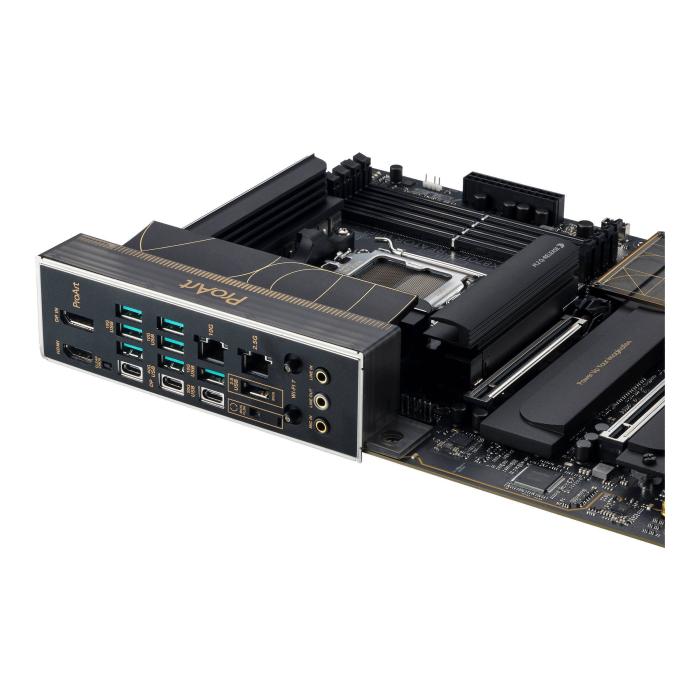

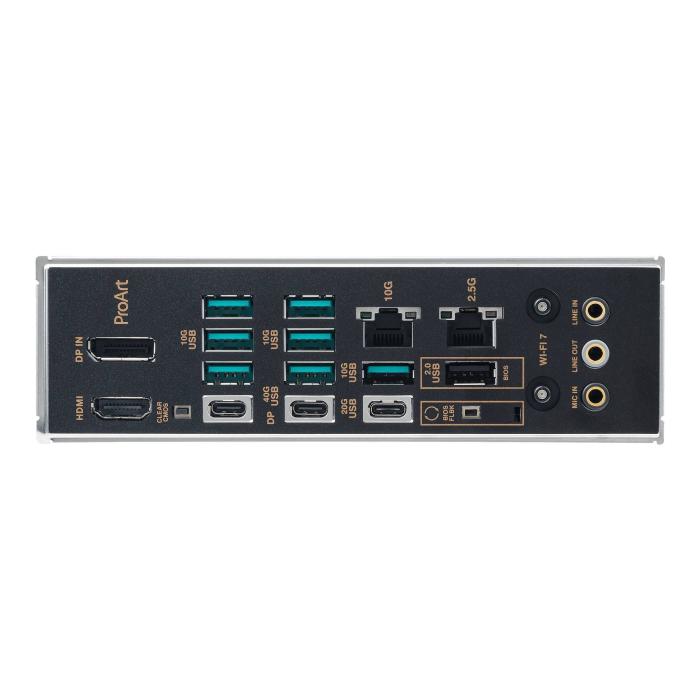

Rear panel I/O ports
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- USB4 Gen 2x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870E
- Audio chip: Realtek S1220A
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 2
- Number of M.2 (M) slots: 4
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS button: Yes
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
Packaging content
- Cables included: DisplayPort, SATA
