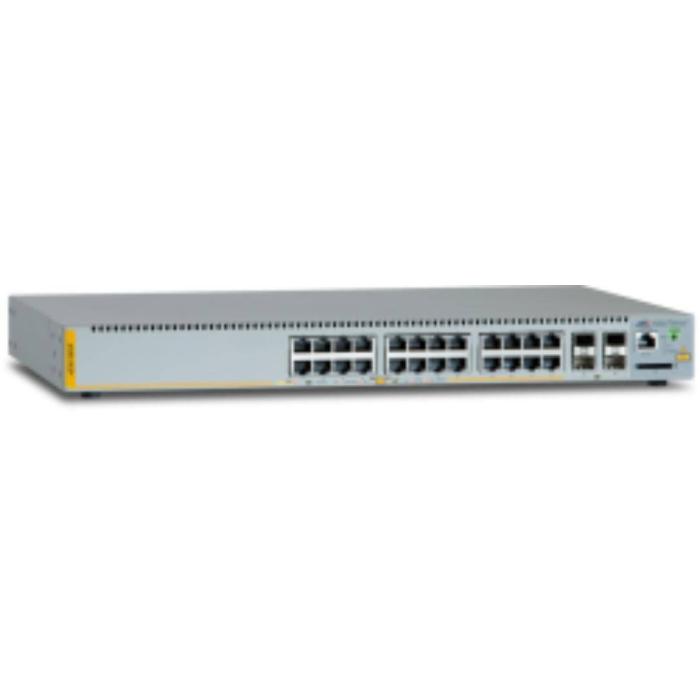

Allied Telesis AT-x230-28GP-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
More info
Brand: ALLIED TELESIS
1,216.86 €
SKU:
115057
PRC:
144734
EAN:
767035204093
PN:
990-004647-50
Description
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.11ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802
- 10G support: Yes
- Port mirroring: Yes
- Full duplex: Yes
- Policy-based routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 56 Gbit/s
- Throughput: 41.7 Mpps
- MAC address table: 16000 entries
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP server, DHCPv6 relay, DHCPv6 server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
- LED indicators: Yes
Performance
- Memory type: DDR-SDRAM
- Internal memory: 256 MB
- Flash memory: 64 MB
- Noise level: 42 dB
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 520 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 24
- Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
- Heat dissipation: 303 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 290 mm
- Height: 44 mm
- Weight: 4.7 kg
Logistics data
- Harmonized System (HS) code: 85176990
