Description

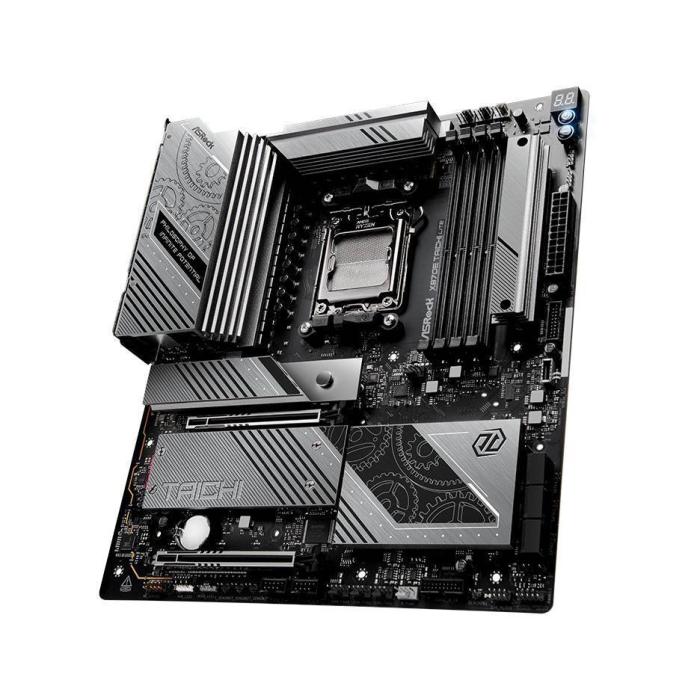

ASROCK motherboard with reference 90-MXBPA0-A0UAYZ, an AM5 socket model with AMD X870 chipset and extended ATX form factor, designed for AMD Ryzen 7000, 8000 and 9000 series processors. It offers four DIMM slots for dual-channel DDR5-SDRAM memory, supporting up to 256 GB with clock speeds up to 8000 MHz, and support for ECC and non-ECC modules. Includes RAID compatibility at levels 0 and 1, as well as support for CrossFire parallel processing, and connects up to seven storage devices, combining M.2 and SATA III interfaces, with capacity for four HDD drives. This motherboard integrates the basic features needed to build a desktop system with current components, without adding any extra elements.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speed (max): 8000 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1
Graphics
- Parallel processing technology support: CrossFire
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 6
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 4
- 12V power connector: Yes
- Number of water pump connectors: 1
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 1
Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
- USB4 Gen 2x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- Microphone in: Yes
- S/PDIF out port: Yes
- WiFi-AP antenna jack: 2
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870
- Audio chip: Realtek ALC1220
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: Extended ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Certification: FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 3.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS button: Yes
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
Packaging content
- Cables included: SATA
- Antenna included: Yes
Other features
- Back-to-BIOS button: Yes
- Number of M.2 (E) slots: 1
