Description

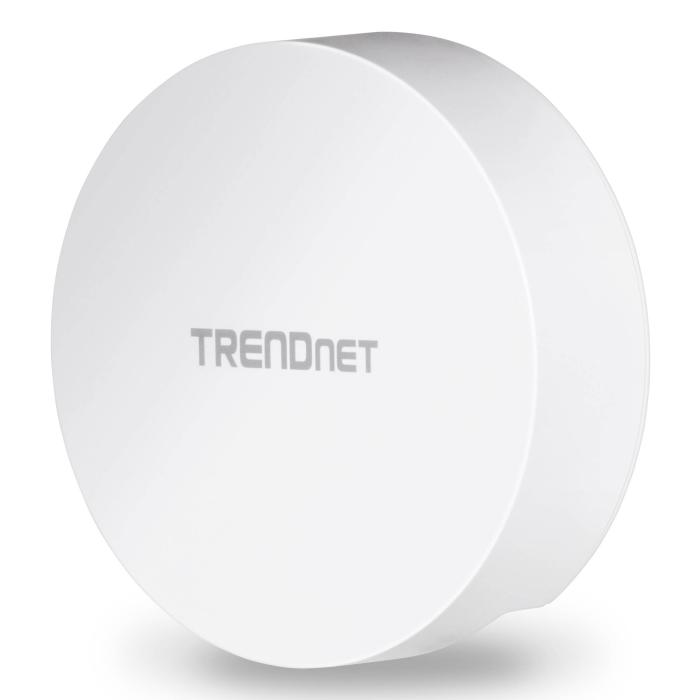

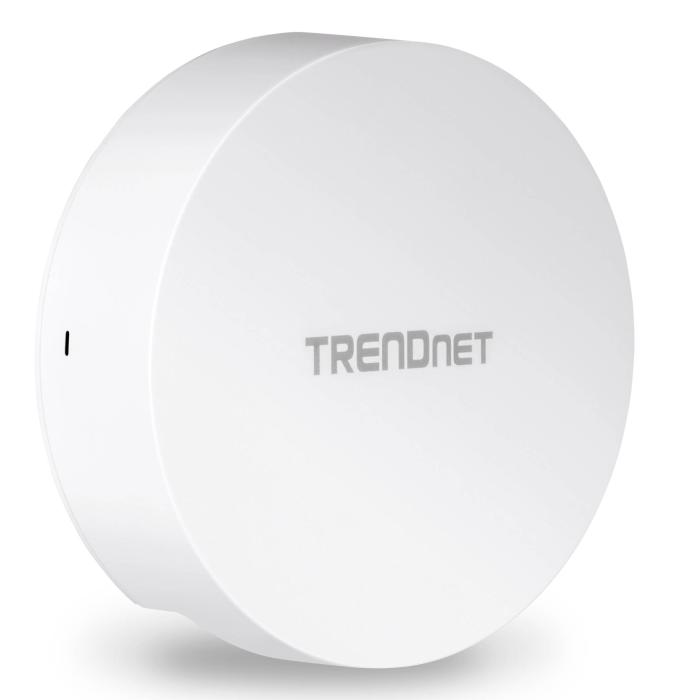

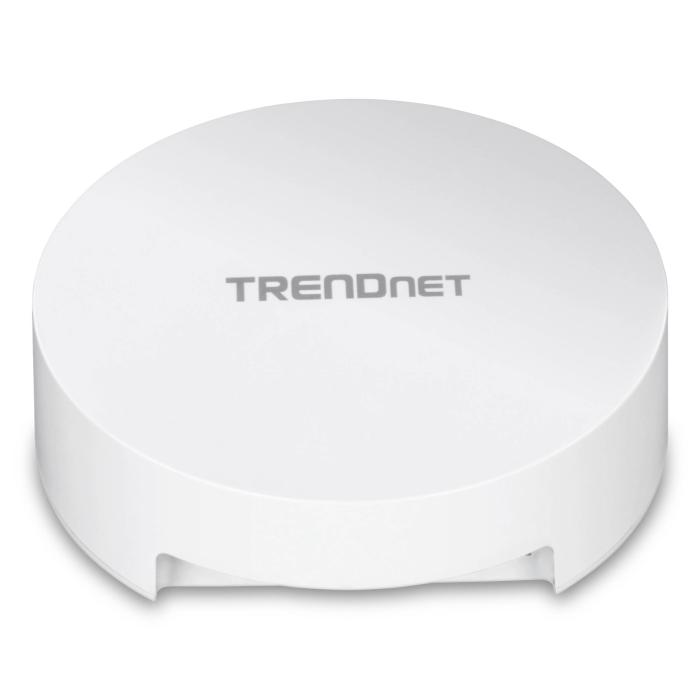

Trendnet TEW-823DAP wireless access point, white, with a total speed of 1267 Mbit/s and power over Ethernet (PoE) supply, which simplifies installation by avoiding additional power cables. It operates on the 2.4 GHz and 5 GHz bands, offering up to 400 Mbit/s and 867 Mbit/s respectively, and incorporates multi-user MIMO technology and band steering to optimise network performance. It supports up to 16 SSIDs and WPA2 and WPA3 security protocols, including personal variants, as well as web-based management and Wi-Fi scheduling. With one RJ-45 Ethernet port and a DC input, this device is suitable for extending coverage in home or small office environments.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 1267 Mbit/s
- Maximum data transfer rate (2.4 GHz): 400 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IE
- MIMO: Yes
- MIMO type: Multi User MIMO
- Band steering: Yes
- Receiver sensitivity: 802.11a: -73 dBm (typical) @ 54Mbps 802.11b: -87 dBm (typical) @ 11Mbps 802.11g: -73 dBm (typical) @ 54Mbps 802.11n (2.4 GHz): -
Security
- Security algorithms: WPA2, WPA2-Personal, WPA3-PSK, WPA3-Personal
- Number of SSID supported: 16
Protocols
- Universal Plug and Play (UPnP): Yes
Management features
- Web-based management: Yes
- Access point management: Wi-Fi schedule

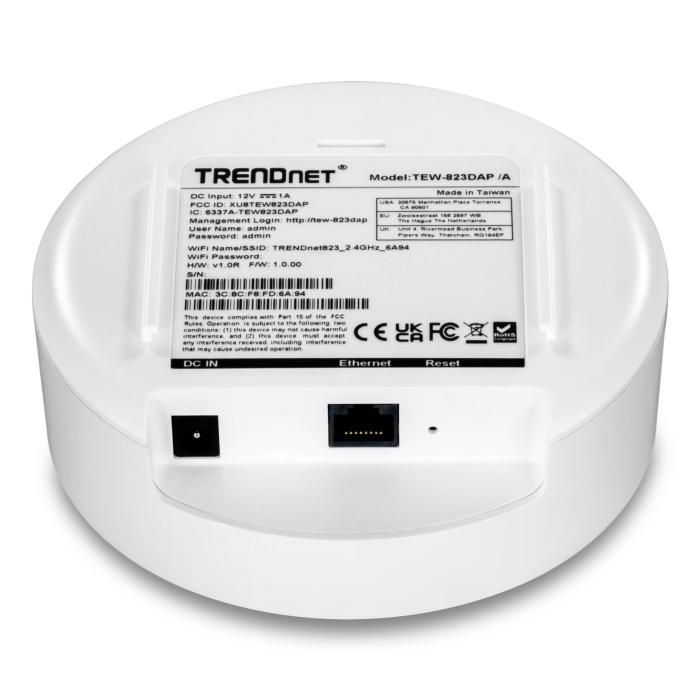

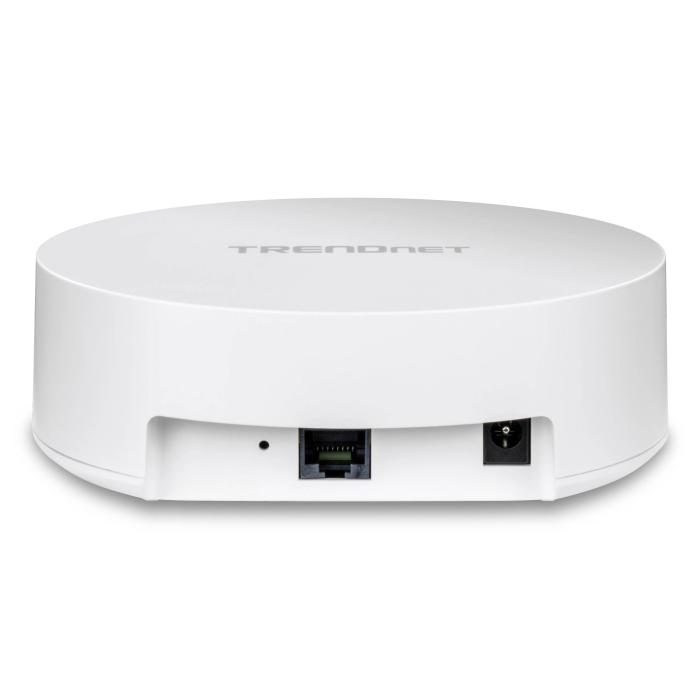

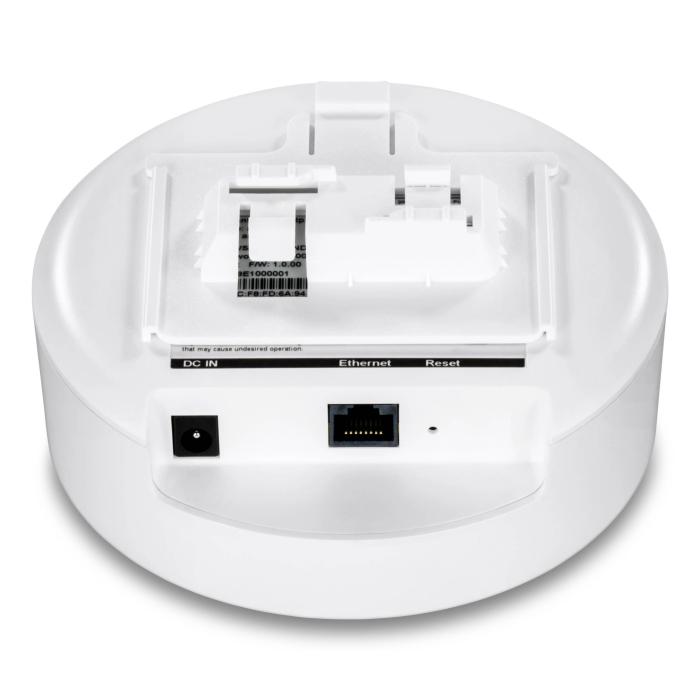

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 11.9 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Reset button: Yes
- LED indicators: Yes
Antenna
- Antenna type: Internal
Certificates
- Certification: CE FCC IC
Weight & dimensions
- Width: 130 mm
- Depth: 130 mm
- Height: 46 mm
- Weight: 188 g
Packaging content
- Quantity per pack: 1 pc(s)
- Cables included: LAN (RJ-45)
- Quick start guide: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
