Description

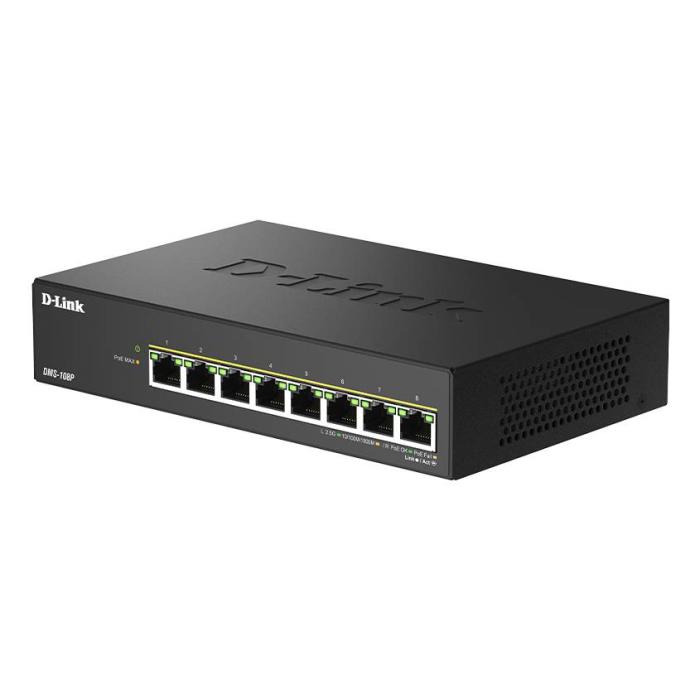

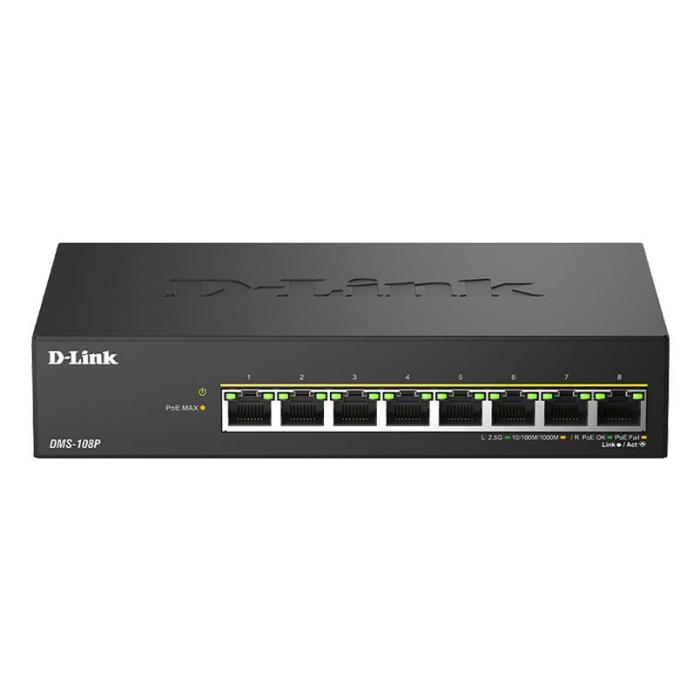

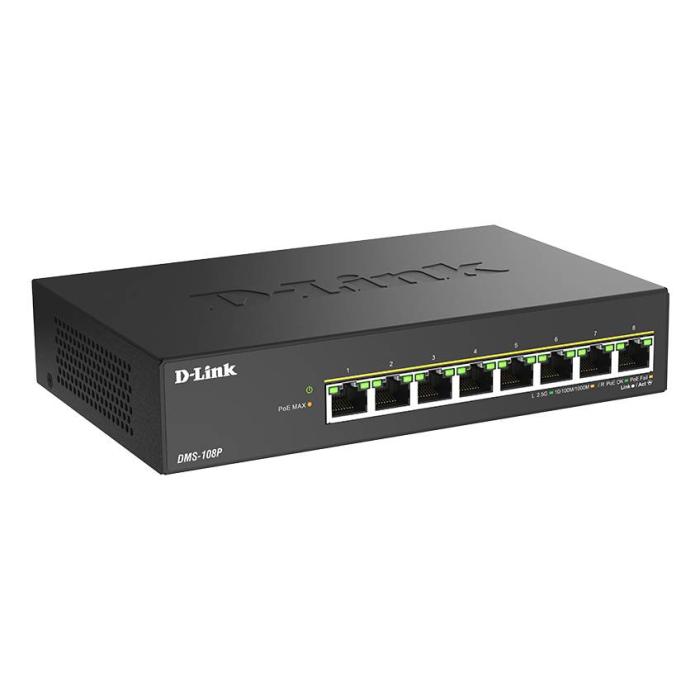

The D-Link DMS-108P/E switch is an unmanaged device in black with eight basic RJ-45 Ethernet 2.5G Ethernet (100/1000/2500) switching ports. It offers data transfer speeds of 10, 100, 1000 and 2500 Mbit/s, with Auto MDI/MDI-X function and power supply via DC input jack. It includes QoS support and traffic classification, and complies with the IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u and IEEE 802.3x standards. Its switching capacity reaches 40 Gbit/s, with a forwarding rate of 29.76 Mpps and store-and-forward mode, as well as a MAC address table of 4000 entries. It is stackable and includes LED indicators. With dimensions of 190 x 38 x 120 mm (width x height x depth) and a weight of 753 g, it is a compact option for expanding the network with high-speed ports.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Traffic classification: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)

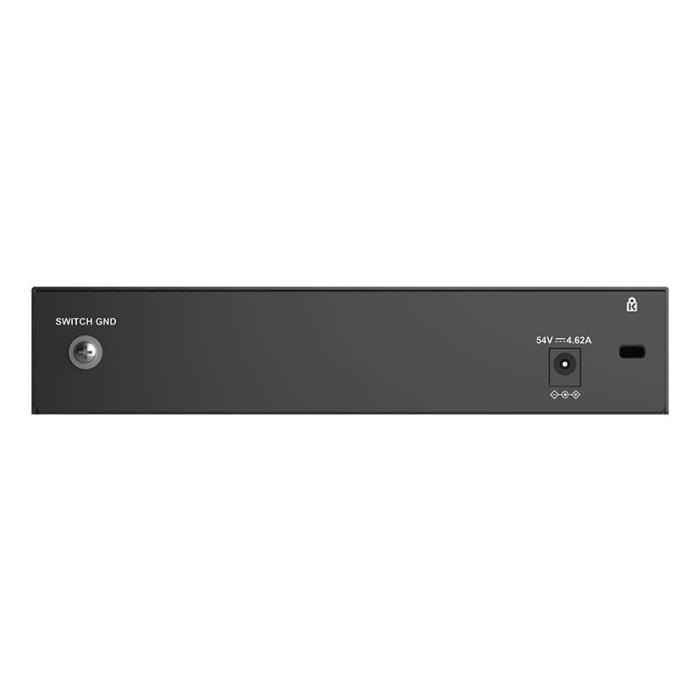

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Data transmission
- Switching capacity: 40 Gbit/s
- Forwarding rate: 29.76 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
Design
- Stackable: Yes
- Product colour: Black
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 140688261 h
Power
- Power source: DC
- Power supply included: Yes
- DC input voltage: 54 V
- Input current: 4.62 A
- Power consumption (max): 261.02 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 8
- Power over Ethernet (PoE) power per port: 90 W
- Total Power over Ethernet (PoE) budget: 290 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 890.6 BTU/h
Weight & dimensions
- Width: 190 mm
- Depth: 120 mm
- Height: 38 mm
- Weight: 753 g
Certificates
- Certification: CB; UL; LVD; FCC; VCCI; IC; BSMI
