Description

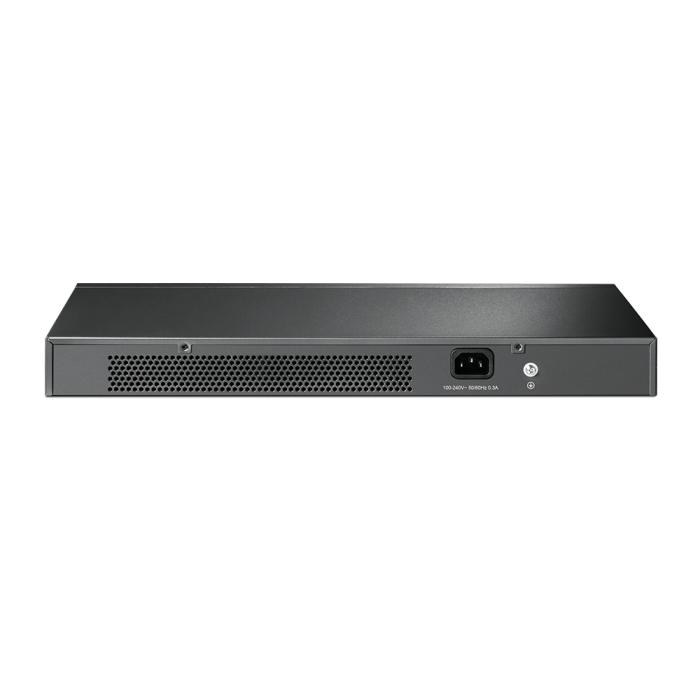

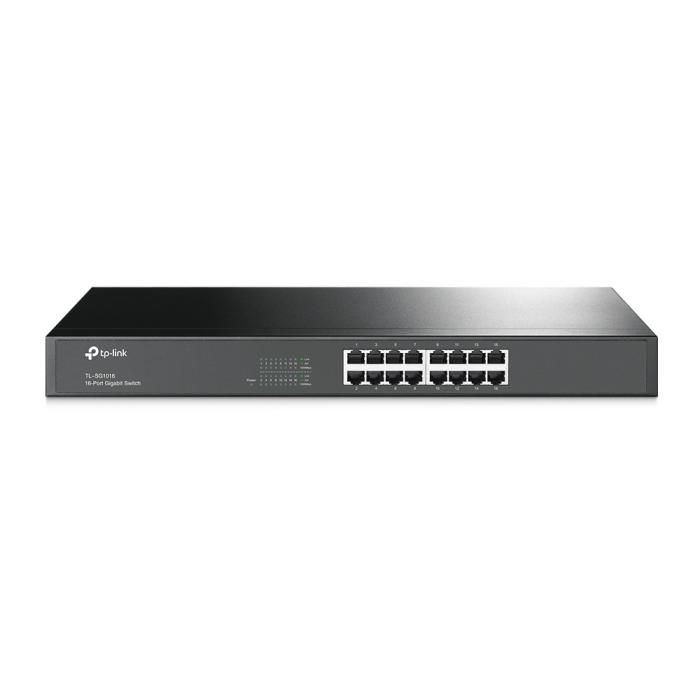

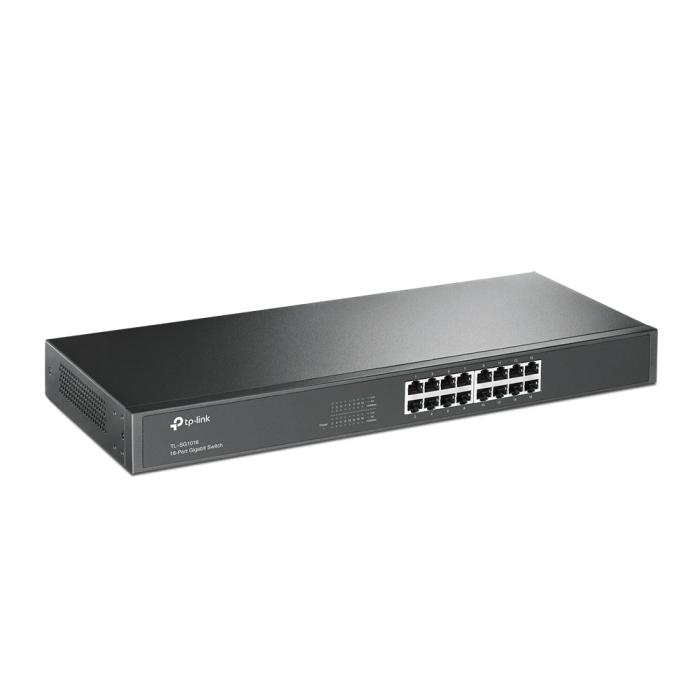

The TP-Link TL-SG1016 switch is an unmanaged device in black with 16 Gigabit Ethernet (10/100/1000) RJ-45 ports, presented in a 1U format with dimensions of 440 x 44 x 180 mm (width x height x depth). It features a switching capacity of 32 Gbit/s and a MAC address table of 8000 entries, which allows it to manage the traffic of a home or small office network smoothly. It supports auto-negotiation, Auto MDI/MDI-X, flow control and full-duplex and half-duplex transmission, as well as 10BASE-T, 100BASE-TX and 1000BASE-T cabling technologies. It is compatible with Cat3, Cat4, Cat5 and Cat5e cables, and complies with the IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u and IEEE 802.3x standards. The store-and-forward function speeds up packet forwarding, while QoS support allows sensitive traffic to be prioritised.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 16
- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- Forwarding rate: 23.8 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 10000
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
Performance
- Compatible operating systems: Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
- Maximum cable length: 100 m
- Fanless: Yes
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 10.44 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 35.6 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Package width: 250 mm
- Package depth: 528 mm
- Package height: 80 mm
- Package weight: 2.04 kg
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Logistics data
- Harmonized System (HS) code: 85176990
