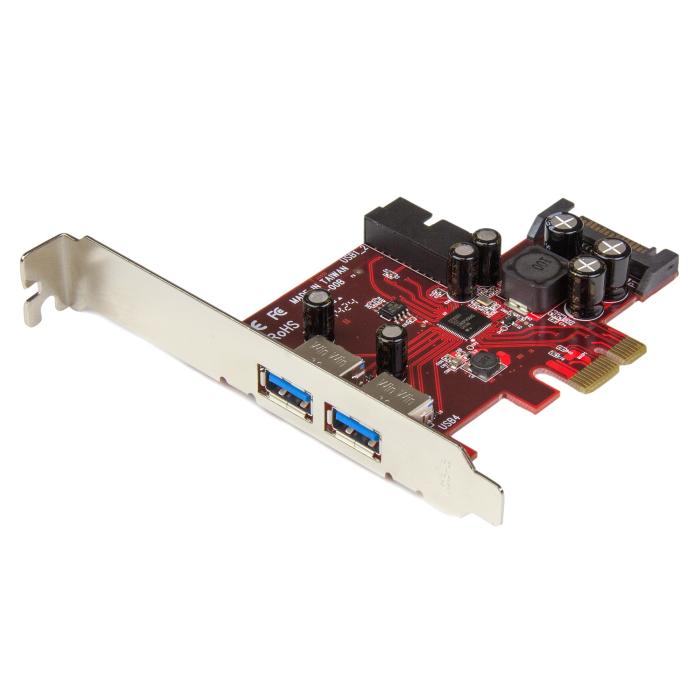

StarTech.com 4 Port PCI Express USB 3.0 Card - 2 External & 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers
More info
Brand: STARTECH.COM
40.32 €
33.88 €
without VAT
Get it
on the
August 12
/
August 17
SKU:
74193
PRC:
63692
EAN:
65030860338
PN:
PEXUSB3S2EI
Description
StarTech.com 4 Port PCI Express USB 3.0 Card - 2 External u0026 2 Internal - SATA Power - UASP Support - 2x Internal (IDC) Motherboard-Style Headers, PCIe, SATA, USB 3.2 Gen 1 (3.1 Gen 1), Full-height / Low-profile, PCI 2.0, Metallic, Red, 3 m
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: SATA, USB 3.2 Gen 1 (3.1 Gen 1)
- Expansion card form factor: Full-height / Low-profile
- Expansion card standard: PCI 2.0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Internal SATA ports quantity: 1
Design
- Internal: Yes
- Product colour: Metallic, Red
- Maximum cable length: 3 m
- Mean time between failures (MTBF): 1920042 h
Features
- Chipset: Renesas / NEC - µPD720201
- Data transfer rate (max): 5 Gbit/s
- UASP support: Yes
Operational conditions
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 20 - 80%
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
- Compliance certificates: CE, RoHS
Weight & dimensions
- Width: 18 mm
- Depth: 92 mm
- Height: 120 mm
- Weight: 53 g
Packaging data

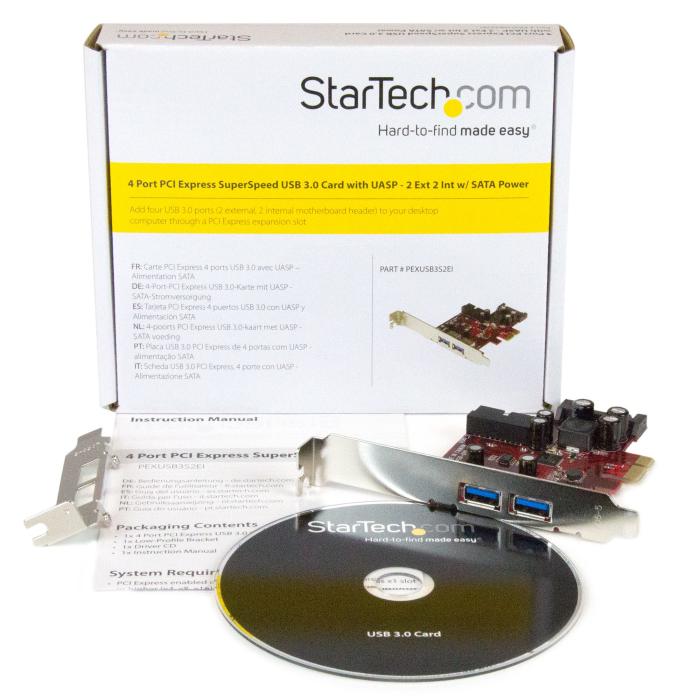

- Mounting brackets included: Yes
- Drivers included: Yes
- Manual: Yes
- Package width: 174 mm
- Package depth: 143 mm
- Package height: 33 mm
- Package weight: 143 g
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 383 mm
- Master (outer) case length: 495 mm
- Master (outer) case height: 316 mm
Other features
- Maximum operating distance: 3 m
