Description
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel Atom®
- Processor model: x6425RE
- Processor cores: 4
- Processor threads: 4
- Processor frequency: 1.9 GHz
Memory
- Internal memory: 8 GB
- Maximum internal memory: 32 GB
- Internal memory type: DDR4-SDRAM
- Memory layout (slots x size): 1 x 8 GB
- Memory slots: 2x SO-DIMM
- Memory clock speed: 3200 MHz
Storage
- Total storage capacity: 256 GB
- Storage media: SSD
- Optical drive type: No
- Total SSDs capacity: 256 GB
- Number of SSDs installed: 1
- SSD capacity: 256 GB
- SSD interface: PCI Express 4.0
- NVMe: Yes
- SSD form factor: M.2
Graphics
- Discrete graphics card: No
- On-board graphics card: Yes
- Discrete graphics card model: Not available
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel® UHD Graphics
- On-board graphics card model: Intel® UHD Graphics
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 2500 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: Wi-Fi 6 (802.11ax)
- Antenna type: 2x2
- Bluetooth: Yes
- Bluetooth version: 5.1

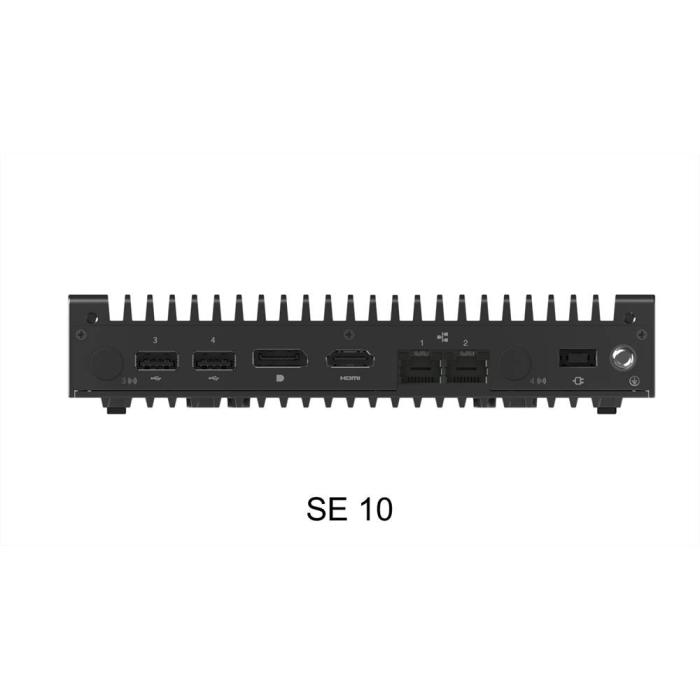

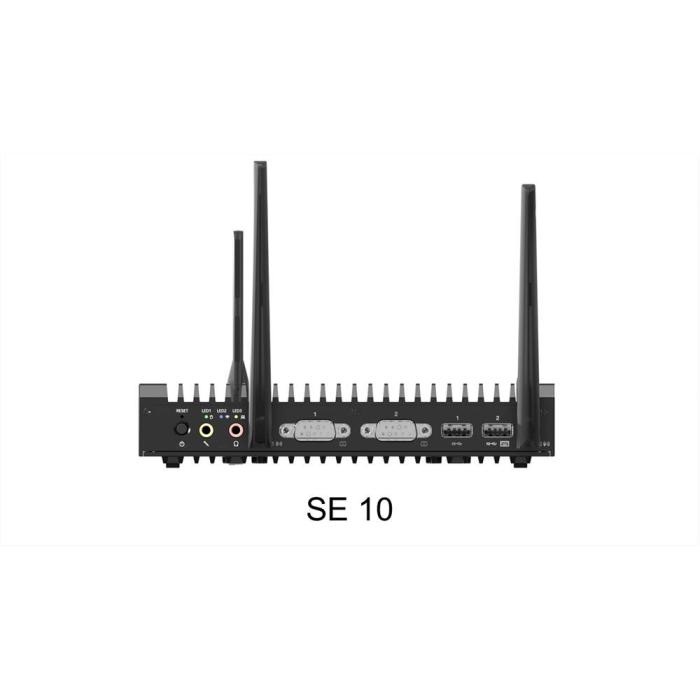

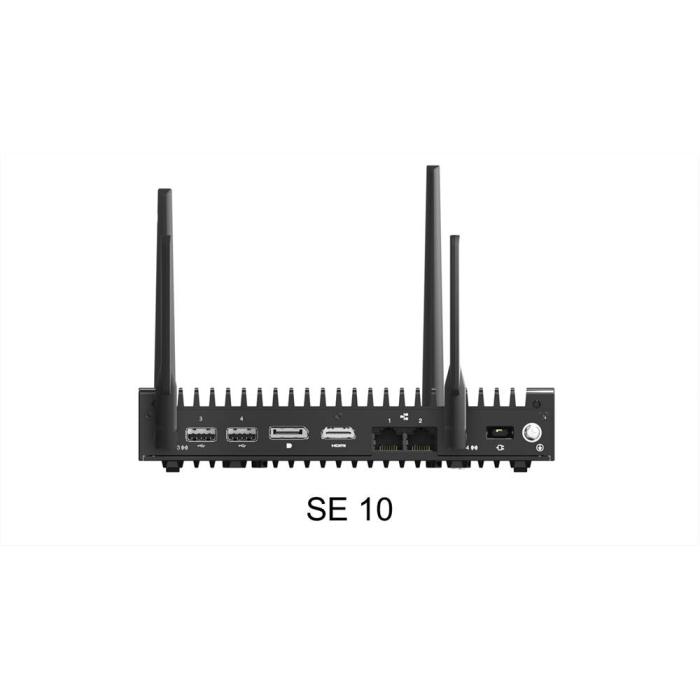

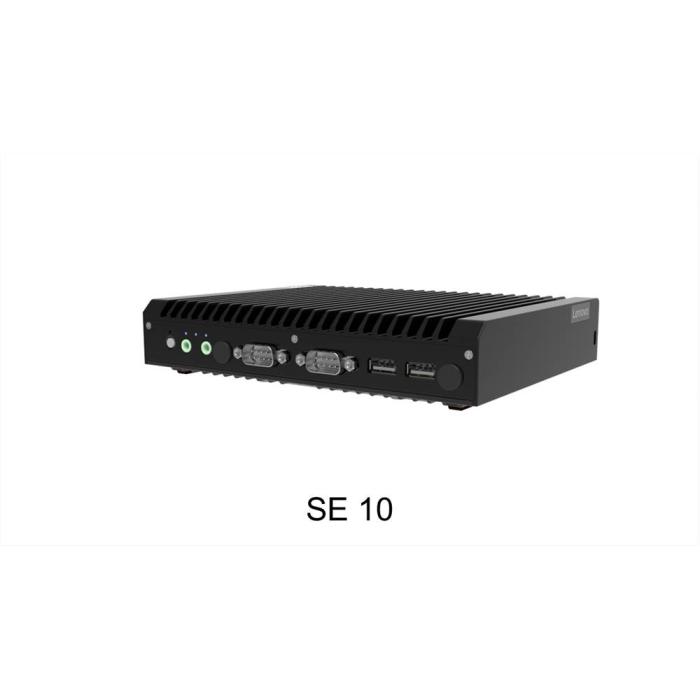

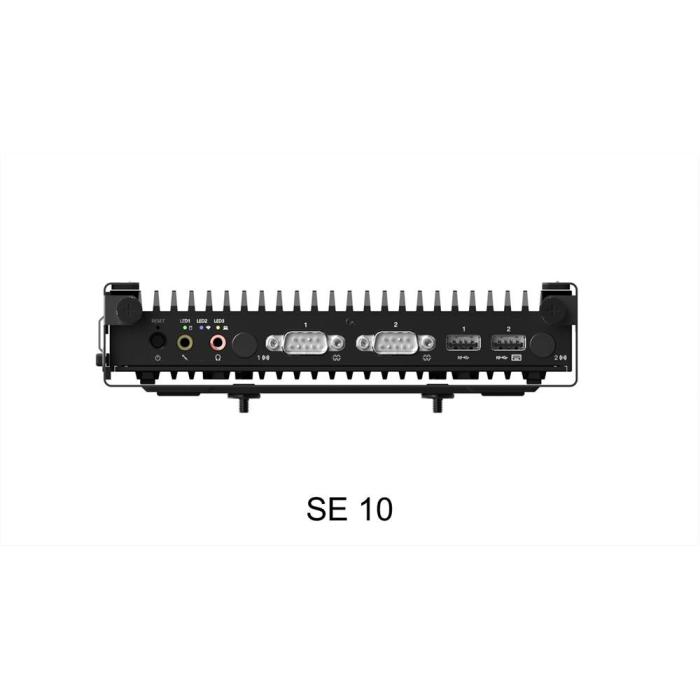

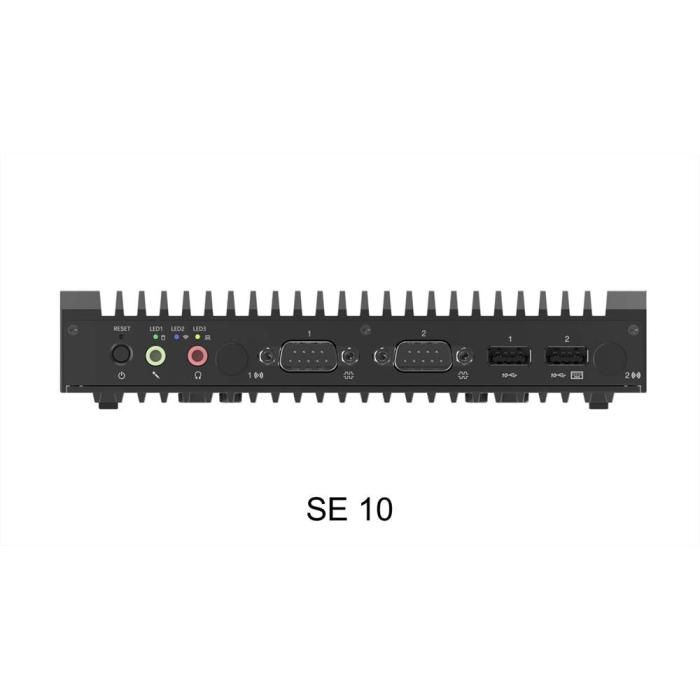

Ports & interfaces
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- HDMI ports quantity: 1
- HDMI version: 1.4b
- DisplayPorts quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Microphone in: Yes
- Line-out: Yes
- Serial ports quantity: 2

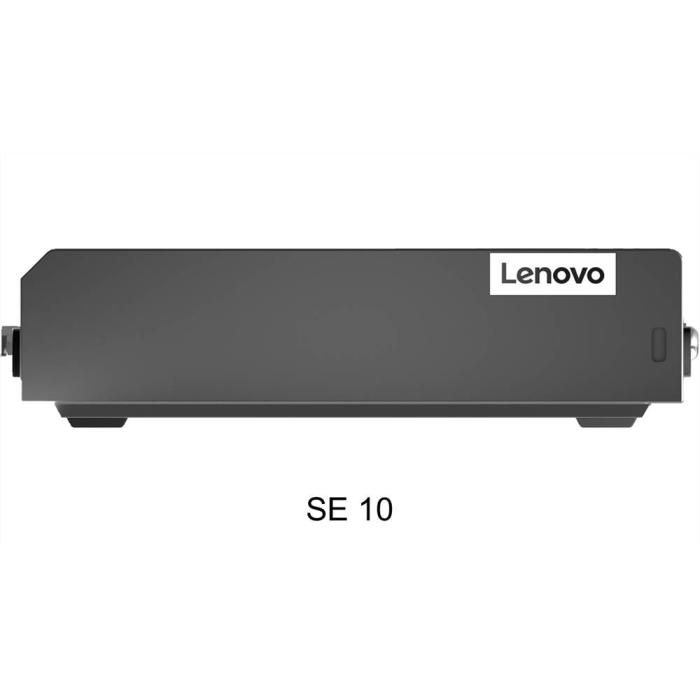

Design
- Chassis type: Mini PC

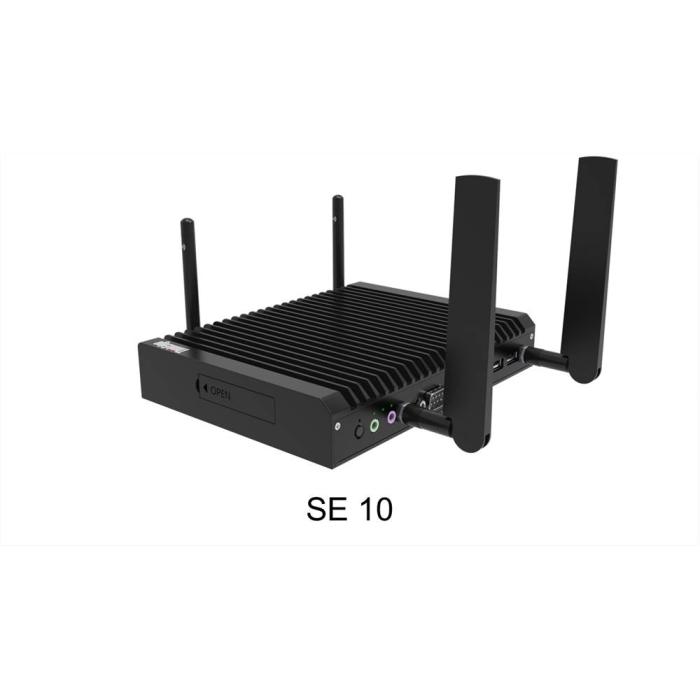

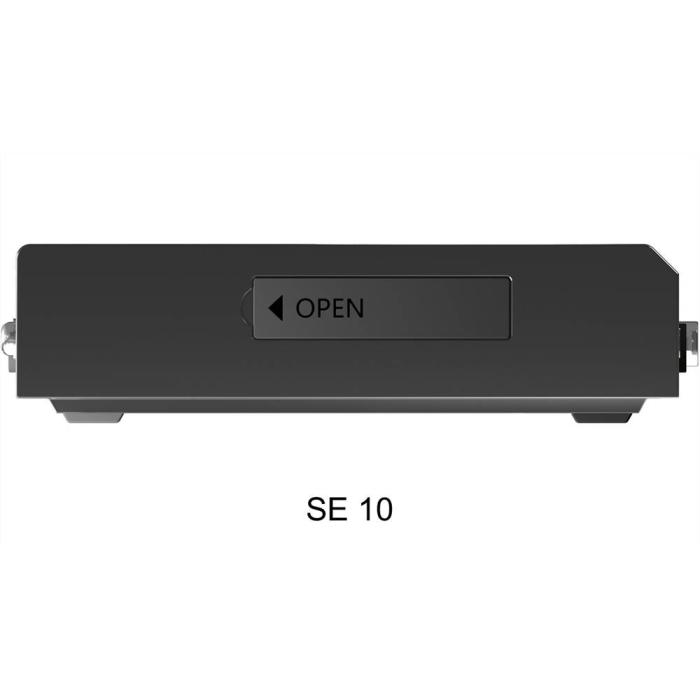

- Colour name: Black (SE10)
- Volume: 0.8 L

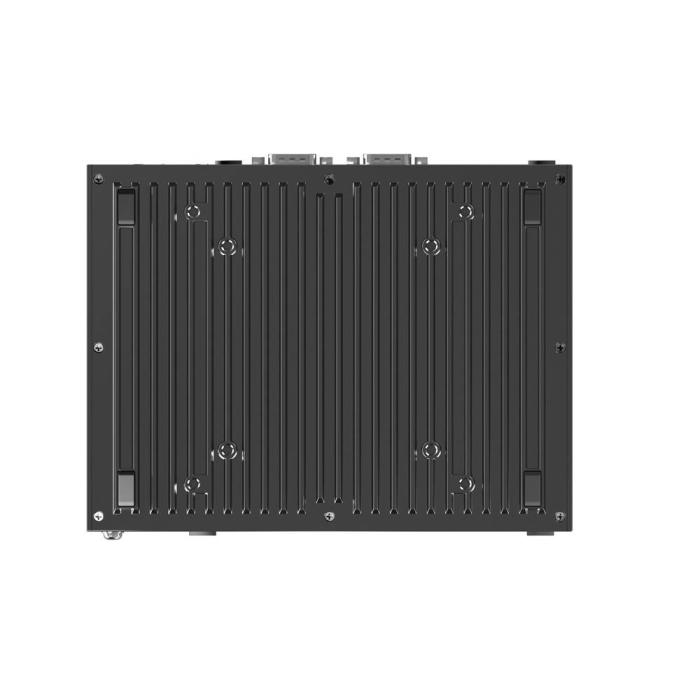

- VESA mounting: Yes
- Product colour: Black
Performance
- Motherboard chipset: Intel SoC
- Trusted Platform Module (TPM): Yes
- Product type: Mini PC
Software
- Operating system installed: Windows 10 IoT Enterprise
- Operating system architecture: 64-bit
- Operating system language: Spanish
Power
- Power supply: 65 W
- Power supply input voltage: 100 - 240 V
- Power supply input frequency: 50/60 Hz
Operational conditions
- Operating temperature (T-T): 10 - 35 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 90%
- Operating altitude: 0 - 3048 m
- Non-operating altitude: 0 - 12192 m
Certificates
- Compliance certificates: RoHS
- Certification: RoHS
Weight & dimensions
- Width: 179 mm
- Depth: 135 mm
- Height: 34.5 mm
- Weight: 1.5 kg
Packaging content
- Mouse included: No
- Keyboard included: No
Display
- Display included: No
Technical details
- Box contents: IP50 Dust Cover Kits
