Description

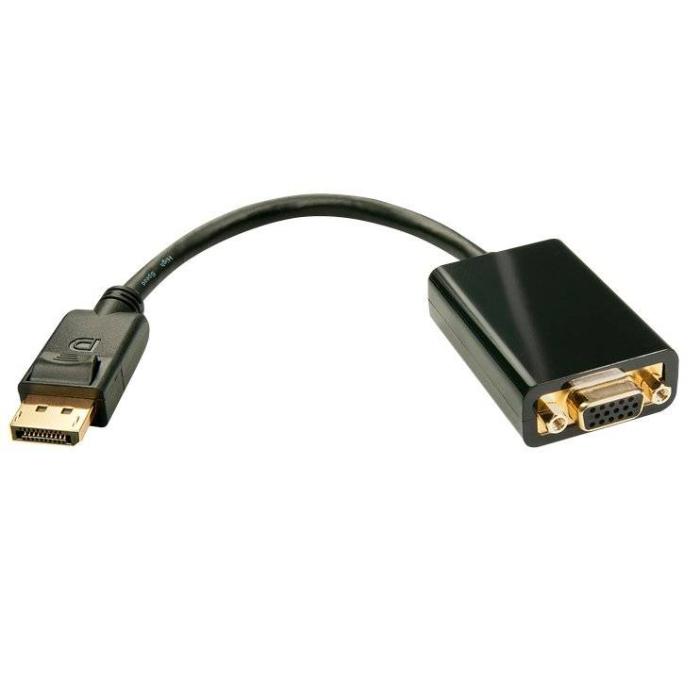

Lindy DisplayPort 1.2 to VGA Active Converter, 0.15 m, VGA (D-Sub), DisplayPort, Male, Female, Straight
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Cable length: 0.15 m
- Connector 1: VGA (D-Sub)
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Female
- DisplayPort version: 1.2
- Maximum resolution: 1920 x 1080 pixels
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Data transfer rate: 10.8 Gbit/s
- Maximum refresh rate: 60 Hz
- Bend radius (min): 7 cm
- Product colour: Black
- Chipset: ANX9833
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Thermoplastic elastomer (TPE)
- Plug and Play: Yes
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 20 - 90%
Certificates
- Certification: CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
- Cable diameter: 6.5 mm
- Connector 1 dimensions (WxDxH): 38 x 61 x 17 mm
- Connector 2 dimensions (WxDxH): 20 x 36 x 11 mm
- Weight: 45 g
Packaging data
- Package width: 160 mm
- Package depth: 20 mm
- Package height: 160 mm
- Package weight: 49 g
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
