Description

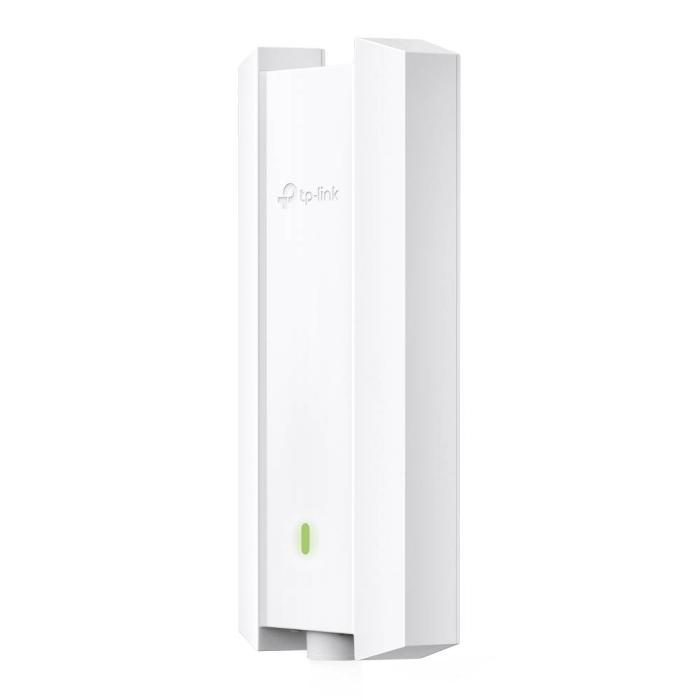

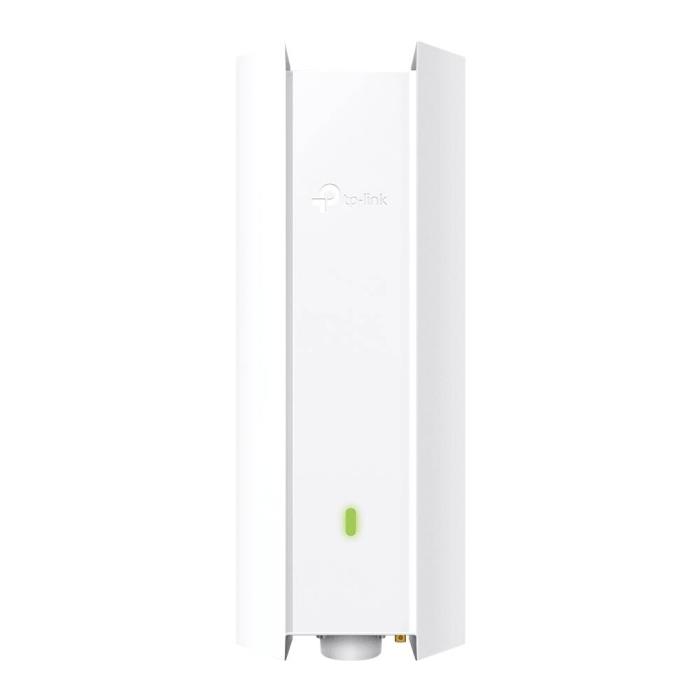

The TP-Link Omada EAP623-Outdoor HD access point comes in white with dimensions of 280.4 x 56.8 x 106.5 mm, designed to deploy WiFi coverage outdoors. It operates in the 2.4 - 5 GHz frequency band and reaches a maximum data transfer speed of 1800 Mbit/s, split between 574 Mbit/s on the 2.4 GHz band and 1201 Mbit/s on the 5 GHz band. It incorporates MIMO and Multi User MIMO to serve several clients at once, as well as BeamForming to direct the signal towards each device. Band steering and automatic channel selection, together with the automatic channel scanner, distribute clients between the two bands and choose the least congested frequency. It adds VLAN support, QoS quality of service, rate limiting and ATF connection fairness to prioritise critical traffic and distribute bandwidth fairly.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 1800 Mbit/s
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- Maximum data transfer rate (5 GHz): 1201 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.4 - 5 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Cabling technology: 10/100/1000Base-T(X)
- Number of users: 1020 user(s)
- Automatic channel selection: Yes
- Automatic channel scanning: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- VLAN support: Yes
- Rate limiting: Yes
- Band steering: Yes
- Airtime Fairness (ATF): Yes
- Quality of Service (QoS) support: Yes
- BeamForming: Yes
- Transmitting power (CE): < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
- Transmitting power (FCC): < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
Security
- Security algorithms: SNMP, SNMPv2, SNMPv3, SSH
- MAC address filtering: Yes
- Remote Authentication Dial-In User Service (RADIUS): Yes
- Access Control List (ACL): Yes
Management features
- Web-based management: Yes
- Syslog: Yes
Ports & interfaces

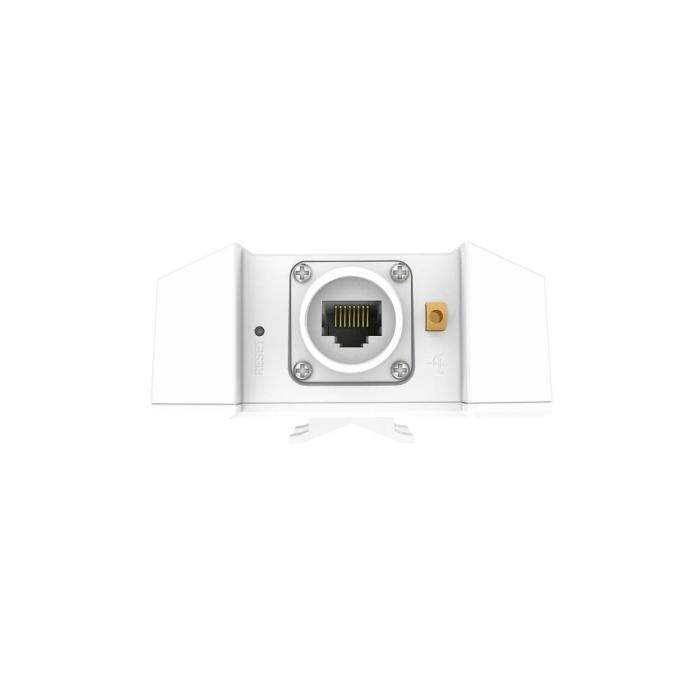

- Ethernet LAN (RJ-45) ports: 1
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE
Design

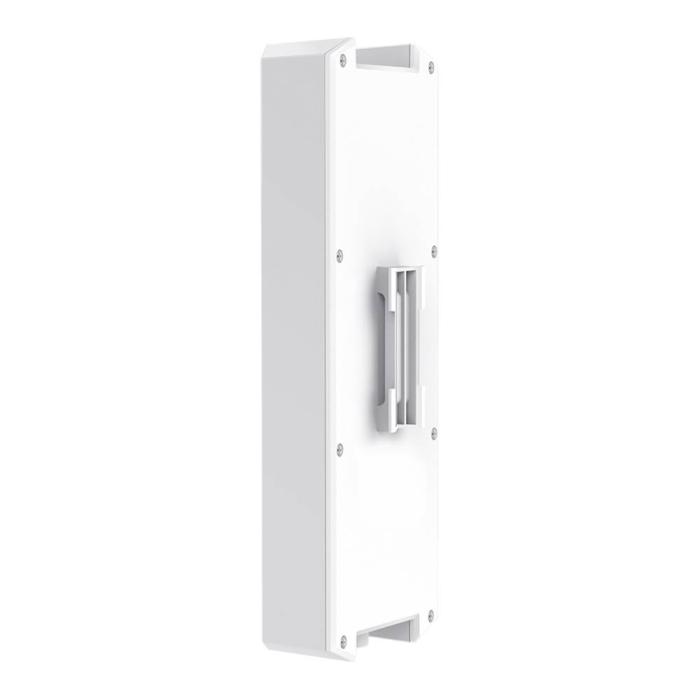

- Placement: Pole
- Product colour: White
- Reset button: Yes
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 2
Certificates
- Certification: CE, FCC, RoHS
Weight & dimensions
- Width: 280.4 mm
- Depth: 106.5 mm
- Height: 56.8 mm
Packaging content
- Quantity per pack: 1 pc(s)
- Mounting kit: Yes
- Quick start guide: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
