Description

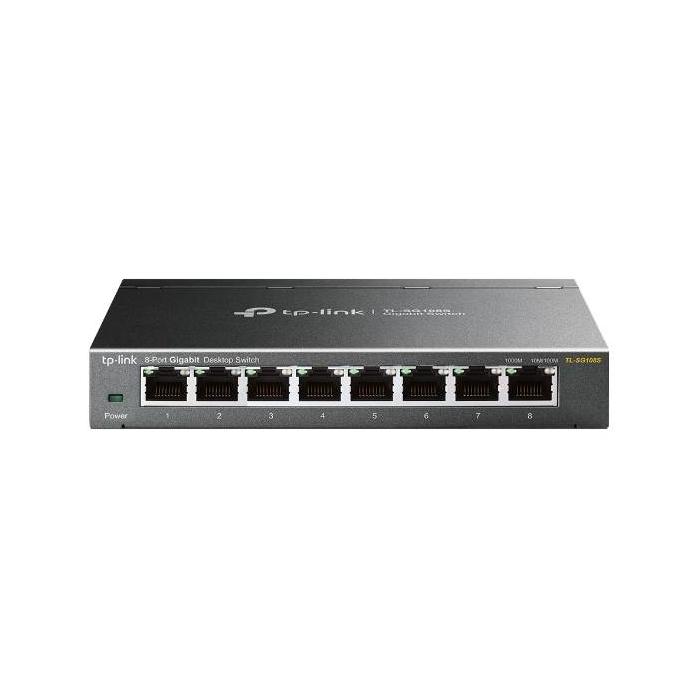

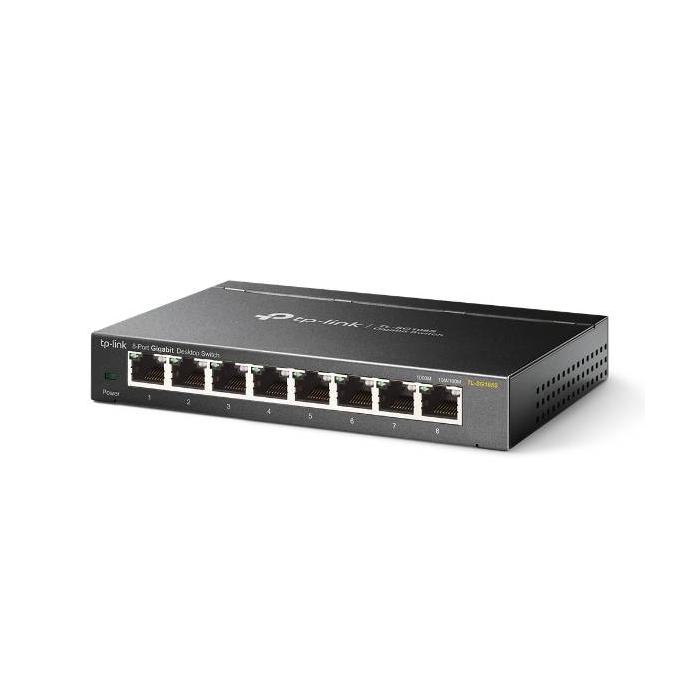

TP-Link Omada 8-Port 10/100/1000Mbps Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Forwarding rate: 11.9 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 16000
- Packet buffer memory: 1.5 MB
Security
- IGMP snooping: Yes
Design
- Wall mountable: Yes
- Rack mounting: No
- Product colour: Black
- LED indicators: Yes
Power
- Power source: DC
- Power supply included: Yes
- Input current: 0.6 A
- Input voltage: 9 V
- Power consumption (max): 3.3 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 158 mm
- Depth: 101 mm
- Height: 25 mm
Packaging content
- Cables included: AC
- Quick start guide: Yes
Packaging data
- Package type: Box
Certificates
- Certification: CE, FCC ,RoHS
Logistics data
- Harmonized System (HS) code: 85176990
