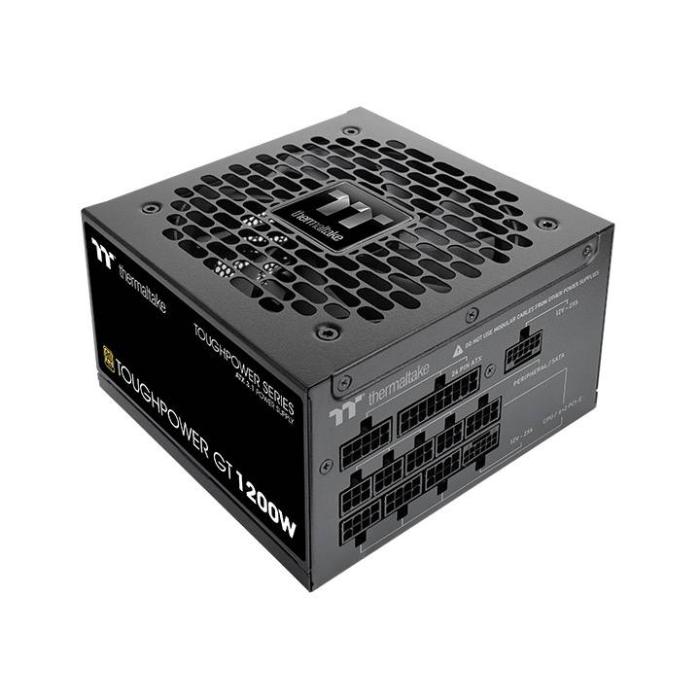

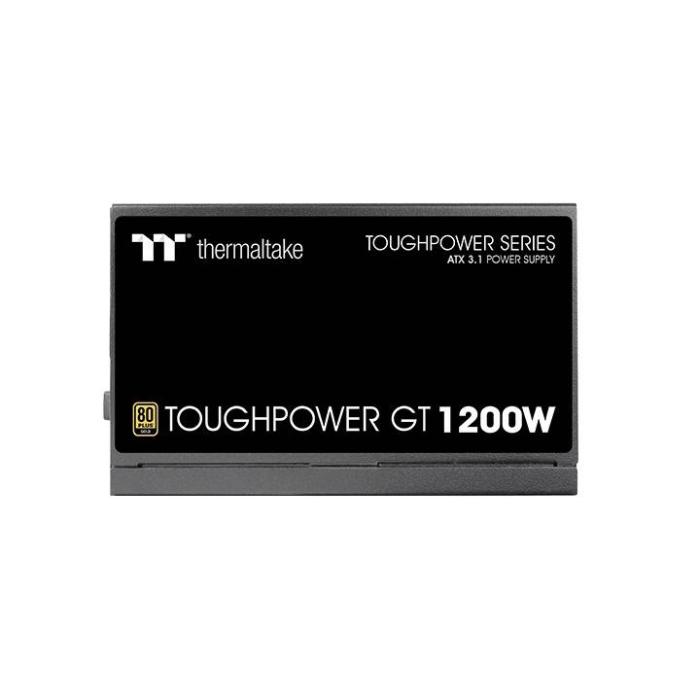

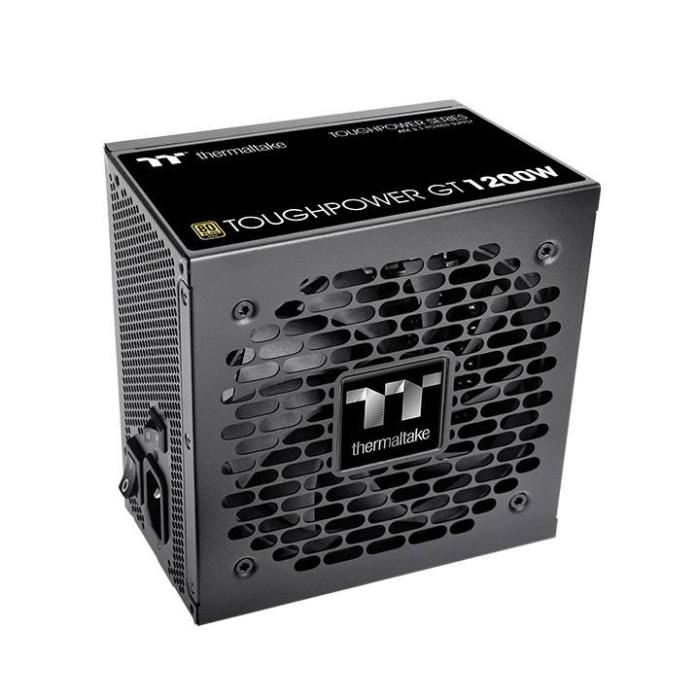

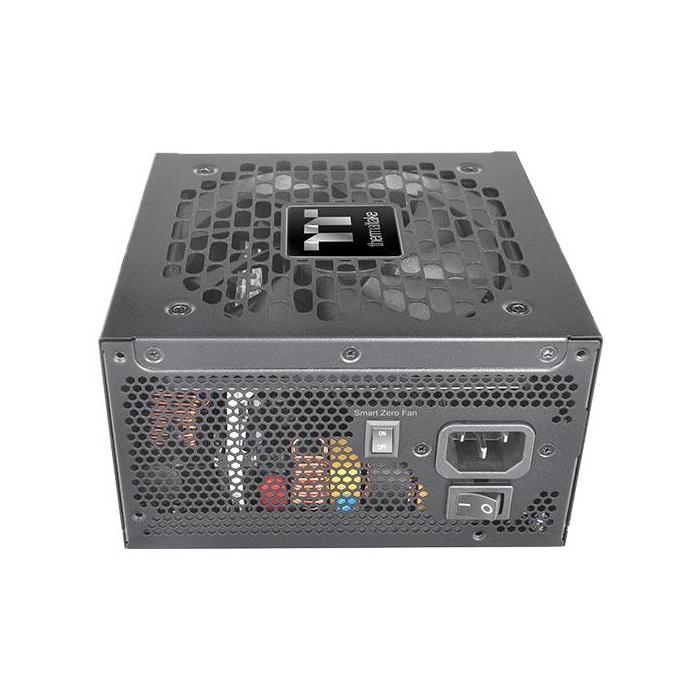

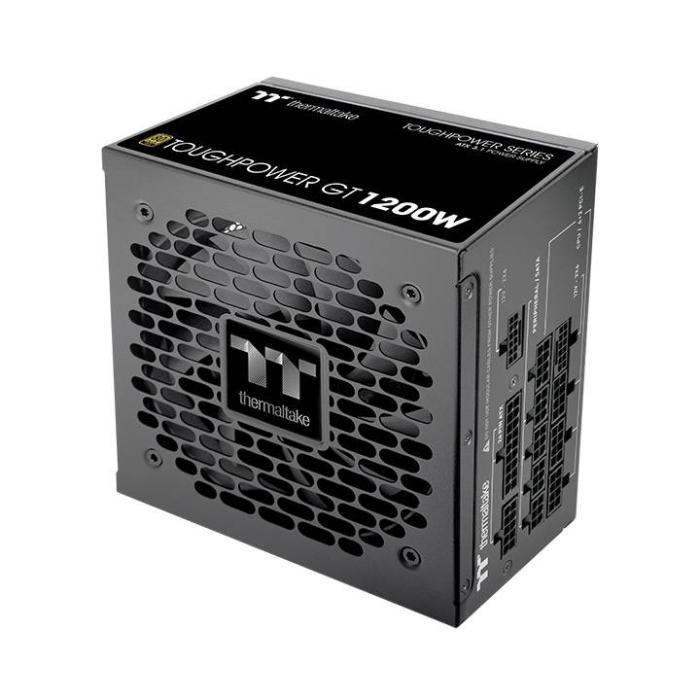

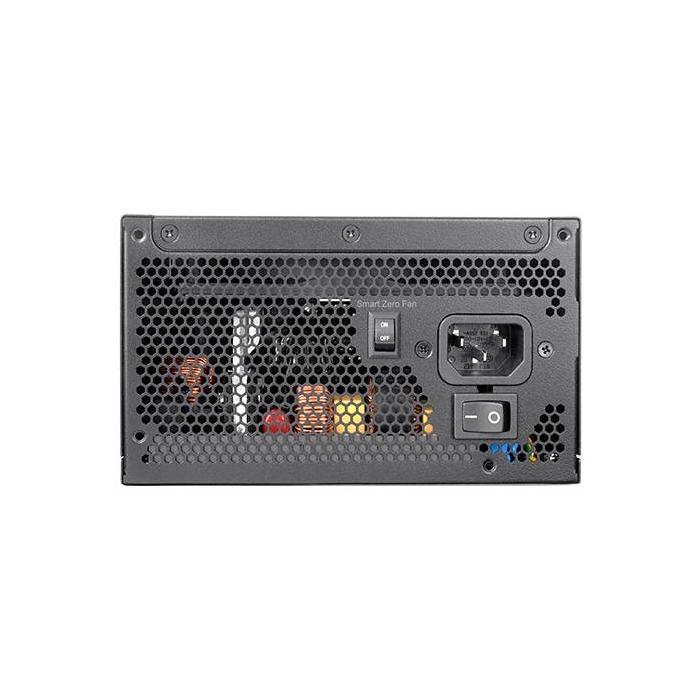

Thermaltake Toughpower GT 1200W power supply unit 24-pin ATX ATX Black
More info
Brand: THERMALTAKE
164.81 €Stock available: 0 units.
Unavailable
SKU:
124027
PRC:
629063
EAN:
4711658544087
PN:
ps-tpt-1200fnfage-3
Description
Thermaltake Toughpower GT 1200 W power supply unit in ATX format with a black finish, designed for high-consumption builds with a 24-pin main connector. It delivers a combined power of 1200 W on the +12 V rail with a maximum output current of 100 A, along with protections against overcurrent, overvoltage, undervoltage, and short circuit. Its active power factor correction (active PFC) and input range of 100-240 V with a 50/60 Hz frequency ensure stable operation across various installations. It includes Molex peripheral cables of 150 and 400 mm for easy connection of components.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 15 - 10 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 1200 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 100 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 17 ms
- Power protection features: Over current, Over power, Under voltage, Over voltage, Short circuit
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 6
- SATA power cable length: 150, 450 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 150, 400 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 5
- PCI Express power connectors (12+4 pin): 2
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: Hydraulic
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 85%
Certificates
- Compliance certificates: BIS, BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, UKCA, cTUVus
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
