Description

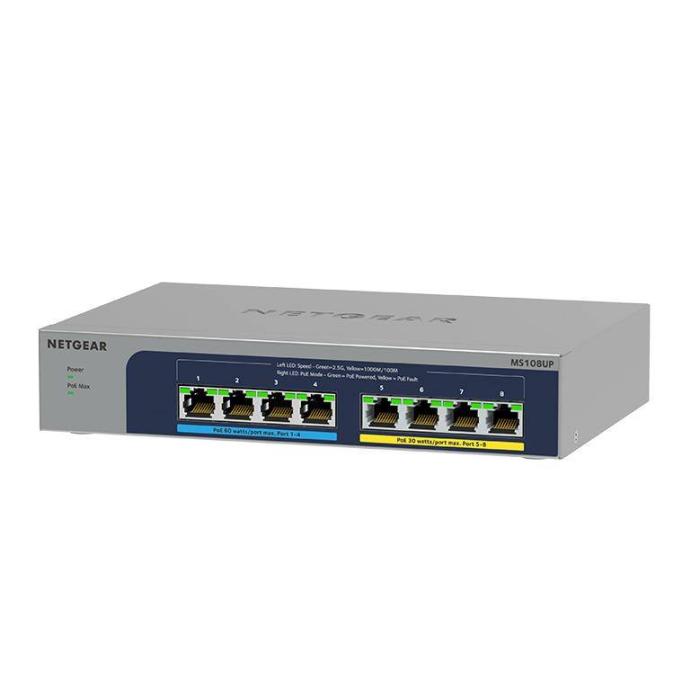

NETGEAR MS108UP, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE), Wall mountable
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity: 8
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 100,1000,2500 Mbit/s
- Auto-sensing: Yes
- VLAN support: Yes
- Number of VLANs: 64
Data transmission
- Switching capacity: 40 Gbit/s
- MAC address table: 16000 entries
- Latency (1 Gbps): 3.593 µs
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet buffer memory: 1.5 MB
Design
- Rack mounting: No
- Housing material: Metal
- LED indicators: Activity, Link, PoE, Power
- Wall mountable: Yes
- Number of fans: 0 fan(s)
- Electromagnetic compatibility: CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 373643.7 h
Power
- Power source: DC
- Power supply included: Yes
- DC input voltage: 54 V
- Input current: 4.7 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 230 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 923.49 BTU/h
Weight & dimensions
- Width: 210 mm
- Depth: 140 mm
- Height: 40 mm
- Weight: 900 g
Certificates
- Certification: CB, CSA, CCC, BSMI, RCM
Logistics data
- Harmonized System (HS) code: 85176990
