Description

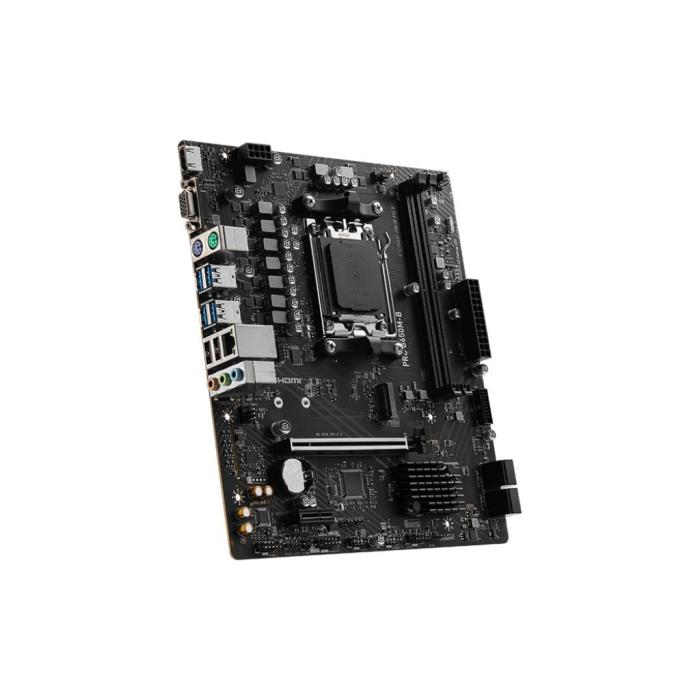

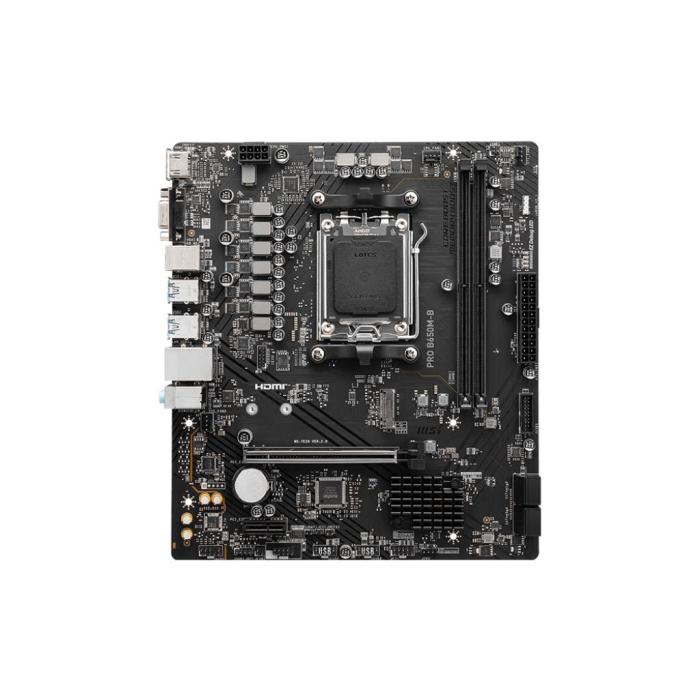

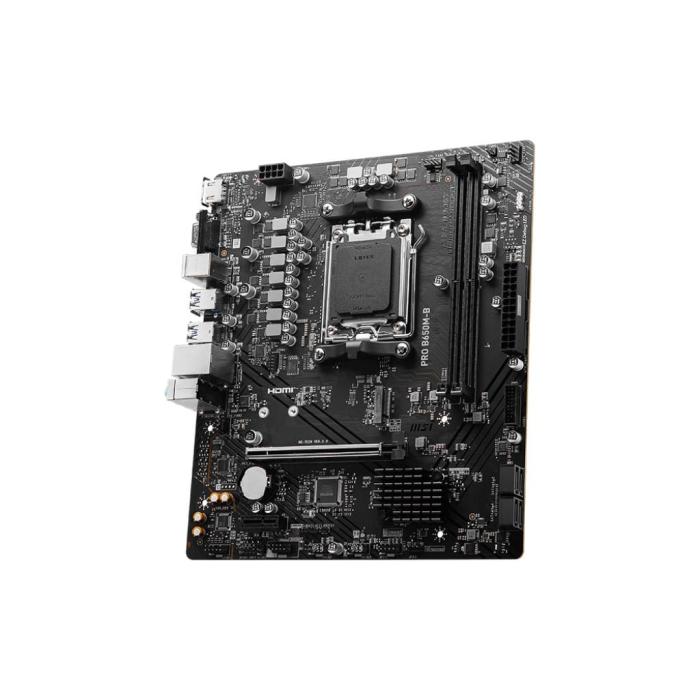

AMD B650, 2x DDR5, 6800MHz, 1x HDMI, 1x VGA, 1x M.2, 4x SATA 6G, mATX
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Supported processor sockets: Socket AM5
- Maximum internal memory supported by processor: 96 GB
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Supported memory clock speed (max): 6800 MHz
- Maximum internal memory: 96 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA
- RAID levels: 0, 1, 10
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes

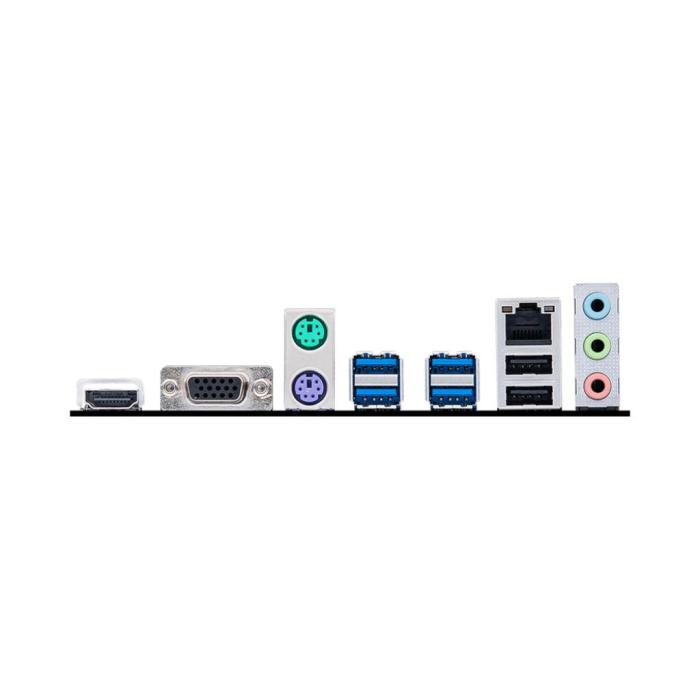

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125-BG
- Wi-Fi: No
Features
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- PC health monitoring: Fan
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 6.4
- System management BIOS (SMBIOS) version: 3.5
Weight & dimensions
- Width: 215 mm
- Depth: 243.8 mm
