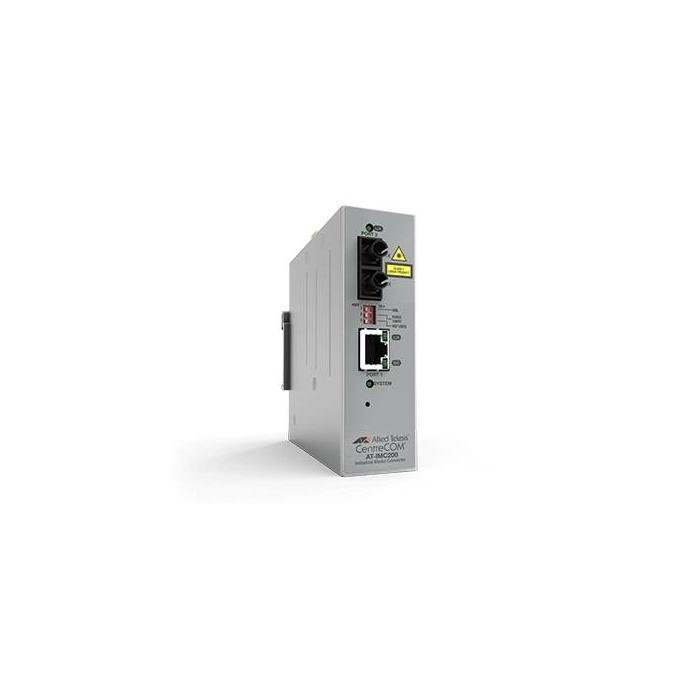

Allied Telesis AT-IMC200T/SC-980 network media converter 100 Mbit/s 1310 nm Grey
More info
Brand: ALLIED TELESIS
377.41 €
SKU:
115930
PRC:
268182
EAN:
767035210520
PN:
990-005558-980
Description
Specifications
Network
- Store-and-forward: Yes
- Maximum data transfer rate: 100 Mbit/s
- Converter input interface: 10Base-T, 100Base-T, 1000Base-T
- Converter output interface: 100Base-FX
- Ethernet interface type: Fast Ethernet
- Ethernet LAN data rates: 10, 100 Mbit/s
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (1 Gbps): 1488000 pps
- Jumbo frames support: Yes
- Jumbo frames: 10000
- VLAN support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Performance
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Tx power (min): -19 dBmW
- Tx power (max): -14 dBmW
- Rx power (min): -32 dBmW
- Rx power (max): -3 dBmW
Features
- Internal: No
- LED indicators: Yes
- Product colour: Grey
- International Protection (IP) code: IP30
- DIN rail mounting: Yes
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Power
- Input voltage: 12 - 48 V
Weight & dimensions
- Width: 111 mm
- Depth: 96 mm
- Height: 35 mm
- Weight: 748 g
Operational conditions
- Operating temperature (T-T): -40 - 75 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
Certificates
- Compliance certificates: RoHS
- Safety: UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark)
- Certification: TAA EMI/Emission & Stability FCC Class A EN55024 (immunity standard) EN55032 Class A EN55035 VCCI Class A
