Description

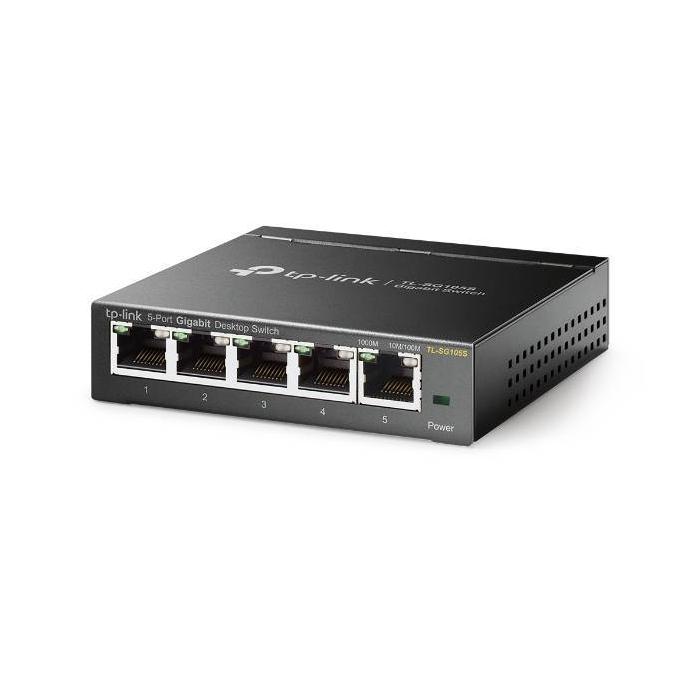

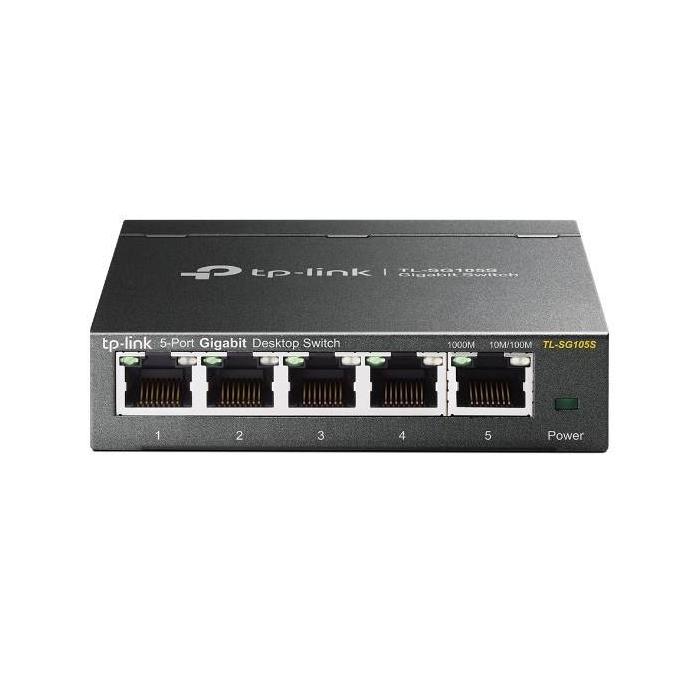

The TP-Link TL-SG105S switch is an unmanaged device that expands your local network with Gigabit Ethernet connectivity. It incorporates five Gigabit Ethernet RJ-45 ports (10/100/1000) with basic switching, auto-negotiation and Auto MDI/MDI-X function on each one. It supports bidirectional full duplex and flow control, as well as QoS support to prioritise sensitive traffic. Its copper wiring technology covers 10BASE-T, 100BASE-TX and 1000BASE-T, and it works with Cat3, Cat4, Cat5 and Cat5e cables. It manages MAC addresses with auto-learning and auto-aging, with a table of up to 2000 entries and a forwarding rate of 7.4 Mpps. It also supports Jumbo Frames for larger frames. It complies with the IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u and IEEE 802.3x standards. All of this in black and with dimensions of 99.8 x 25 x 97.8 mm (width x height x depth).
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.4 Mpps
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 16000
- Packet buffer memory: 1 MB
Security
- IGMP snooping: Yes
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Steel
- LED indicators: Yes
- Wall mountable: Yes
Performance
- Plug and Play: Yes
Power
- Power source: DC
- Power supply included: Yes
- Input current: 0.6 A
- Input voltage: 5 V
- Output voltage: 9 V
- Output current: 0.6 A
- Power consumption (max): 2.3 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 7.83 BTU/h
Weight & dimensions
- Width: 99.8 mm
- Depth: 97.8 mm
- Height: 25 mm

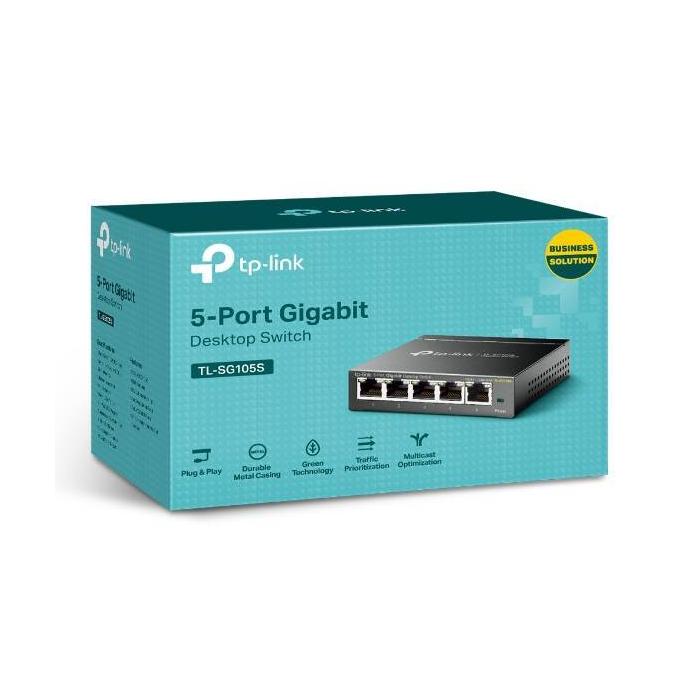

Packaging content
- Cables included: AC
- User guide: Yes
Packaging data
- AC adapter included: Yes
- Package type: Box
- Rubber feet: Yes
- Package width: 128 mm
- Package depth: 125 mm
- Package height: 92 mm
Certificates
- Certification: CE, FCC, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
