Description

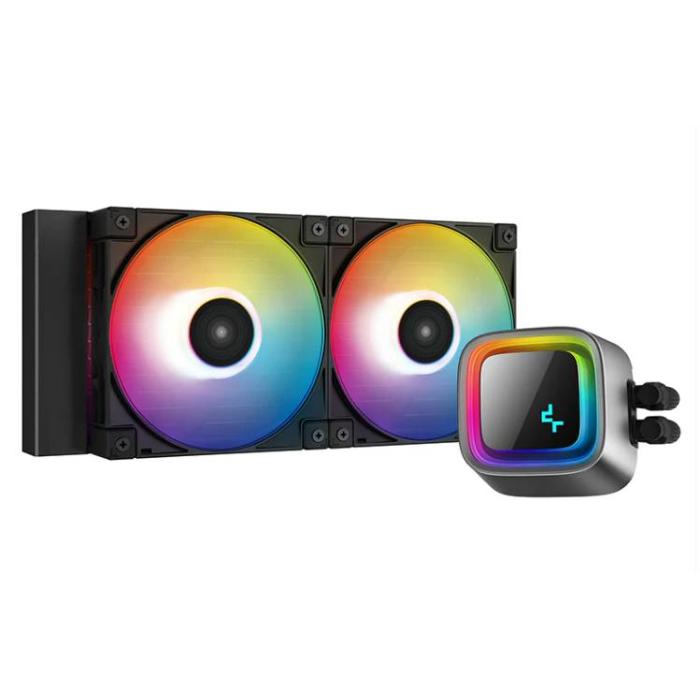

The DeepCool LS520 is an all-in-one liquid cooling system designed for the processor and available in black. It incorporates two 12 cm fans with fluid dynamic bearing (FDB) that spin between 500 and 2250 RPM and are compatible with pulse width modulation (PWM). Each of them reaches a maximum air flow of 85,85 cfm and a maximum pressure of 3,27 mmH2O, so they move the necessary flow even through dense radiators. At high speed, the noise level of the fans stands at 32,9 dB, while the pump works with a noise level of 19 dB, a useful figure if you are looking for a discreet unit in continuous operation. The assembly weighs 1,3 kg, a figure to take into account when mounting it on the motherboard. Its all-in-one format simplifies installation in the tower and concentrates the dissipation in the pump block.
Specifications
Performance
- Suitable location: Processor
- Type: All-in-one liquid cooler
- Fan diameter: 12 cm
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-
- Rotational speed (min): 500 RPM
- Rotational speed (max): 2250 RPM
- Noise level (high speed): 32.9 dB
- Maximum airflow: 85.85 cfm
- Maximum air pressure: 3.27 mmH2O
- Fan diameter 2: 12 cm
- Fan 2 rotational speed (min): 500 RPM
- Fan 2 rotational speed (max): 2250 RPM
- Fan 2 noise level (high speed): 32.9 dB
- Fan 2 maximum airflow: 85.85 cfm
- Fan 2 maximum air pressure: 3.27 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Pump noise level: 19 dB
- Fan bearing technology: Fluid Dynamic Bearing (FDB)
Design
- Product colour: Black
- Radiator material: Aluminum
- Number of fans: 2 fan(s)
- Illumination LED: Yes
- Illumination colour: Multi
- LED connector type: 3-pin
- Fan connector: 4-pin
Power
- Fan power consumption: 3.48 W
- Pump power consumption: 5.64 W
- LED voltage: 5 V
- Pump voltage: 12 V
- Pump current: 470 mA
- Fan voltage: 12 V
- Fan current: 0.29 A
- LED power consumption (fan): 3.6 W
- LED power consumption (pump): 2.2 W
Weight & dimensions
- Radiator width: 12 cm
- Radiator depth: 28.2 cm
- Radiator height: 2.7 cm
- Tube length: 41 cm
- Pump width: 8.6 cm
- Pump depth: 7.4 cm
- Pump height: 5.7 cm
- Weight: 1.3 kg
