Description

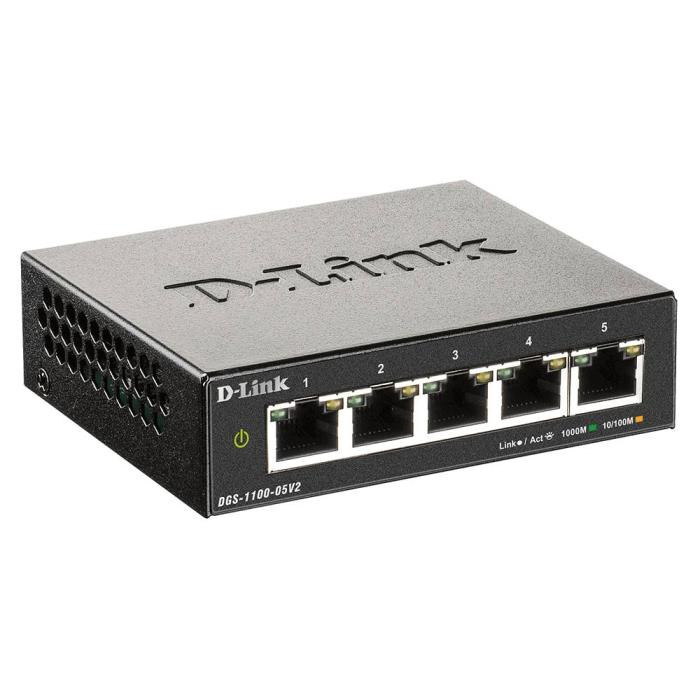

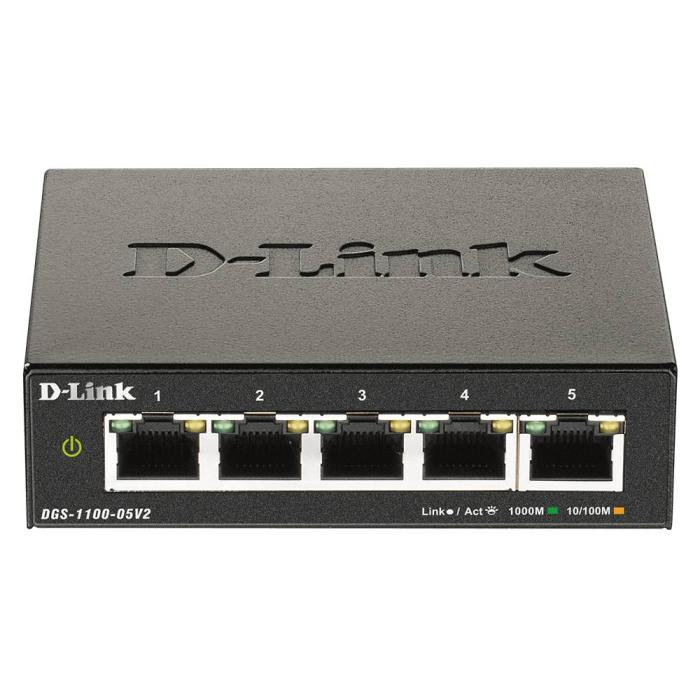

The D-Link DGS-1100-05V2 managed switch is a black device measuring 100.5 x 82 x 28 mm and weighing 230 g, designed to expand or segment networks easily. It offers five RJ-45 Gigabit Ethernet (10/100/1000) ports with 1000BASE-T copper cabling technology, allowing equipment to be connected at speeds of up to 1000 Mbit/s. As an L2 layer managed model, it supports web-based management and also cloud management, as well as incorporating support for QoS and traffic control. Its switching capacity reaches 10 Gbit/s and the forwarding rate reaches 7.4 Mpps, with a MAC address table of 2000 entries and a packet buffer memory of 1 MB. It incorporates support for 9216 Jumbo frames and an Auto MDI/MDI-X function to simplify cabling. It has a reset button that makes it easy to return to the factory settings when necessary.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T
- Auto MDI/MDI-X: Yes
Data transmission
- MAC address table: 2000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.4 Mpps
- Packet buffer memory: 1 MB
Design
- Rack mounting: No
- Product colour: Black

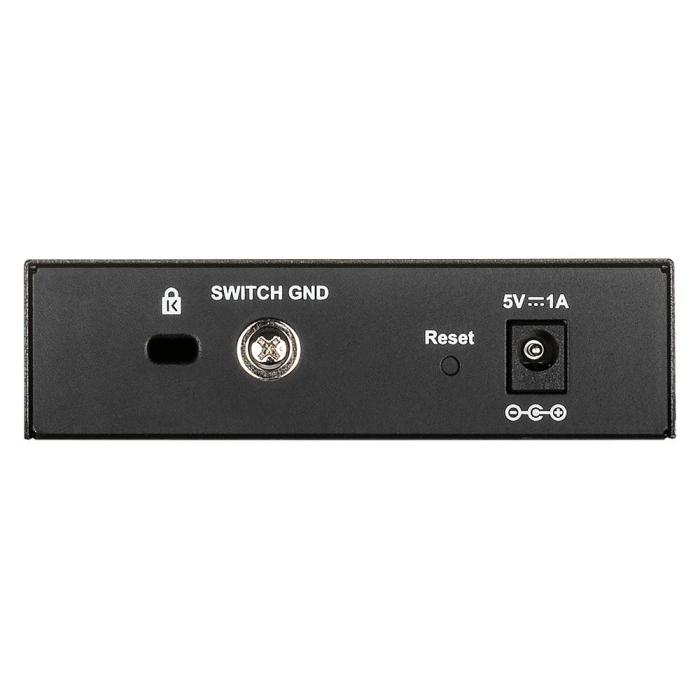

- Reset button: Yes
- Number of fans: 0 fan(s)
Performance
- Noise level: 0 dB
- Fanless: Yes
Power
- Power source: AC
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- DC input voltage: 5 V
- Input current: 1 A
- Power consumption (max): 3.42 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 0 - 90%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 2000 m
Weight & dimensions
- Width: 100.5 mm
- Depth: 28 mm
- Height: 82 mm
- Weight: 230 g
Logistics data
- Harmonized System (HS) code: 85176990
