Description

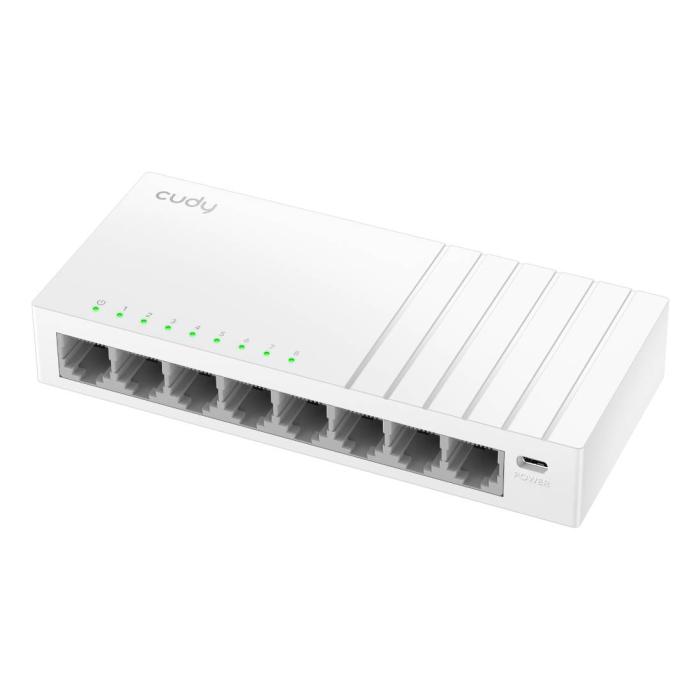

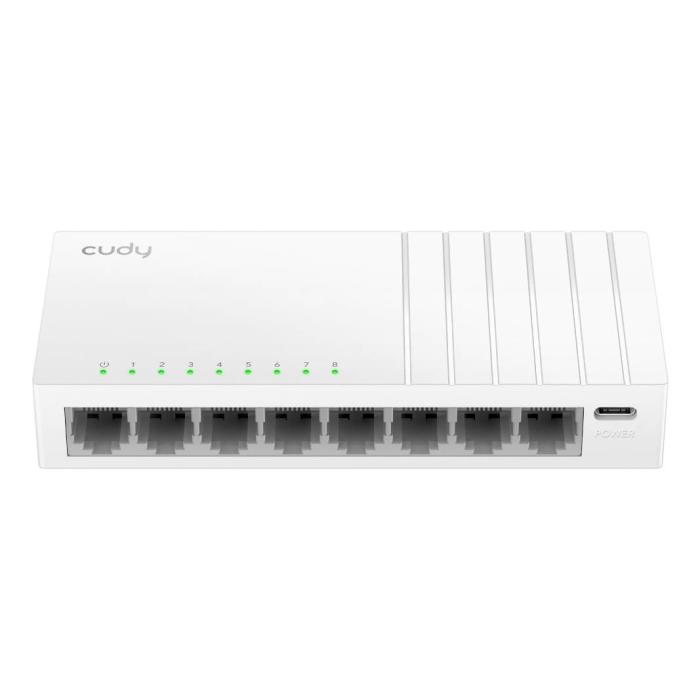

Connect up to eight devices with the Cudy GS108U 2.0, an unmanaged Gigabit Ethernet switch in white that offers 10/100/1000 Mbps RJ-45 ports for a simple home or office network. It is powered via a USB connector, which makes it easy to install in tight spaces without the need for a bulky wall adapter. With a 16 Gbit/s switching capacity and support for 9000-byte jumbo frames, it handles traffic efficiently, while its 4096-entry MAC address table and IEEE 802.3x flow control ensure stable transmission. Compatible with Cat3, Cat5 and Cat5e cables, this hub is a practical option for expanding your wired network without complications.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Power connector: USB
Network
- Networking standards: IEEE 802.3x, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat3, Cat5, Cat5e
- Flow control support: Yes
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.904 Mpps
- MAC address table: 4096 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 0.125 MB
Design
- Rack mounting: No
- Stackable: No
- Product colour: White
- Housing material: Plastic
- LED indicators: Power, Link, Activity
- Wall mountable: Yes
Power
- Power source: USB
- Power supply included: No
- Power consumption (max): 4 W
- Surge protection: Yes
- Surge protection voltage: 8 kV
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Weight: 87.5 g
- Width: 138 mm
- Depth: 61.5 mm
- Height: 24 mm

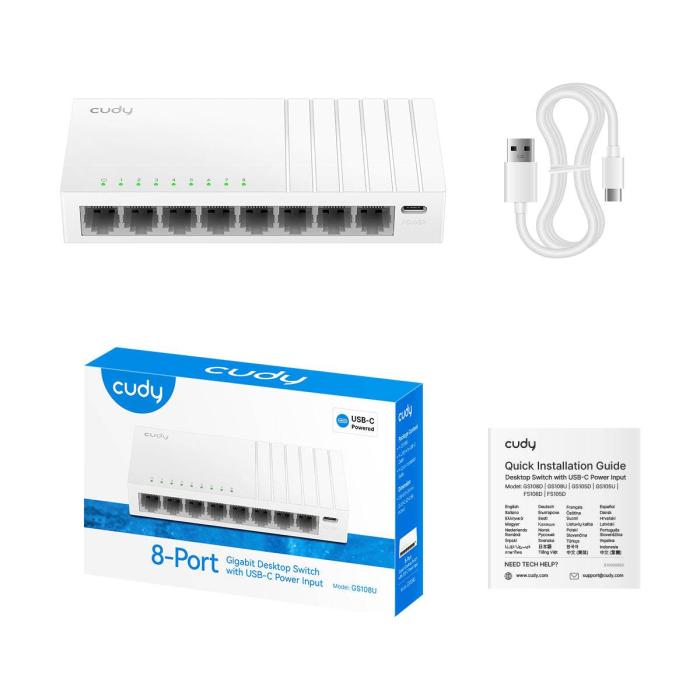

Packaging content
- Cables included: USB Type-A to USB Type-C
- User guide: Yes
Packaging data
- Package width: 143 mm
- Package depth: 89 mm
- Package height: 32 mm
- Package weight: 152.5 g
Logistics data
- Master (outer) case net weight: 9.2 kg
- Master (outer) case width: 353 mm
- Master (outer) case length: 287 mm
- Master (outer) case height: 308 mm
- Master (outer) case gross weight: 9.7 kg
- Products per master (outer) case: 60 pc(s)
