Description

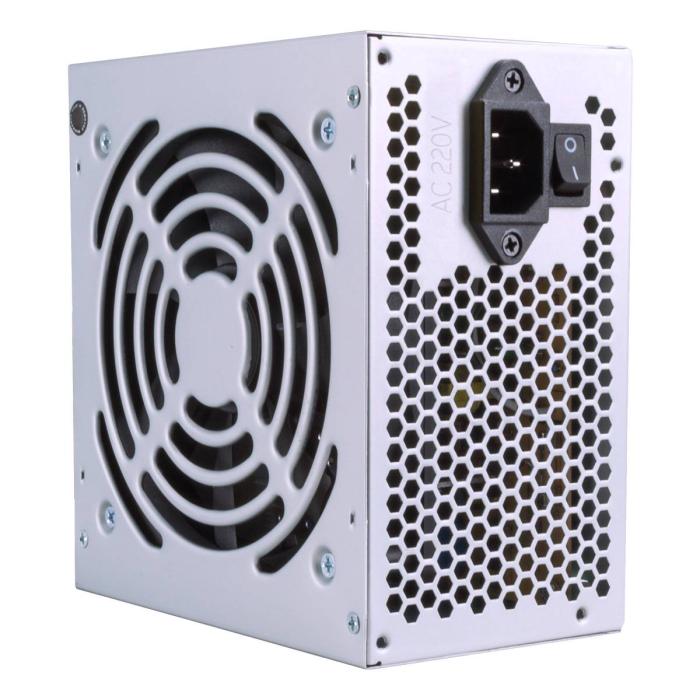

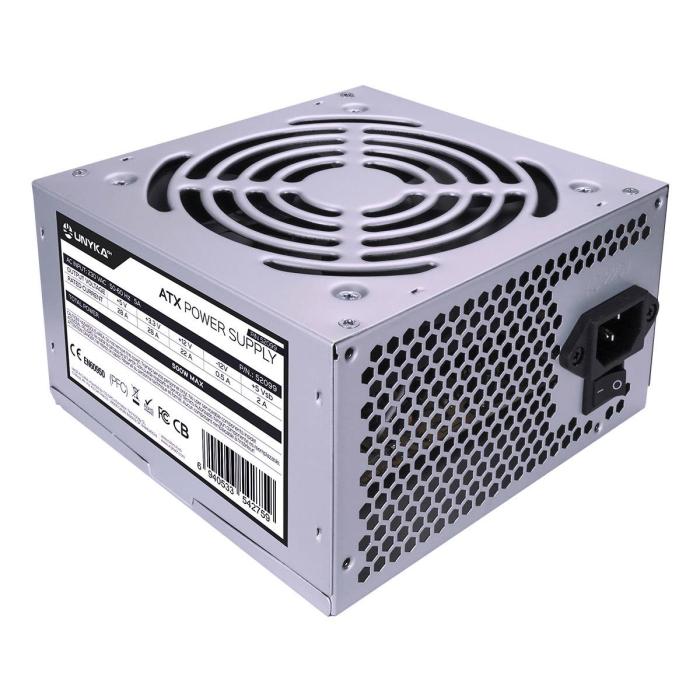

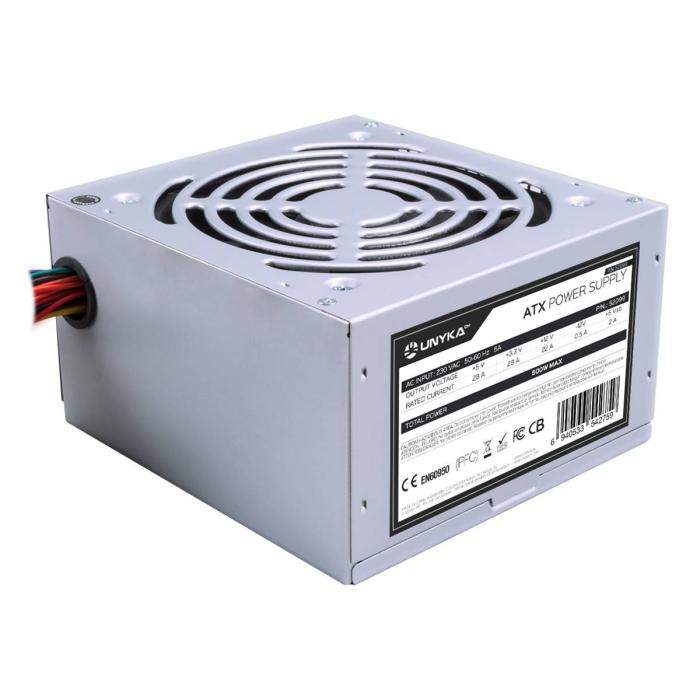

The UNYKAch ATX 500W is a 500 W power supply unit in silver and ATX form factor, measuring 150 x 85 x 140 mm (width x height x depth) and weighing 747 g. Its non-modular cabling includes the 20+4 pin connector for the motherboard, with a 31 cm cable, as well as SATA connectors with lengths of 300 and 480 mm and two 4-pin Molex connectors with 480 and 620 mm cables. It also includes a power connector for a floppy disk drive, with a 62 cm cable. On the electrical side, it offers 78% efficiency, supports a 230 V input at a frequency of 50 - 60 Hz and distributes its power across the +12 V1 rail with 22 A, +3.3V and +5V with 28 A each, +5Vsb with 2 A and -12V with 0.5 A. It includes protection features against overcurrent, overvoltage, overvoltage, overheating, overload, short circuit and undervoltage, which helps to protect the system's components against variations in the power supply.
Specifications
Power
- Total power: 500 W
- AC input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Max output current (+3.3V): 28 A
- Max output current (+12V1): 22 A
- Max output current (+5V): 28 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 2 A
- Efficiency: 78%
- Power protection features: Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 62 cm
- Cabling type: Non-Modular
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 31 cm
- Number of SATA power connectors: 3
- SATA power cable length: 300, 480 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 480, 620 mm
- Floppy drive power connector: 1
Performance
- Supported motherboard form factors: ATX
- Purpose: PC/Server
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.03
- Noise level: 28 dB
Design
- Product colour: Silver

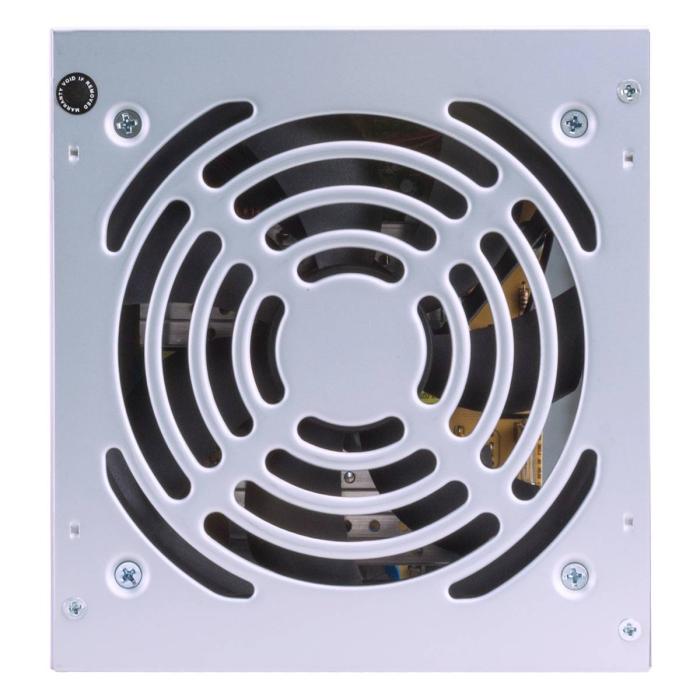

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Certificates
- Compliance certificates: RoHS
- Certification: EN60950, TÜV
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 85 mm
- Weight: 747 g
Packaging data
- Package width: 165 mm
- Package depth: 215 mm
- Package height: 90 mm
- Package weight: 879 g
Logistics data
- Products per pallet: 10 pc(s)
