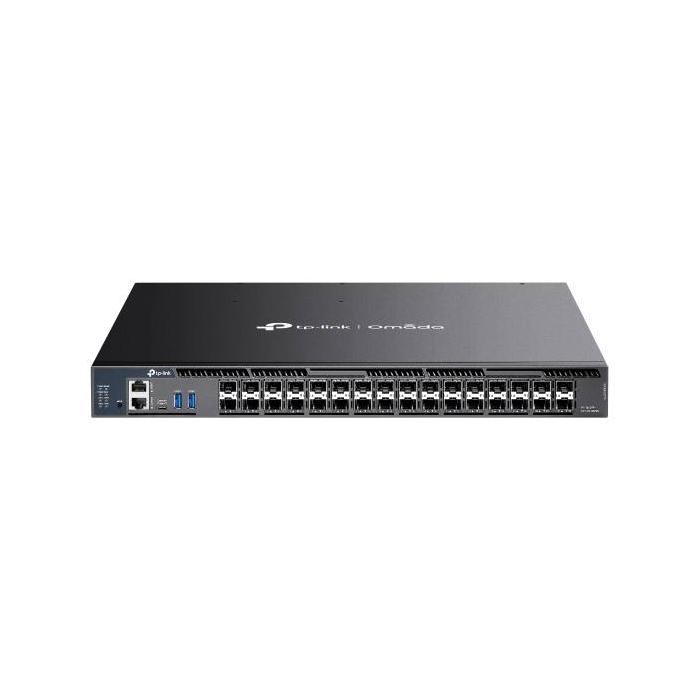

Description
The TP-Link SX6632YF switch is a managed L2+/L3 device in black, with dimensions of 440 x 44 x 380 mm (width x height x depth). It features 26 slots for SFP+ modules and 6 slots for SFP modules, plus an RJ-45 console port and a management port. It has two USB Type-A ports and one USB Type-C port. It can be managed via web-based or cloud-based administration. It offers support for quality of service (QoS), ARP inspection, port mirroring and VLAN support, with virtual LAN functions such as MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN and Voice VLAN. It complies with IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad and IEEE 802.3ah network standards, and includes IP routing.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2+/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- ARP inspection: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type: No
- SFP module slots quantity: 6
- SFP+ module slots quantity: 26
- USB Type-A ports quantity: 2
- USB Type-C ports quantity: 1
- Number of management ports: 1 pc(s)
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Data transmission
- Switching capacity: 820 Gbit/s
- Forwarding rate: 610.1 Mpps
- MAC address table: 128000 entries
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 8 MB
Security
- DHCP features: DHCP Option 82
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- MAC address filtering: Yes
- Static port security: Yes
- SSH/SSL support: Yes
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: SNMPv1/v2c/v3
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Black
- Number of fans: 4 fan(s)
Performance
- Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Power
- Power source: AC
- Redundant power supply (RPS) support: Yes
- Number of power supply units: 2
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -5 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 380 mm
- Height: 44 mm
Packaging content
- Cables included: Power
- Quick start guide: Yes
- Rack mount kit: Yes
