Description

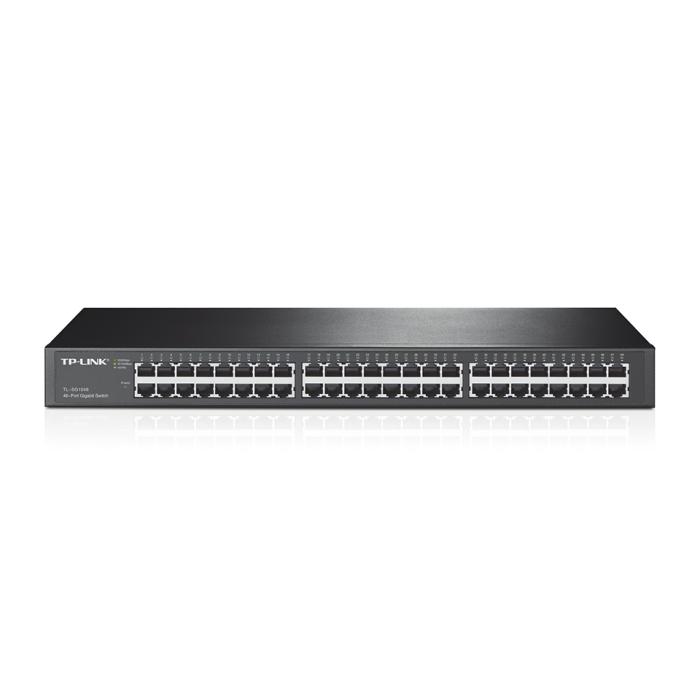

The TP-Link TL-SG1048 switch is an unmanaged device with 48 Gigabit Ethernet (10/100/1000) ports in a black colour format, with dimensions of 440 x 44 x 220 mm. It incorporates 48 RJ-45 Gigabit Ethernet copper ports to connect numerous devices to the network. It supports half-duplex and full-duplex transmission, with auto-negotiation and Auto MDI/MDI-X. It complies with the IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u and IEEE 802.3x standards, and supports 1000BASE-T, 100BASE-TX and 10BASE-T cabling technologies. It offers a maximum transfer rate of 1 Gbit/s and supported rates of 10/100/1000 Mbps. Its switching capacity reaches 96 Gbit/s and the forwarding rate is 71.4 Mpps, with a MAC address table of 16000 entries. It supports 12000-byte Jumbo frames and operates with the store-and-forward method.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 48
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
Data transmission
- Supported data transfer rates: 10/100/1000 Mbps
- Switching capacity: 96 Gbit/s
- Forwarding rate: 71.4 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
- Maximum data transfer rate: 1 Gbit/s
- Jumbo frames support: Yes
- Jumbo frames: 12000
Protocols
- Supported network protocols: CSMA/CD, TCP/IP
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
- Compatible products: FCC, CE
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 32.29 W
Other features
- Dimensions (WxDxH): 440 x 360 x 44 mm
- Connectivity technology: Wired
- Bandwidth: 96 Gbit/s
- Connectivity LEDs: Yes
- Dimensions (W x D x H) (imperial): 439.4 x 360.7 x 43.2 mm (17.3 x 14.2 x 1.7")
Operational conditions
- Operating temperature (T-T): 32 - 104 °F
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 110.17 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 220 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
- Package width: 528 mm
- Package depth: 336 mm
- Package height: 100 mm
Logistics data
- Harmonized System (HS) code: 85176990
