StarTech.com HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)
More info
Brand: STARTECH.COM
Stock available: 5 units
Description
The StarTech.com HDMI video and audio extender kit, in black, transmits AV signal between a transmitter and a receiver over UTP Ethernet cable. It reaches a maximum transfer distance of 50 m using Cat5e and Cat6 cables, with a maximum resolution of 1920 x 1080 pixels and compatibility with 1080i and 1080p video modes. It features one HDMI input and one HDMI output, plus two RJ-45 input ports and two RJ-45 output ports for Ethernet network routing. It is powered by Power over Cable via the DC input jack, and includes LED power indicators to check the status of the equipment. The housing is aluminium and supports rack mounting, making it easy to integrate into fixed installations. It is certified CE, FCC, REACH and TAA.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 50 m
- LED indicators: Power
- Supported video modes: 1080i, 1080p
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Material: Aluminium
- Rack mounting: Yes
- Daisy chain: No
- Product colour: Black
- Certification: CE, FCC, REACH, TAA
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 2
- RJ-45 output ports: 2
- HDMI in: 1
- Number of HDMI outputs: 1
- DC-in jack: Yes
Power
- AC input voltage: 100-240 V
- Operating voltage: 12 V
- Input current: 0.5 A
- Output current: 1.5 A
- Power consumption (typical): 18 W
- External power adapter: Yes
- Power plug type: Type M
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Receiver dimensions (WxDxH): 51 x 80 x 21 mm
- Receiver weight: 157 g
- Transmitter dimensions (WxDxH): 51 x 80 x 21 mm
- Transmitter weight: 157 g
Packaging data
- Package width: 157 mm
- Package depth: 237 mm
- Package height: 65 mm
- Package weight: 935 g

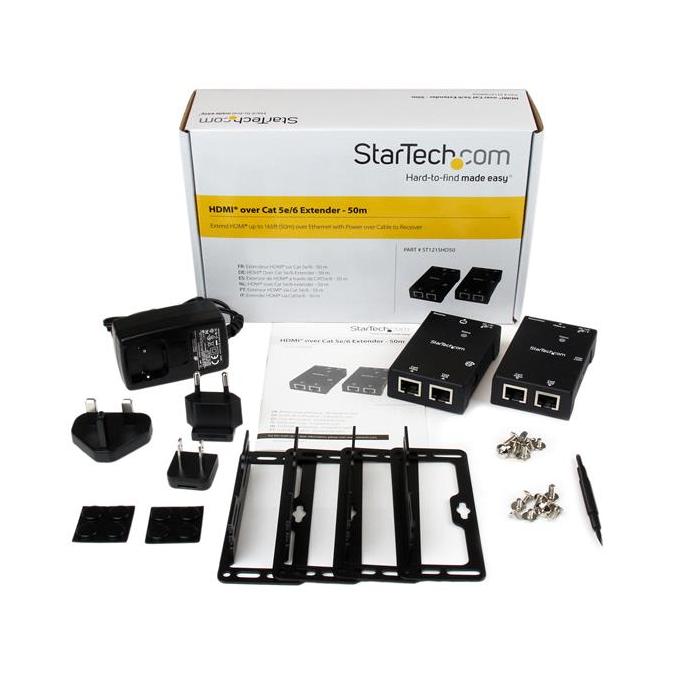

Packaging content
- AC adapter included: Yes
- Cables included: HDMI
- Manual: Yes
- Mounting brackets included: Yes
Technical details
- Compliance certificates: RoHS
Logistics data
- Master (outer) case width: 320 mm
- Master (outer) case length: 410 mm
- Master (outer) case height: 260 mm
- Products per master (outer) case: 12 pc(s)
