StarTech.com 15m (49.2ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex LOMMF Zipcord, VCSEL, 40G/100G, LSZH Fiber Jumper Cord
More info
Brand: STARTECH.COM
54.96 €
46.98 €
without VAT
incl. 17 % VAT · Shipping to Luxembourg
Stock available: 5 units.
Get it
on the
October 7
/
October 8
SKU:
130439
PRC:
469933
EAN:
65030900980
PN:
LCLCL-15M-OM5-FIBER
Description

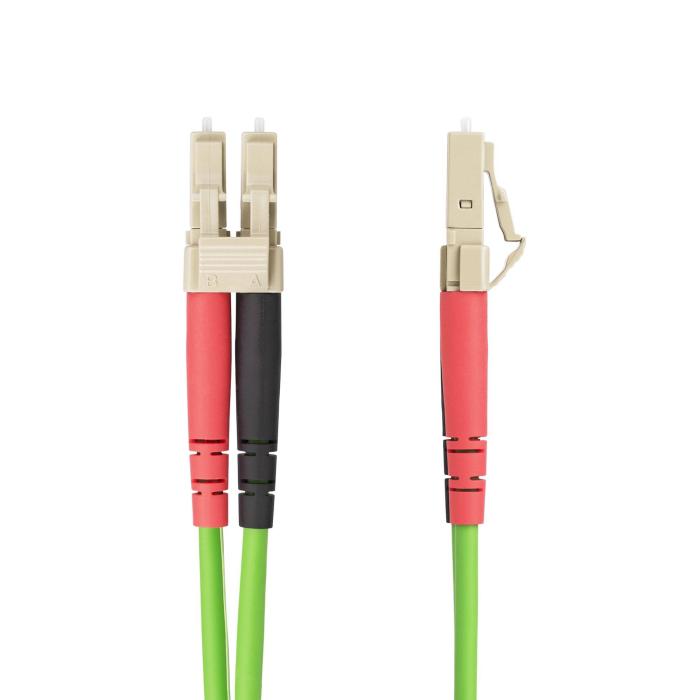

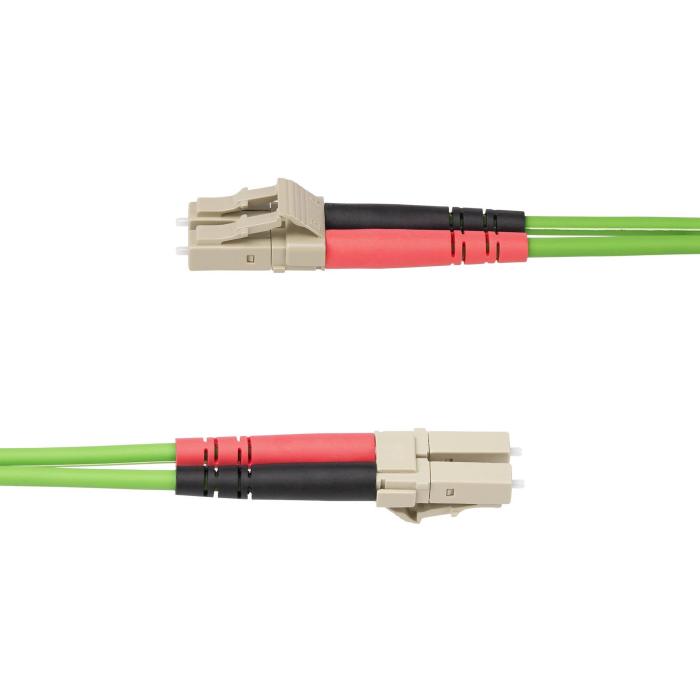

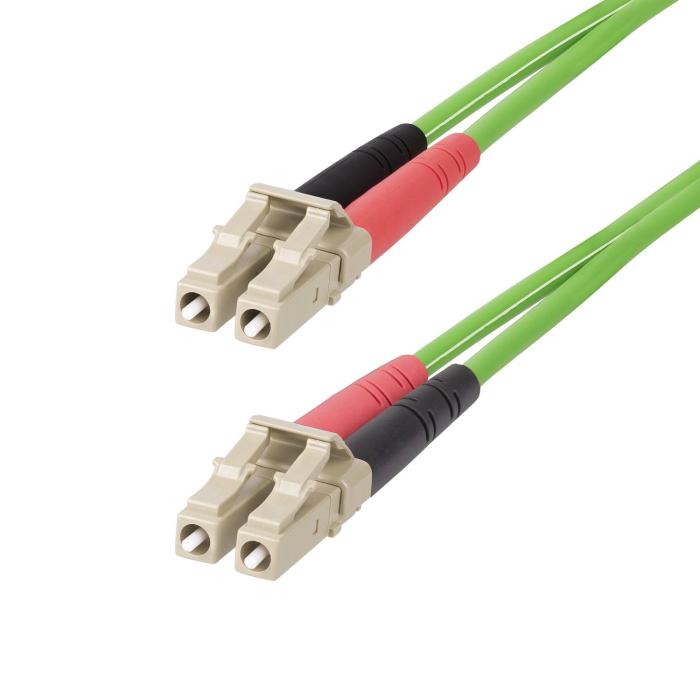

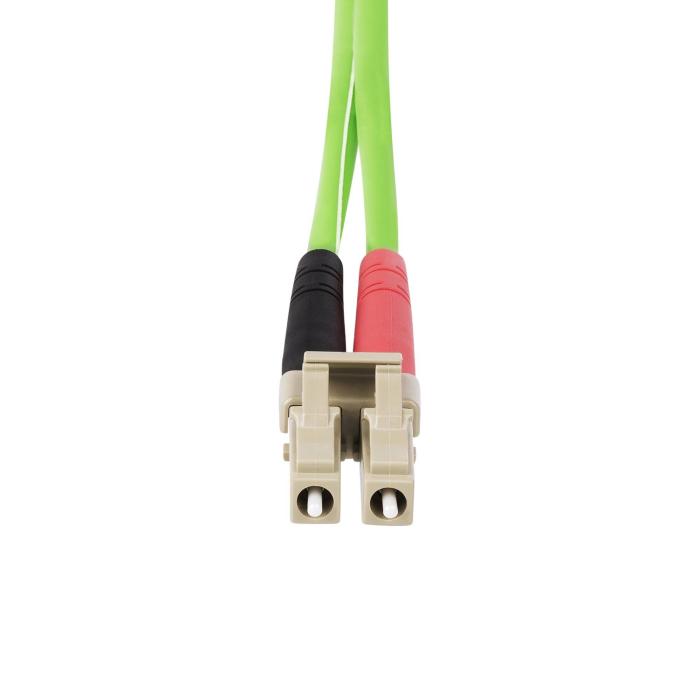

The StarTech.com LC to LC OM5 fibre optic cable, in green with a 15 m cable, connects network equipment with male LC connectors at both ends. It is a LOMM type multimode cable with a 50 µm core and a 125 µm cladding, designed for short and medium distance links. It supports a data transfer rate of up to 100 Gbit/s and operates at wavelengths of 850, 953 and 1300 nm. Its transmission is full duplex, so it allows simultaneous sending and receiving of data. The jacket is made of halogen-free material, which reduces smoke emission in the event of a fire. It has a return loss of 30 dB, a value that helps maintain signal quality in the installation. The product has RoHS and CE certificates of conformity.
Specifications
Features
- Cable length: 15 m
- Fibre optic type: OM5
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Cable type: LOMM
- Product colour: Green
- Full duplex: Yes
- Core diameter: 50 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Multi-mode
- Wavelengths supported: 953,1300,850 nm
- Data transfer rate: 100 Gbit/s
- Return loss: 30 dB
- Jacket material: Low smoke zero halogen (LSZH)
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: RoHS, CE
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
- Cable diameter: 2.9 mm
- Bending radius: 6 cm
Packaging data
- Package width: 220 mm
- Package depth: 200 mm
- Package height: 29 mm
- Package weight: 120 g
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 410 mm
- Master (outer) case height: 450 mm
- Products per master (outer) case: 56 pc(s)
