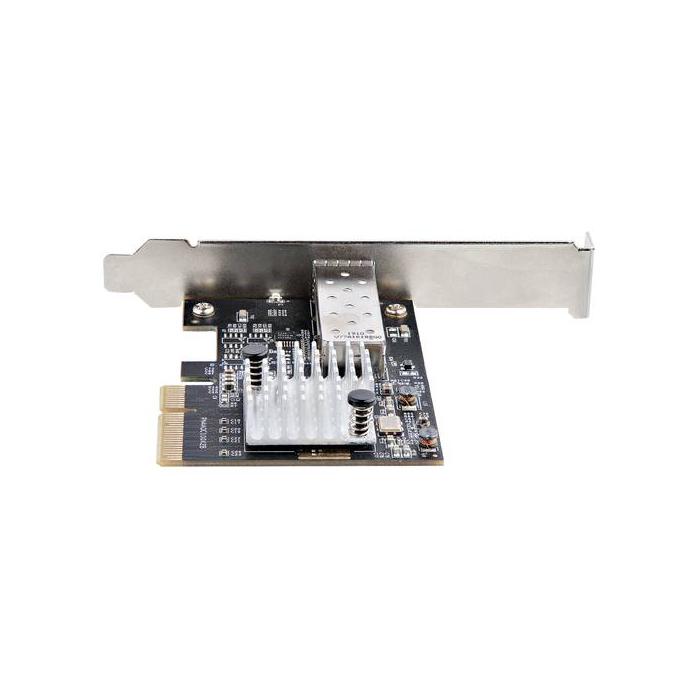

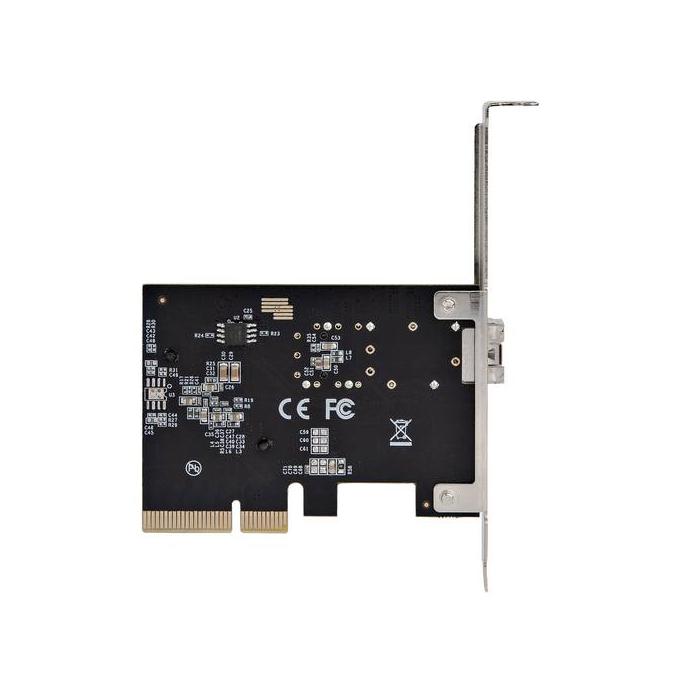

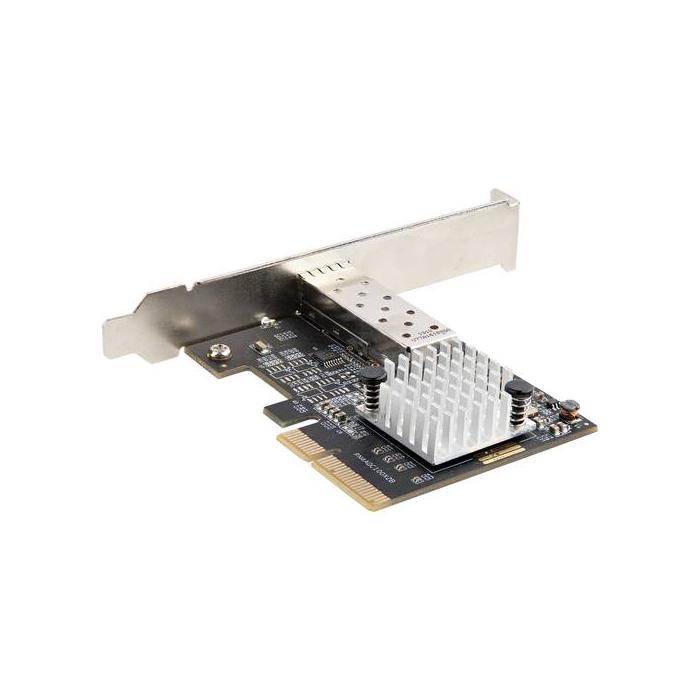

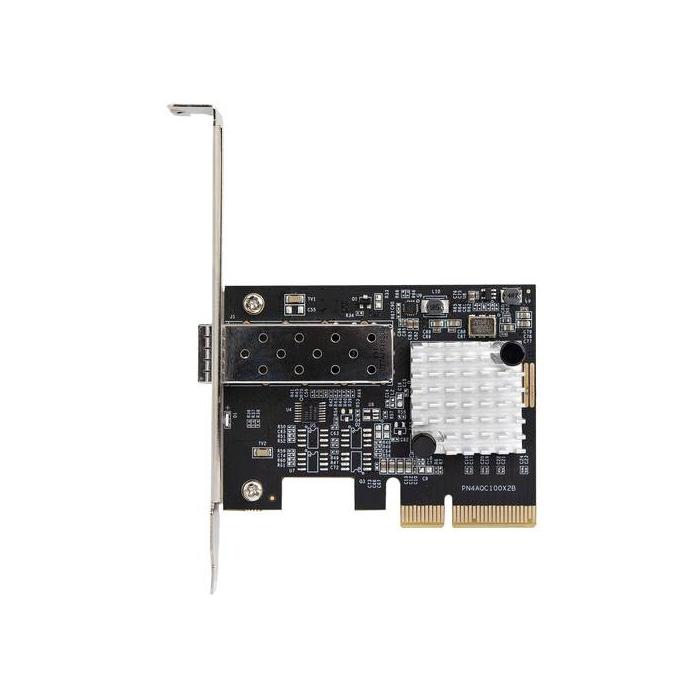

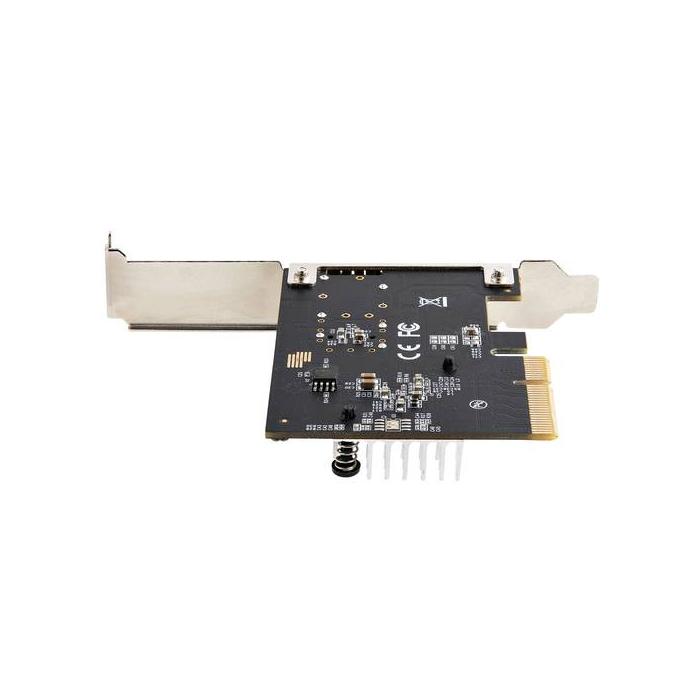

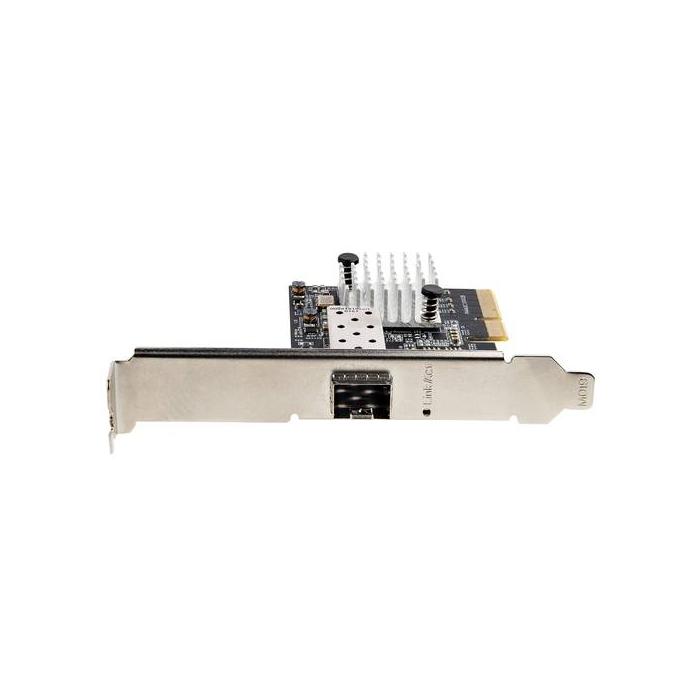

StarTech.com 10G PCIe SFP+ Card - Single SFP+ Port Network Adapter - Open SFP+ for MSA-Compliant Modules/Direct-Attach Cables - 10 Gigabit Fiber PCIe NIC - PCI Express SFP+ Network Card
More info
Brand: STARTECH.COM
153.74 €Stock available: 0 units.
Unavailable
SKU:
91067
PRC:
351537
EAN:
65030891295
PN:
PEX10GSFP
Description
StarTech.com PCI Express network card with 1 SFP+ port, fibre interface and maximum data transfer rate of 20000 Mbit/s, in black. The Aquantia AQC100S chipset and PCI 3.0 version support the wired connection with SFP+ connector, open to MSA modules or direct attach cables. It supports multimode and single-mode fibre mode structure and complies with IEEE 802.1Q, IEEE 802.3ad and IEEE 802.3x network standards. It includes support for 9000 Jumbo frames, flow control, VLAN tagging and full duplex transmission. It is an internal component for PC and offers support for Windows and MAC operating systems. It includes mounting brackets, with dimensions of 18 x 121 x 94 mm (width x height x depth) and a weight of 55 g.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Fiber
- Fiber optic connector: SFP+
- PCI version: 3.0
Network
- Maximum data transfer rate: 20000 Mbit/s
- Networking standards: IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x
- Full duplex: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- VLAN tagging: Yes
- Fiber mode structure: Multi-mode, Single-mode
Design
- Component for: PC
- Product colour: Black
- Internal: Yes
- Chipset: Aquantia AQC100S
System requirements
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
Weight & dimensions
- Width: 18 mm
- Depth: 94 mm
- Height: 121 mm
- Weight: 55 g
Packaging data
- Package width: 210 mm
- Package depth: 145 mm
- Package height: 35 mm
- Package weight: 145 g
Packaging content
- Mounting brackets included: Yes
- Quick installation guide: Yes
Technical details
- Compliance certificates: CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 310 mm
- Master (outer) case length: 355 mm
- Master (outer) case height: 235 mm
- Products per master (outer) case: 20 pc(s)
Other features
- Flow control support: Yes
