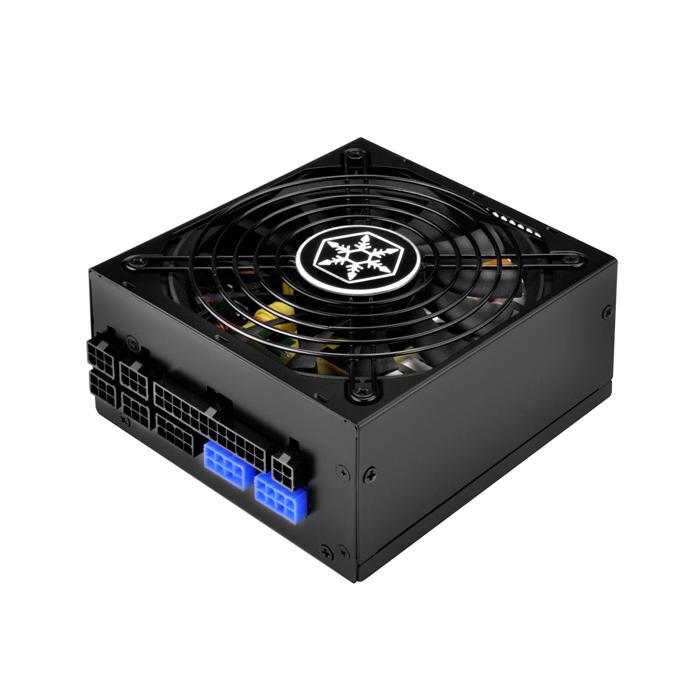

Silverstone SX800-LTI power supply unit 800 W 24-pin ATX SFX Black
More info
Brand: SILVERSTONE
207.89 €
177.69 €
without VAT
Get it
on the
August 18
/
August 19
SKU:
78324
PRC:
148975
EAN:
4710007224397
PN:
SST-SX800-LTI
Description
Specifications
Power
- Total power: 800 W
- Peak power: 850 W
- AC input voltage: 90 - 264 V
- AC input frequency: 47 - 63 Hz
- Power factor: 0.9
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 80 W
- Combined power (+12V): 792 W
- Combined power (+5V): 80 W
- Max output current (+3.3V): 16 A
- Max output current (+12V1): 66 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 94%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 30 cm
- Number of SATA power connectors: 12
- SATA power cable length: 100, 300 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 200, 300 mm
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6-pin): 2
- PCI Express power connectors (8-pin): 2
- ATX Power connector (24-pin): Yes
- ATX Power connector (20-pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Titanium
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- ATX version: 2.4
- Noise level: 36 dB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 125 mm
- Depth: 130 mm
- Height: 63.5 mm
- Weight: 1.7 kg
