Description

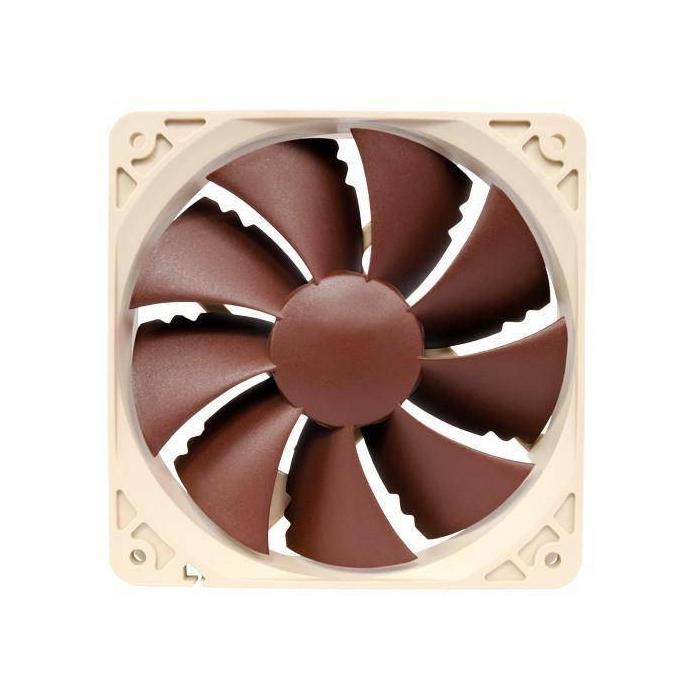

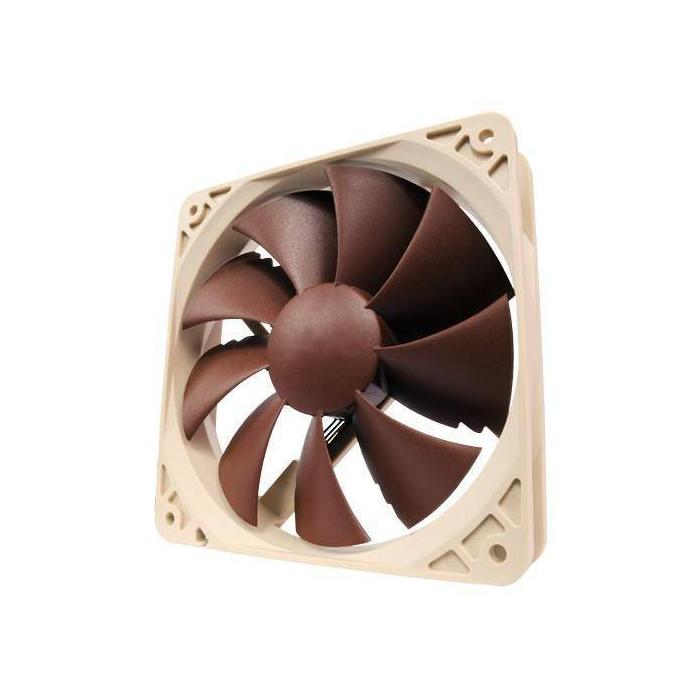

12 cm brown and white computer case fan, model NF-P12 PWM from Noctua, includes a single unit and operates with a 4-pin connector compatible with pulse width modulation. Its SSO bearing offers an estimated lifespan of 150,000 hours, with speeds between 300 and 1300 RPM, and a maximum airflow of 92.3 m³/h that reduces to 63.4 m³/h when using the included LNA adapter. Static pressure reaches 1.68 mmH2O, dropping to 1.21 mmH2O with the adapter, while the noise level remains at a maximum of 12.6 dB. With noise reduction activated, the maximum speed drops to 900 RPM, allowing you to balance cooling and silence as needed.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Rotational speed (min): 300 RPM
- Rotational speed (max): 1300 RPM
- Rotational speed with LNA (max): 900 RPM
- Noise level with LNA (max): 12.6 dB
- Airflow: 92.3 m³/h
- Airflow with LNA (max): 63.4 m³/h
- Maximum air pressure with LNA: 1.21 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Self-Stabilising Oil-pressure (SSO) bearing
- Fan noise level (max): 12.6 dB
- Quantity per pack: 1 pc(s)
- Fan static pressure: 1.68 mmH2O
- Mean time between failures (MTBF): 150000 h
Design
- Product colour: Brown, White
- Fan connector: 4-pin
Power
- Power consumption (typical): 0.6 W
- Voltage: 12 V
- Rated current: 0.05 A
Weight & dimensions
- Width: 120 mm
- Depth: 120 mm
- Height: 25 mm
- Cable length: 0.3 m
Packaging content

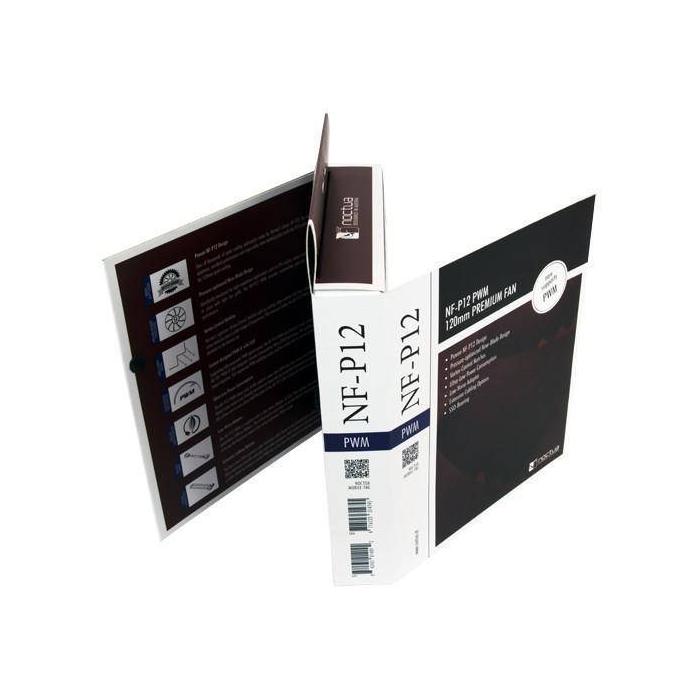

- Package type: Box
- Cables included: 4-pin
- Screws included: Yes
- Number of screws: 4
Other features
- Cooling capacity in watts (max): 0.6 W
- Mounting hole pattern (W x D): 105 x 105 mm
Logistics data
- Harmonized System (HS) code: 84733080
