Description

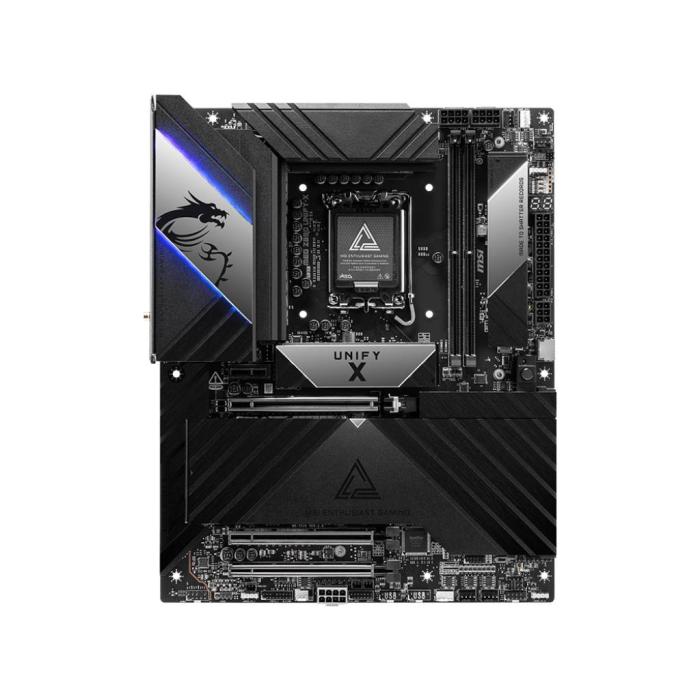

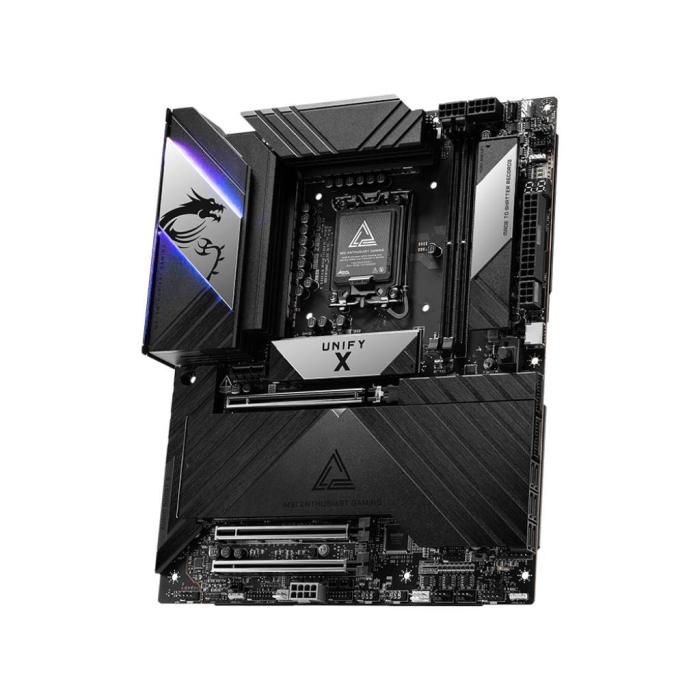

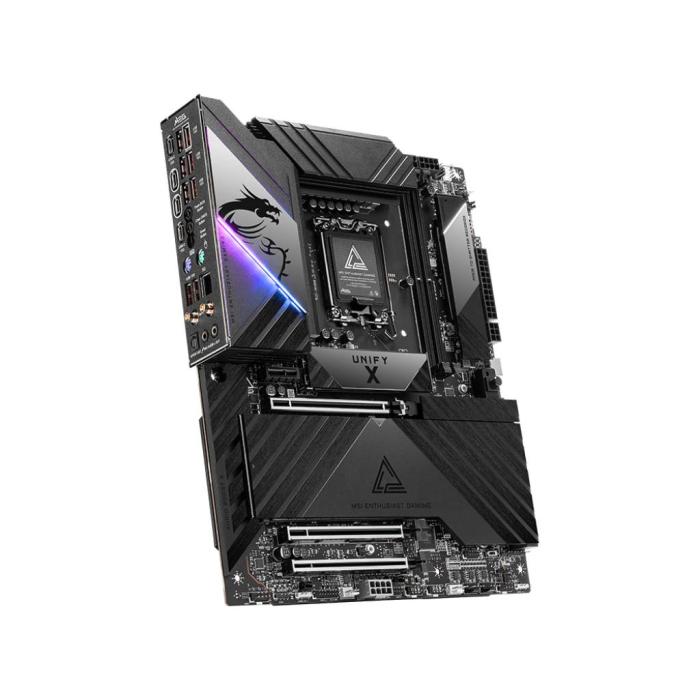

The MSI MEG Z890 UNIFY-X motherboard, in black, is designed for the LGA 1851 socket (Socket V1) and supports Intel Core Ultra (Series 2) processors. It features two DIMM slots for DDR5-SDRAM memory, with dual-channel support and clock speeds of 4800 and 6400 MHz, expandable up to 9600 MHz. Maximum internal memory is 128 GB and compatibility is Non-ECC. As for storage, it offers M.2 and SATA III interfaces, supports HDD and SSD drives, allows RAID 0, 5 and 10 configurations and is compatible with up to six drives. With SATA III and M.2 connectivity, this MSI ATX motherboard covers high-performance builds with latest-generation Intel processors.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel Core Ultra (Series 2)
- Supported processor sockets: Intel LGA1851
- Maximum internal memory supported by processor: 128 GB
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 6400 MHz
- Supported memory clock speed (max): 9600 MHz
- Maximum internal memory: 128 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 5, 10
Graphics
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 4
- Number of SATA III connectors: 6
- Total number of SATA connectors: 6
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1

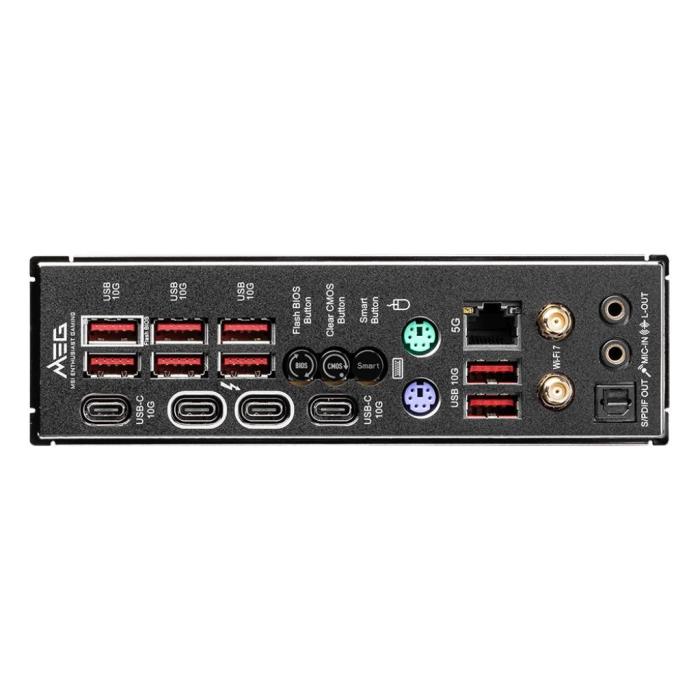

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- Thunderbolt ports quantity: 2
Network
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: Intel Z890
- Audio chip: Realtek ALC4080
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x1 slots: 1
- PCI Express x16 (Gen 5.x) slots: 3
- Number of M.2 (M) slots: 6
Weight & dimensions
- Width: 243.8 mm
- Depth: 304.8 mm
