Description

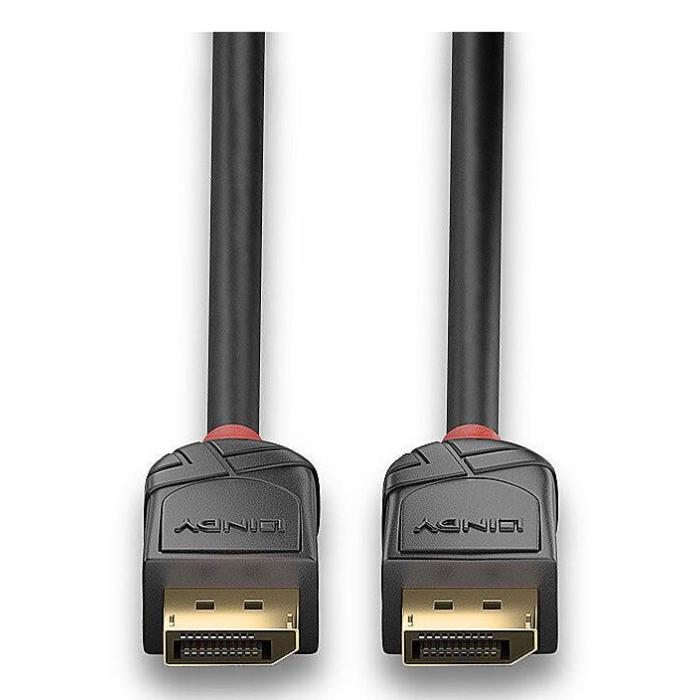

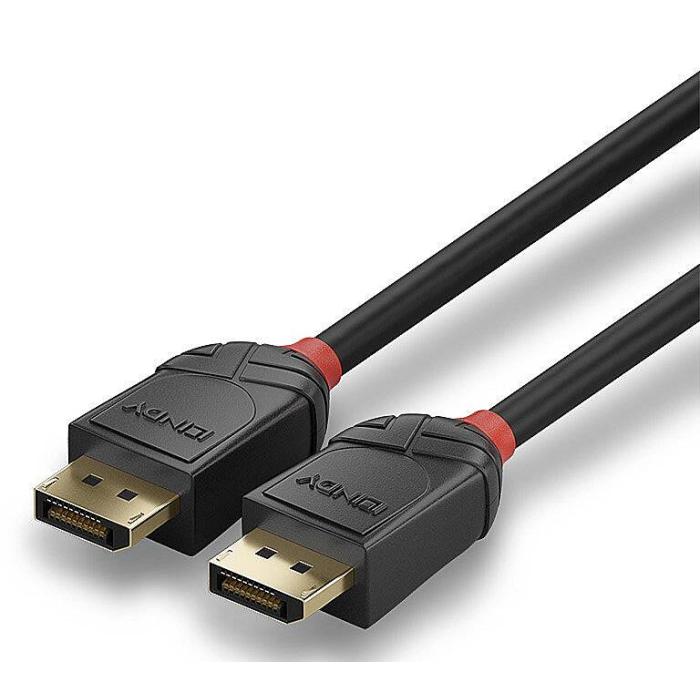

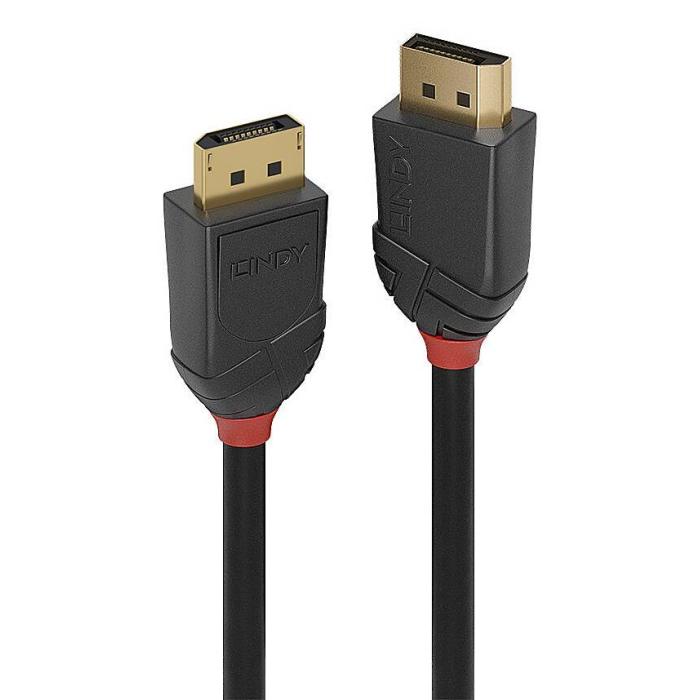

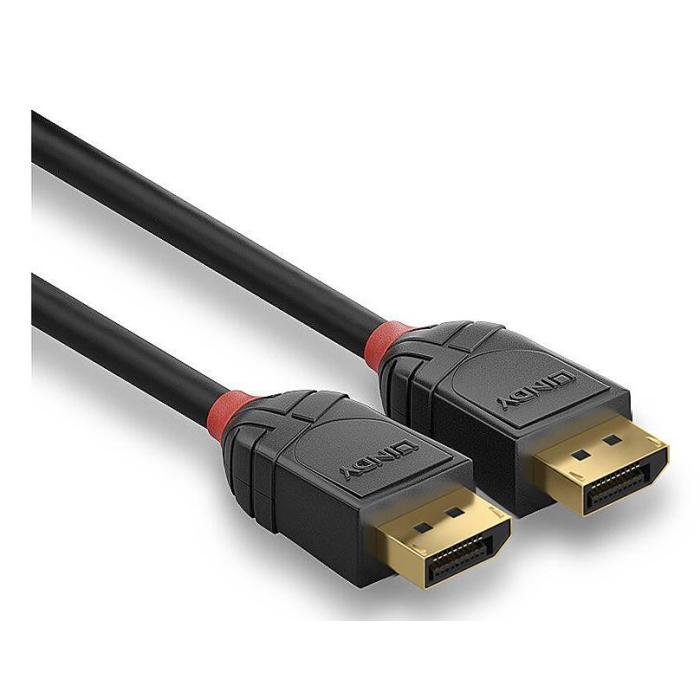

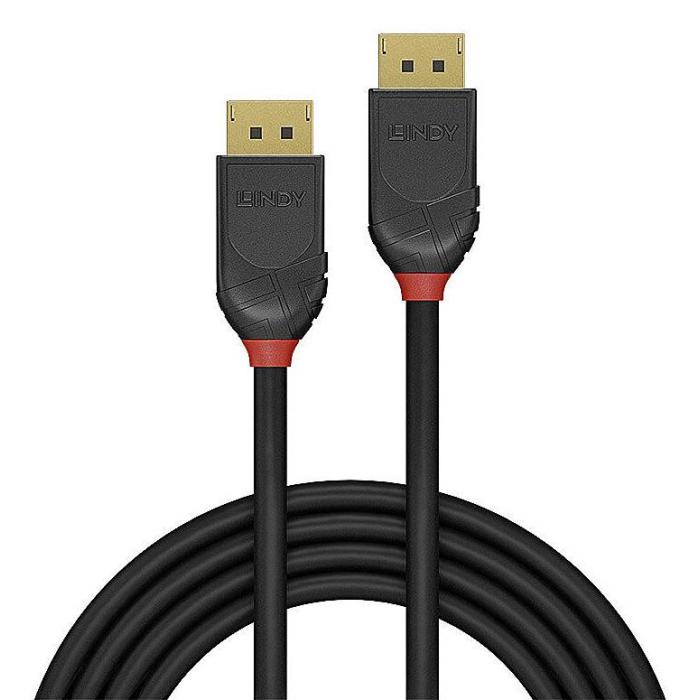

3 m black LINDY DisplayPort cable with straight male DisplayPort connectors at both ends. This round cable is designed to transmit video signal with DisplayPort 2.1 version, offering a maximum refresh rate of 60 Hz and a bandwidth of 80000 MB/s. Its construction includes nickel-plated contacts, AWG 30 gauge and a PVC jacket, with ABS-coated connectors. It is compatible with resolutions up to 16360 x 8640 pixels, maintaining controlled attenuation in the range of 100 MHz to 13500 MHz as per the indicated specifications.
Specifications
Features
- Connector 2 form factor: Straight
- Connector contacts plating: Nickel
- DisplayPort version: 2.1
- Maximum resolution: 16360 x 8640 pixels
- Maximum refresh rate: 60 Hz
- Cable length: 3 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- AWG wire size: 30
- Bandwidth: 80000 MB/s
- Cable type: Round cable
- Nominal attenuation: 100 MHz - 450 MHz < 5.1 dB 450 MHz - 8100 MHz < 33.28 dB 8100 MHz - 13500 MHz < 38.0 dB
- Connector 1 form factor: Straight
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Compliance certificates: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 7 mm
- Connector 1 dimensions (WxDxH): 20.7 x 42.6 x 13 mm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
