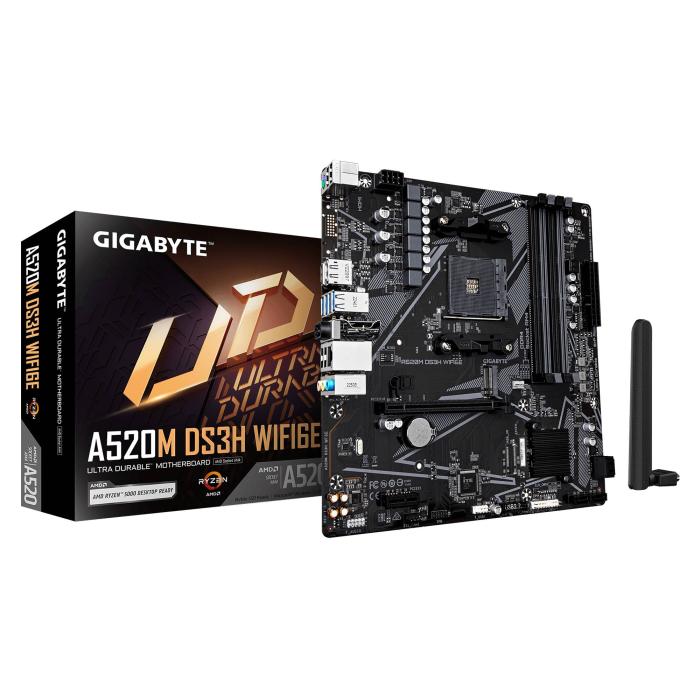

GIGABYTE A520M DS3H WIFI6E Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), 1xPCIe 3.0 M.2, WIFI 6E, GbE LAN, USB 3.2 Gen 1
More info
Brand: GIGABYTE
97.60 €
83.42 €
without VAT
incl. 17 % VAT · Shipping to Luxembourg
Stock available: 1 ud.
Get it
on the
October 7
/
October 8
SKU:
134084
PRC:
677127
EAN:
4719331880743
PN:
A520M DS3H WF6E
Description

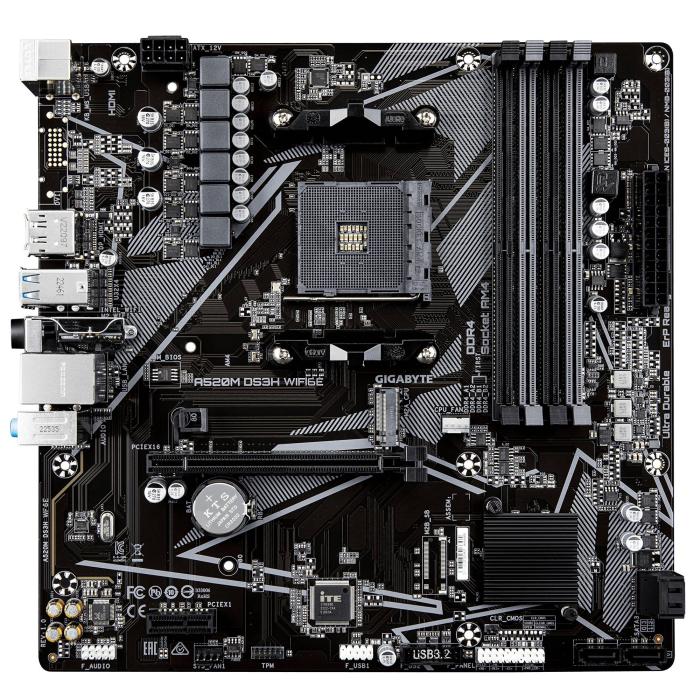

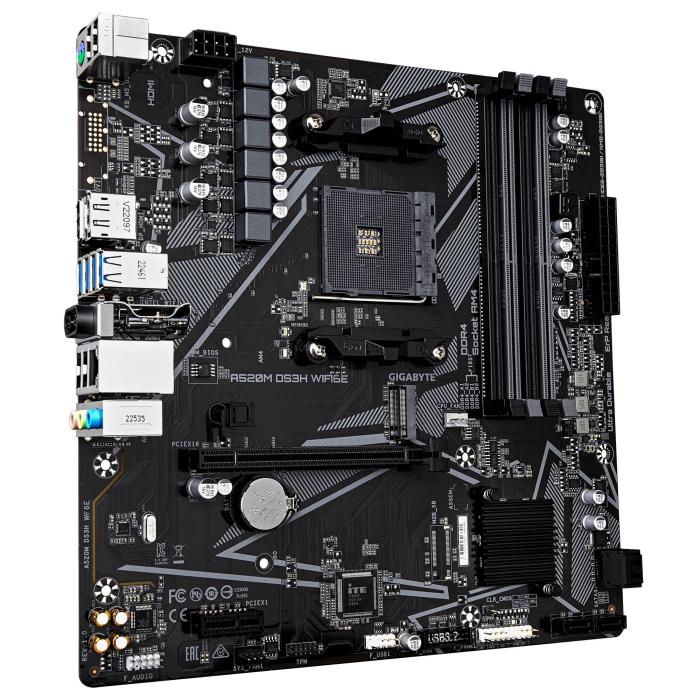

The GIGABYTE A520M DS3H WIFI6E motherboard is a motherboard with AM4 socket compatible with AMD Ryzen 3000 Series, AMD Ryzen 4000 Series and AMD Ryzen 5000 Series processors, AMD A520 chipset and dark brown colour. It supports DDR4-SDRAM memory with a maximum supported clock speed of 4733 MHz and maximum internal memory of 128 GB, with support for speeds of 2133, 2400, 2667, 2933, 3200, 3600, 4000, 4400 and 4733 MHz, as well as ECC and non-ECC compatibility. It features Wi-Fi 6E (802.11ax) and Gigabit Ethernet. Its dimensions are 244 x 35 x 244 mm (width x height x depth) and it weighs 880 g. For storage it offers M.2 and SATA III interfaces for HDD and SSD, with RAID compatibility. It has 4 USB 2.0 ports and 4 USB 3.2 Gen 1 Type-A ports on the rear panel, along with 1 HDMI port, and reaches a maximum resolution of 5120 x 2880 pixels with HDCP version 2.3.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
- Supported processor sockets: Socket AM4
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133, 2400, 2667, 2933, 3200, 3600, 4000, 4400, 4733, 3400, 3466, 3733, 3866, 4133, 4266, 4600 MHz
- Supported memory clock speed (max): 4733 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 32 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 5
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 5120 x 2880 pixels
- HDCP: Yes
- HDCP version: 2.3
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 1
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- 12V power connector: Yes

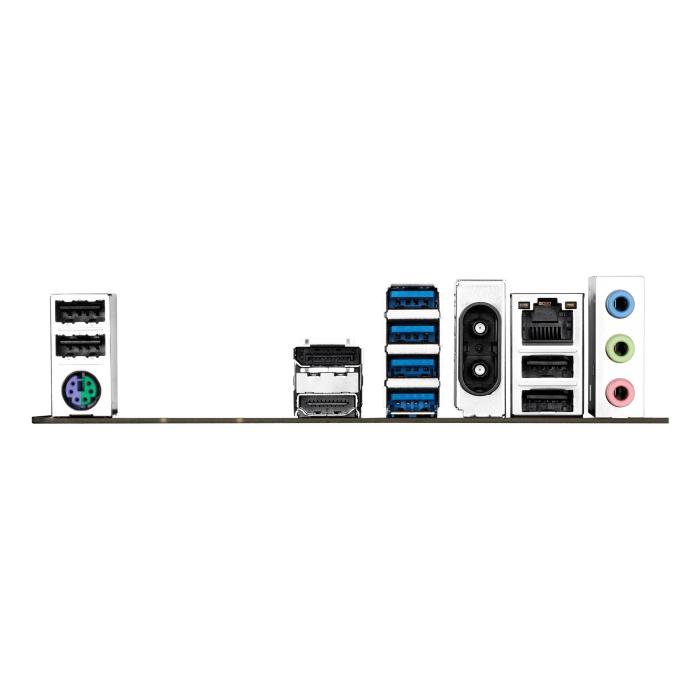

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- WiFi-AP antenna jack: 2
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet, Fast Ethernet
- LAN controller: Realtek RTL8111H
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: MediaTek MT7902
- Bluetooth: Yes
- Bluetooth version: 5.3
Features
- Motherboard chipset: AMD A520
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Dark brown
- PC health monitoring: Temperature, Voltage, Fan
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 3.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 270 mm
- Package depth: 268 mm
- Package height: 68 mm
- Package weight: 972 g
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
Packaging content
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Drivers included: Yes
- Bundled software: Norton® Internet Security (OEM version)
Other features
- Weight: 880 g
Technical details
- Warranty period: 3 year(s)
