Description

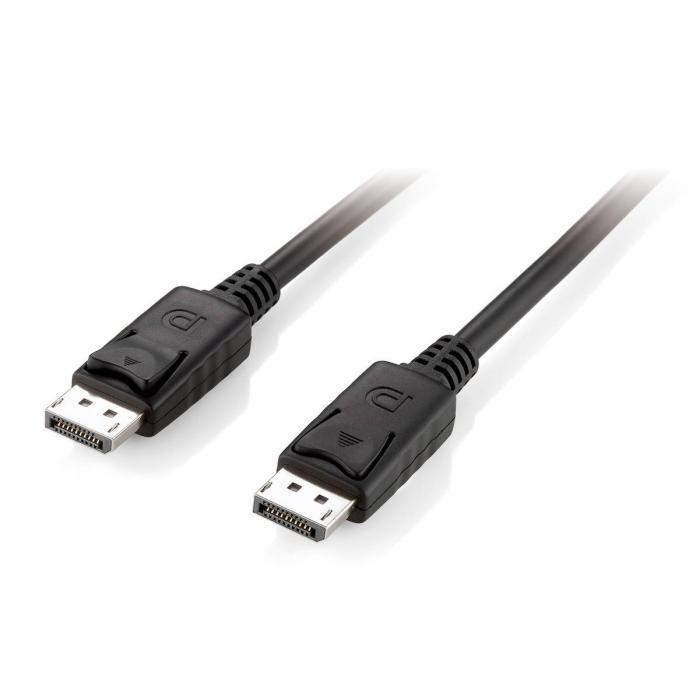

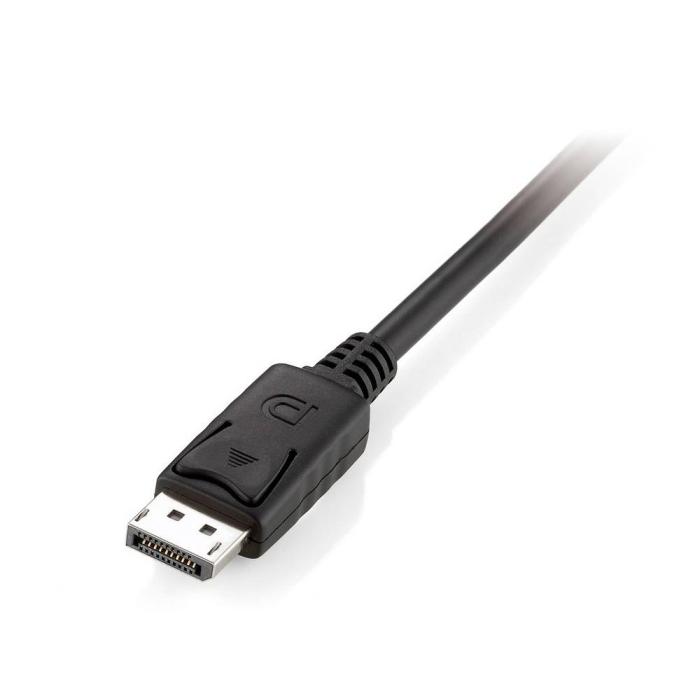

The EQUIP DisplayPort 1.2 cable, in black and with a 10 m cable, connects devices with male DisplayPort connectors at both ends, thanks to its two straight terminals. It supports resolutions of up to 3840 x 2160 pixels at 60 Hz and is compatible with 1920 x 1200 (WUXGA), 2560 x 1440 and 3840 x 2160, with a data transfer rate of 21.6 Gbit/s. Its contacts are nickel-plated and the cable jacket is made of polyvinyl chloride (PVC), while the conductor uses copper-coated steel. With dimensions of 20 x 10000 x 13 mm and a weight of 530 g, it is suitable for installations that require long runs between the device and the screen. It has RoHS certification and complies with the applicable sustainability criteria.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Nickel
- DisplayPort version: 1.2
- Maximum resolution: 3840 x 2160 pixels
- Supported graphics resolutions: 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
- Maximum refresh rate: 60 Hz
- Cable length: 10 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black
- Cable material: Copper-clad steel (CCS)
- Jacket material: Polyvinyl chloride (PVC)
- Data transfer rate: 21.6 Gbit/s
Certificates
- Compliance certificates: RoHS
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Weight: 530 g
Packaging data
- Package width: 250 mm
- Package depth: 15 mm
- Package height: 335 mm
- Package type: Polybag
- Package weight: 550 g
Logistics data
- Country of origin: China
- Master (outer) case width: 300 mm
- Master (outer) case length: 280 mm
- Master (outer) case height: 490 mm
- Master (outer) case gross weight: 6.6 kg
- Products per master (outer) case: 10 pc(s)
Other features
- Depth: 13 mm
- Height: 10000 mm
- Width: 20 mm
