be quiet! Straight Power 12 power supply unit 750 W 20+4 pin ATX ATX Black
be quiet! Straight Power 12, 750 W, 110 - 240 V, 820 W, 50 - 63 Hz, 10/5 A, 130 W.
More infoBrand: BE QUIET!
170.57 €
145.79 €
without VAT
incl. 17 % VAT · Shipping to Luxembourg
Stock available: 10 units.
Get it
on the
October 7
/
October 8
SKU:
101129
PRC:
447371
EAN:
4260052189412
PN:
BN336
Description

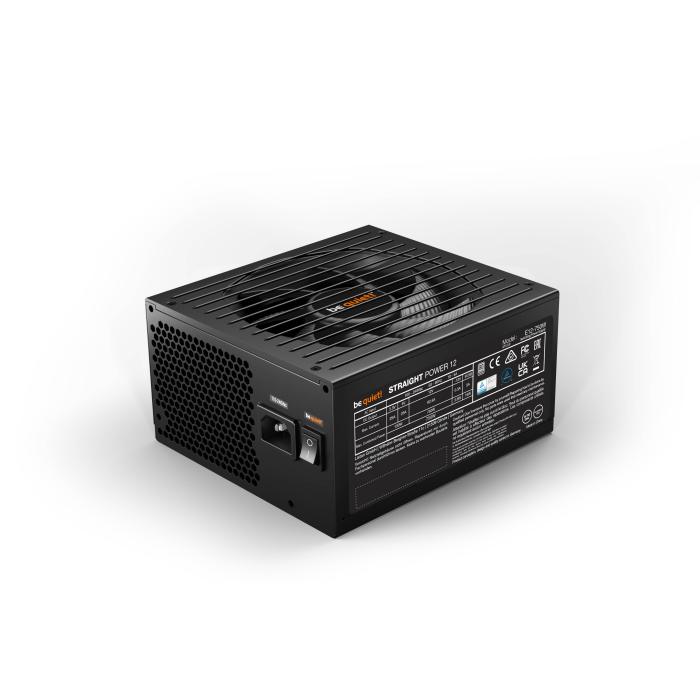

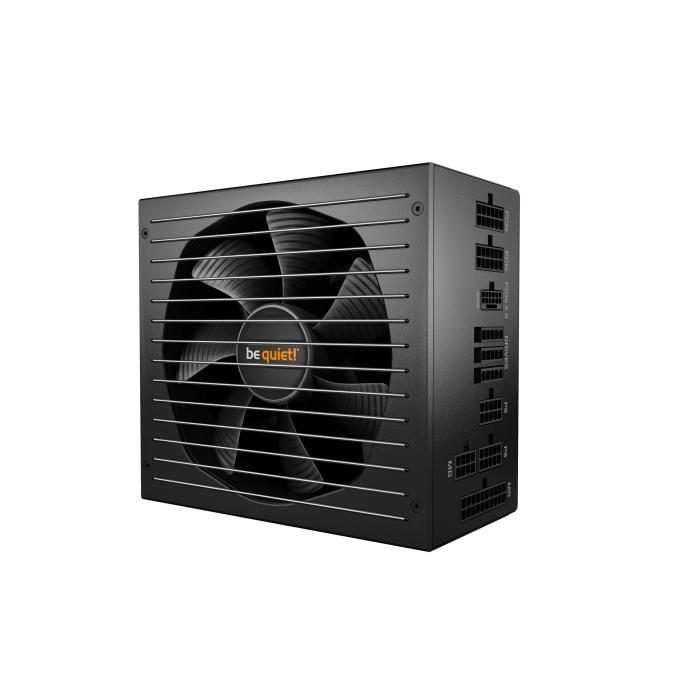

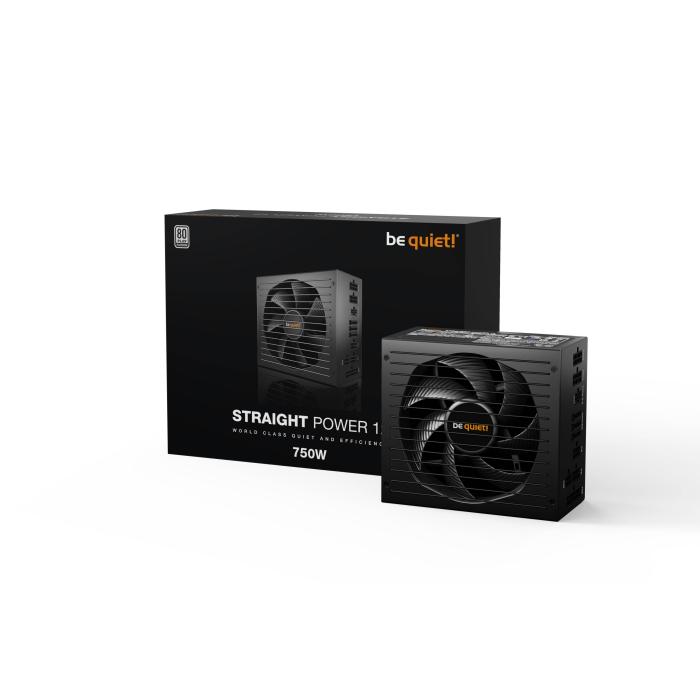

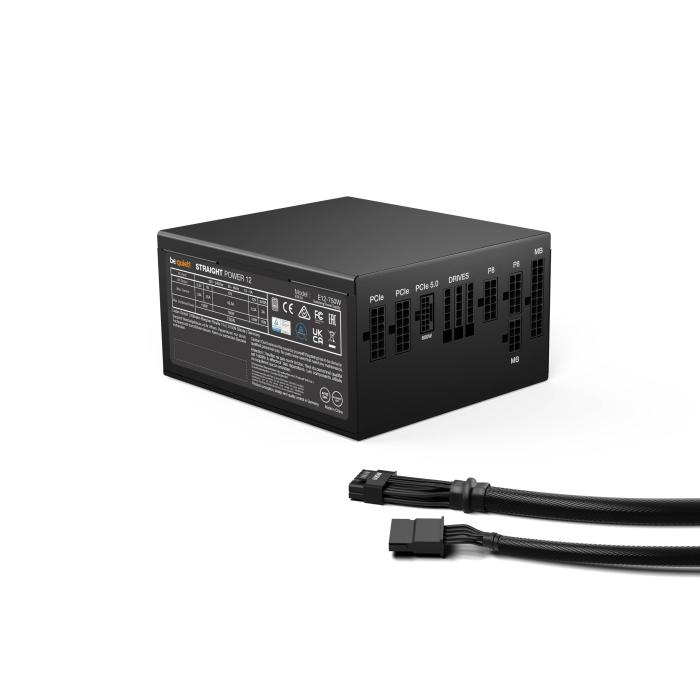

be quiet! Straight Power 12 power supply unit 750 W, black, with dimensions of 160 x 86 x 150 mm and a weight of 1.76 kg. Supports an AC input voltage of 110 - 240 V with a frequency of 50 - 63 Hz and an input current of 10/5 A, plus a power factor of 0.99. It reaches an efficiency of 93.8% and offers a total power of 750 W, with a combined power of 750 W on the +12 V rail and 130 W on the 3.3 V rail. It distributes its output across maximum currents of 62.5 A for +12V, 25 A for +3.3V and +5V, 3 A for +5Vsb and 0.3 A for -12V, with a hold-up time of 24.8 ms. It includes four 6 + 2 pin PCI Express power connectors and a 4 pin Molex peripheral connector. Its protection features cover overcurrent, overvoltage, overvoltage, overheating and undervoltage, which contributes to stable operation of the equipment.
Specifications
Power
- Total power: 750 W
- Peak power: 820 W
- AC input voltage: 110 - 240 V
- AC input frequency: 50 - 63 Hz
- Input current: 10/5 A
- Power factor: 0.99
- Combined power (+3.3V): 130 W
- Combined power (+12V): 750 W
- Max output current (+3.3V): 25 A
- Max output current (+12V): 62.5 A
- Max output current (+5V): 25 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Hold time: 24.8 ms
- Efficiency: 93.8%
- Power protection features: Over current, Over power, Over voltage, Overheating, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 9
- Number of PATA power connectors: 2
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- Floppy disk drive connector: No
- Cabling type: Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Supported motherboard form factors: ATX, micro ATX, Mini-ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.0
- EPS version: 2.92
- Noise level: 20.8 dB
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

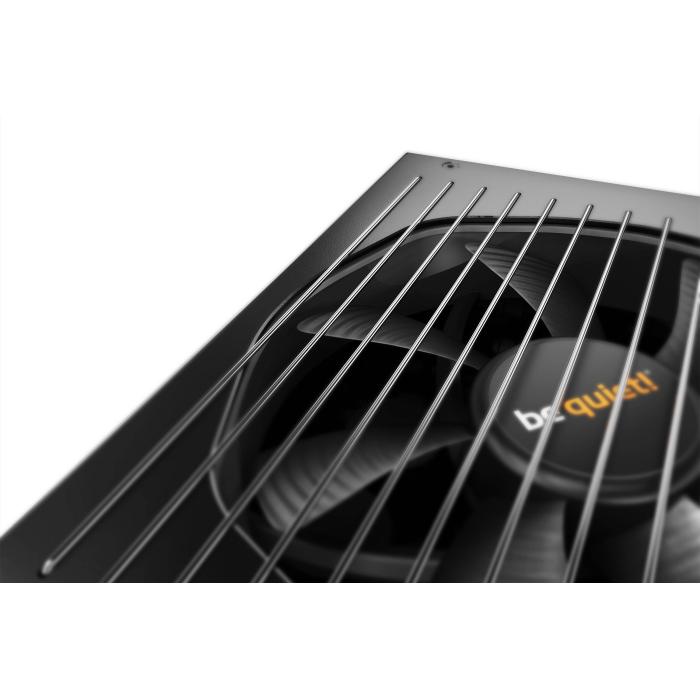

- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 1800 RPM
- Fan location: Top
- Built-in display: No
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content

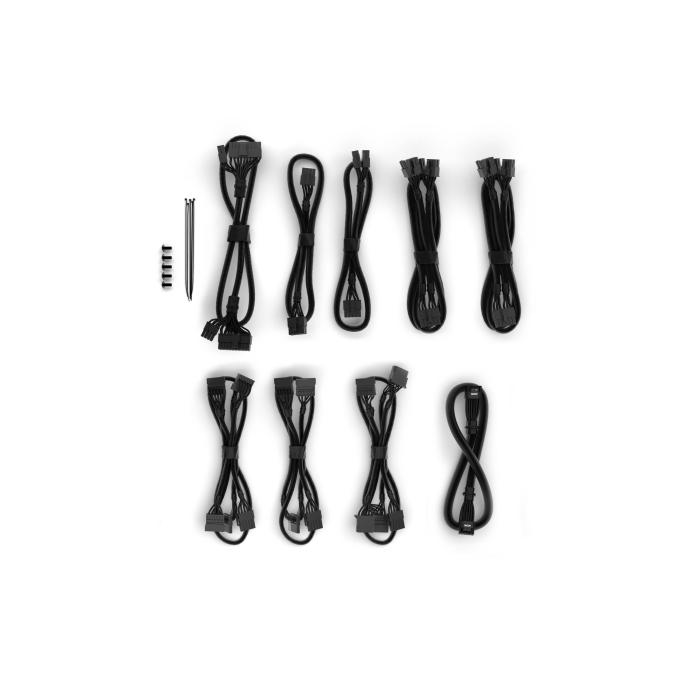

- Cables included: CPU, SATA
- Cable tie(s) included: Yes
Weight & dimensions
- Width: 160 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.76 kg
Packaging data
- Package width: 328 mm
- Package depth: 248 mm
- Package height: 102 mm
- Package weight: 3.47 kg
- Package type: Box
Technical details
- Sustainability compliance: Yes
- Sustainability certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
- Warranty period: 10 year(s)
