Description

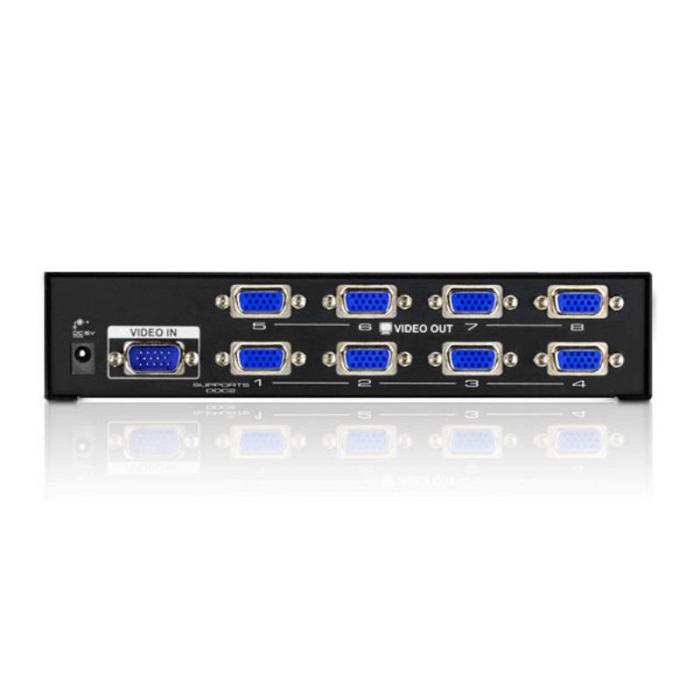

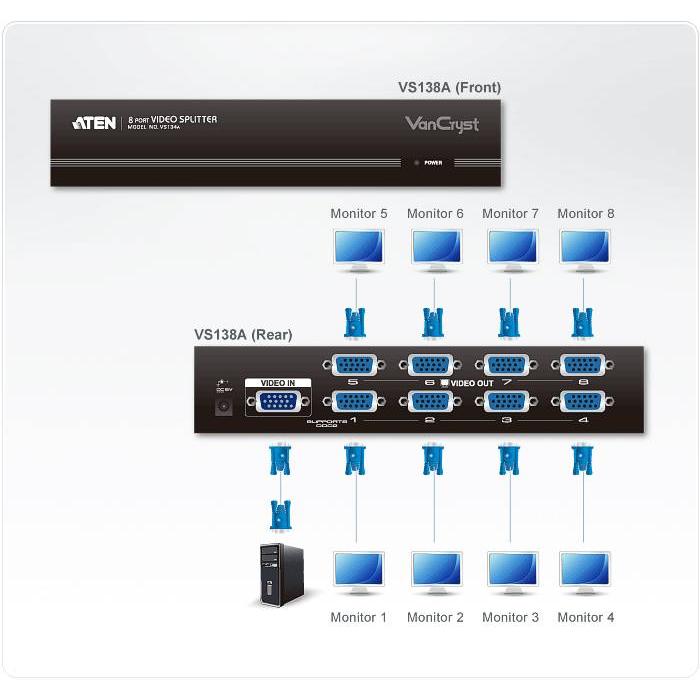

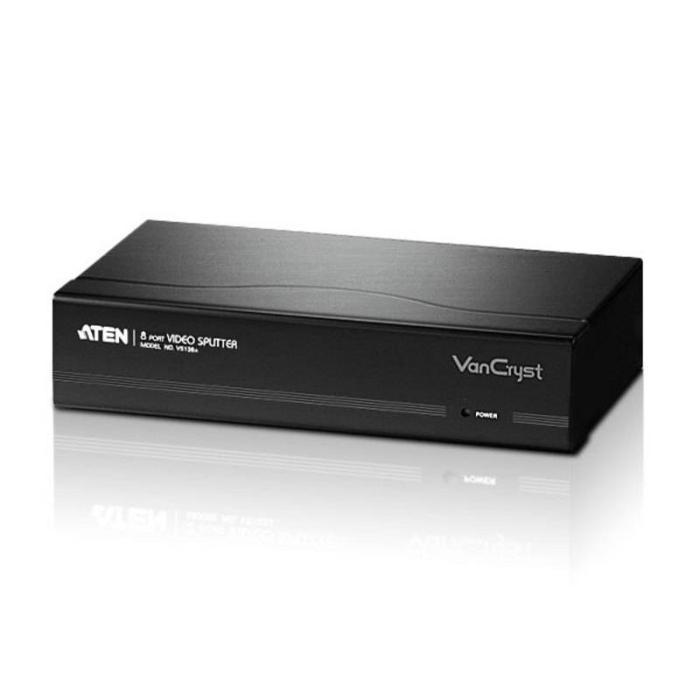

The ATEN VS138A video splitter distributes a single VGA signal to eight screens, thanks to its male HDB-15 input and its eight VGA outputs. It reaches a maximum resolution of 2048 x 1536 pixels and works with a bandwidth of 450 MHz, so it maintains image quality on each connected monitor. Its metal casing, in black, protects the equipment in fixed installations, and its weight of 690 g with dimensions of 200 x 75.1 x 44 mm make it a compact and durable device. The maximum operating distance is 30 metres, enough to carry the signal to screens far from the source point. It is powered via a 5 V direct current input plug, with an energy consumption of 2.25 W. It supports an operating temperature range of 0 to 50 °C and a storage range of -20 to 60 °C, with an operating relative humidity of between 0 and 80 %.
Specifications
Ports & interfaces
- Video port type: VGA
- Video in: 1 x HDB-15 Male (Blue)
- Video out: 8x VGA
- Video ports quantity: 8
- DC-in jack: Yes
Features
- Product colour: Black
- Housing material: Metal
- Maximum resolution: 2048 x 1536 pixels
- Maximum operating distance: 30 m
- Bandwidth: 450 MHz
Power
- AC input voltage: 5 V
- Power consumption (typical): 2.25 W
Weight & dimensions
- Dimensions (WxDxH): 200 x 75.1 x 44 mm
- Weight: 690 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
