Description

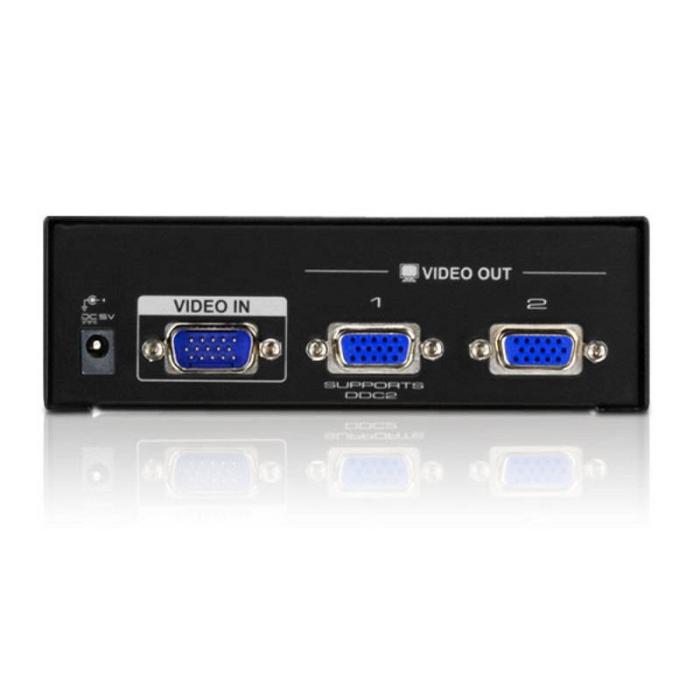

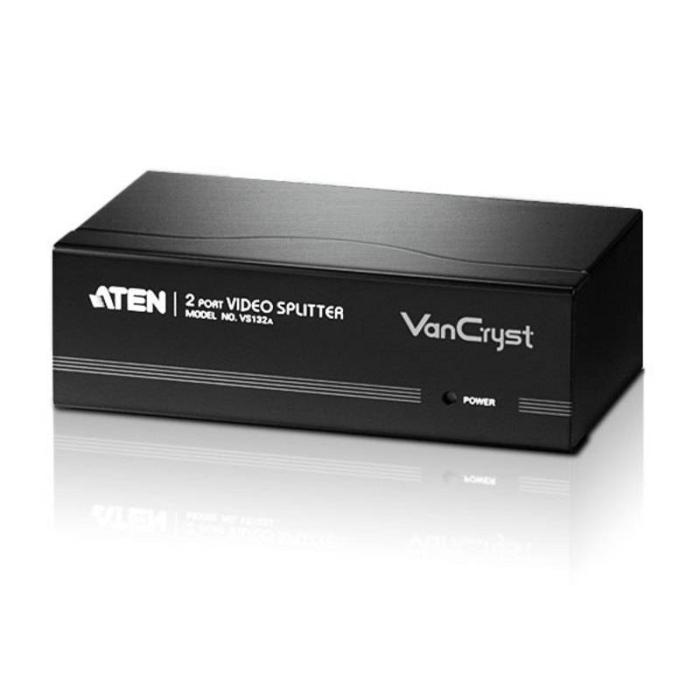

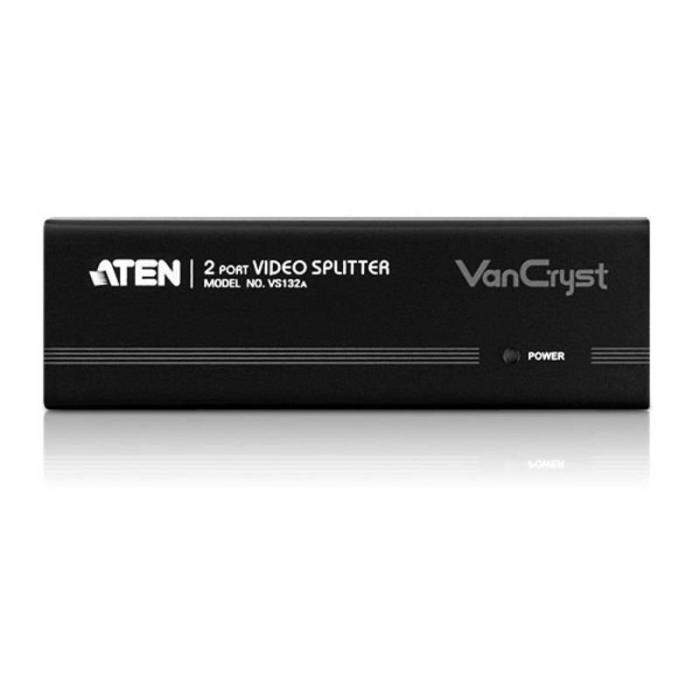

ATEN 2-port VGA splitter with a black metal housing. It distributes the video signal to two VGA outputs, so you can duplicate the same image on two screens. It reaches a maximum resolution of 2048 x 1536 pixels and supports the HD QXGA type. Its 450 MHz bandwidth sustains the signal with quality at operating distances of up to 30 m. It includes a power LED indicator so you always know it is running. Power consumption is only 0.62 W and it is powered via a 5 V DC input plug. It has dimensions of 75.1 x 44 x 130 mm (width x height x depth) and a weight of 513 g.
Specifications
Ports & interfaces
- Video port type: VGA
- Video out: 2x VGA
- Video ports quantity: 3
- DC-in jack: Yes
Features
- Product colour: Black
- Housing material: Metal
- Maximum resolution: 2048 x 1536 pixels
- HD type: QXGA
- Maximum operating distance: 30 m
- Bandwidth: 450 MHz
- LED indicators: Power
Power
- AC input voltage: 5 V
- Power consumption (typical): 0.62 W
Weight & dimensions
- Width: 75.1 mm
- Depth: 130 mm
- Height: 44 mm
- Weight: 513 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 660 g
Packaging content
- Manual: Yes
- AC adapter included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Logistics data
- Master (outer) case length: 490 mm
- Master (outer) case height: 338 mm
- Master (outer) case gross weight: 14 kg
- Products per master (outer) case: 20 pc(s)
- Master (outer) case net weight: 10.3 kg
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 315 mm
