Description

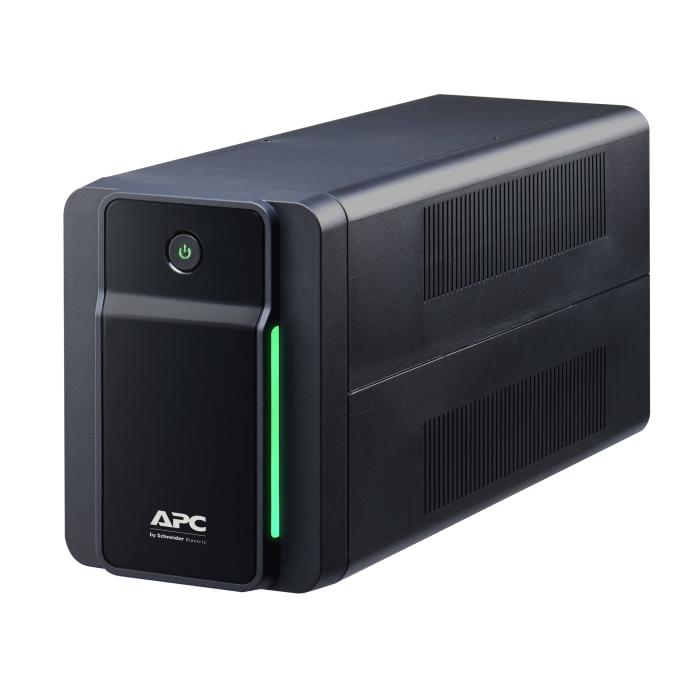

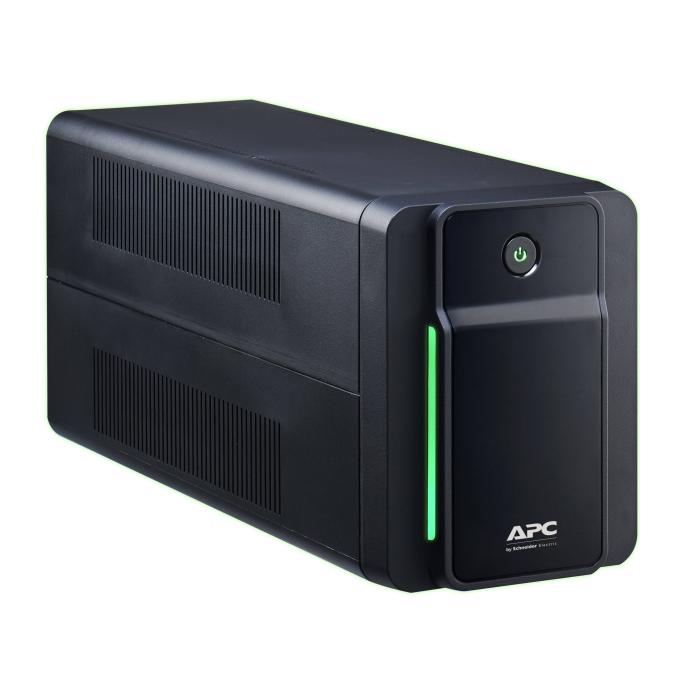

The APC BX750MI UPS, in black, protects your equipment against power cuts and fluctuations with a line-interactive topology and an output power capacity of 0.75 kVA and 410 W. It incorporates automatic voltage regulation (AVR) to stabilise the output voltage at 230 V, with a voltage regulation of 10% and a frequency regulation of 0.5 Hz, as well as a sine wave form. Its minimum operating input voltage is 140 V and it works with an input and output frequency of 50/60 Hz. It offers a response time of 6 ms and overload protection, along with a surge energy rating of 273 J. It features a low battery audible alarm and a noise level of 40 dB. Its four AC outlets allow several devices to be connected at once. With dimensions of 120 x 160 x 355 mm (width x height x depth), a weight of 5.4 kg and a 1.2 m cable, it integrates easily into your installation.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 0.75 kVA
- Output power: 410 W
- Waveform: Sine
- Input operation voltage (min): 140 V
- Input operation voltage (max): 300 V
- Input frequency: 50/60 Hz
- Output operation voltage (min): 230 V
- Output operation voltage (max): 230 V
- Output frequency: 50/60 Hz
- Output frequency regulation: 0.5 Hz
- Output voltage regulation: 10%
- Automatic Voltage Regulation (AVR): Yes
- Surge energy rating: 273 J
- Response time: 6 ms
- Input power factor: 0.63
- Noise level: 40 dB
- Surge protection: Yes
- Audible alarm(s): Yes
- Audible alarm modes: Low battery alarm

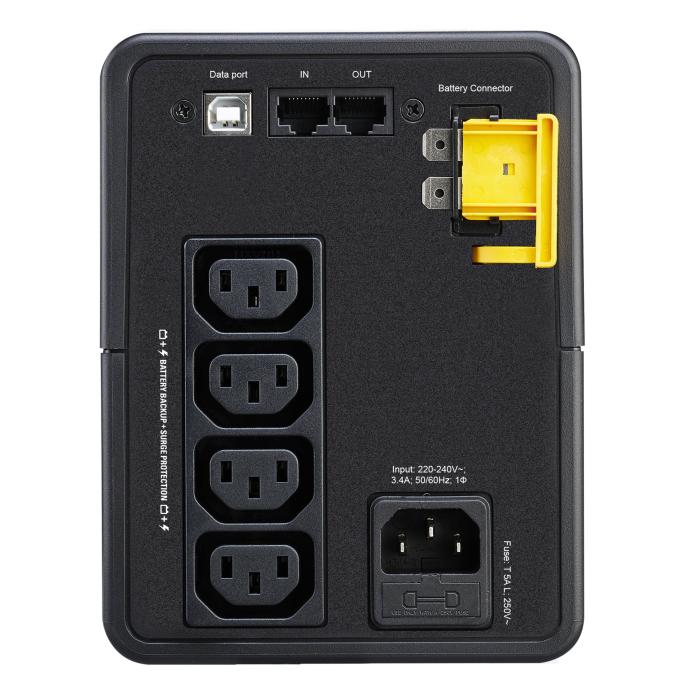

Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 4 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB port type: USB Type-B
- Ethernet LAN (RJ-45) ports: 2
Battery
- Battery technology: Sealed Lead Acid (VRLA)

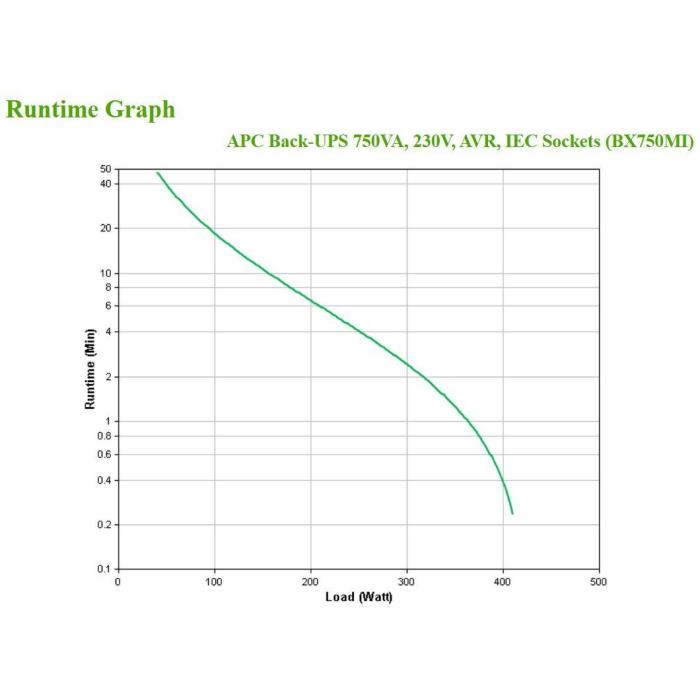

- Typical backup time at full load: 1 min
- Typical backup time at half load: 8.5 min
- Battery life (max): 2 year(s)
- Battery recharge time: 6 h
Design
- Form factor: Compact
- Cable length: 1.2 m
- Product colour: Black
- LED indicators: Yes
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
Certificates
- Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
- Compliance certificates: RoHS
Packaging content
- Cables included: Input power cable
- Manual: Yes
Weight & dimensions
- Width: 120 mm
- Depth: 355 mm
- Height: 160 mm
- Weight: 5.4 kg
Packaging data
- Package width: 197 mm
- Package depth: 430 mm
- Package height: 250 mm
- Package weight: 5.9 kg
Logistics data
- Harmonized System (HS) code: 85078000
