Description

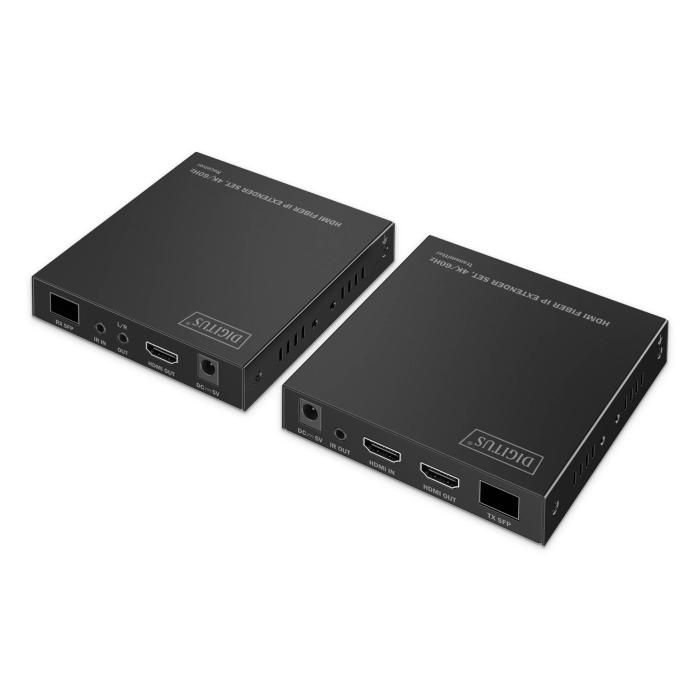

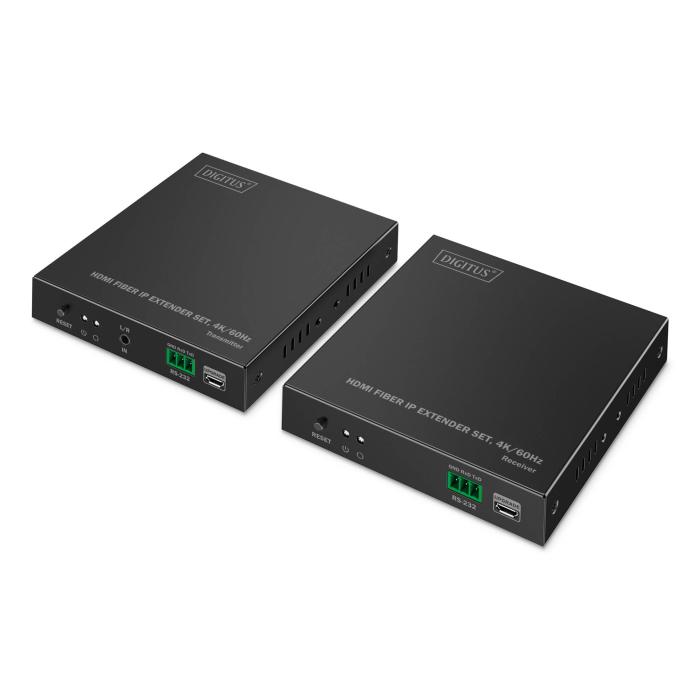

The DIGITUS HDMI Fibre IP Extender Set, in its black variant and with a structure compatible with multimode and single-mode fibre, is a transmitter and receiver that enables video signal transmission up to a resolution of 3840 x 2160 pixels at 60 Hz with a bandwidth of 18 Gbit/s. This device, made of metal and with wall mounting, includes two fibre channel ports and one RS-232 input port, as well as support for RS-232 pass-through and electrostatic discharge protection. It incorporates LED indicators and is compatible with HDCP versions 1.4 and 2.2, achieving a maximum transfer distance of 40,000 metres.
Specifications
Features
- Type: Transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: Fiber
- Maximum transfer distance: 40000 m
- Maximum refresh rate: 60 Hz
- Fiber mode structure: Multi-mode, Single-mode
- RS-232 pass-through: Yes
- Electrostatic Discharge (ESD) protection: Yes
- LED indicators: Yes
- Supported video modes: 2160p
- Bandwidth: 18 Gbit/s
- HDCP: Yes
- Material: Metal
- Wall mountable: Yes
- HDCP version: 1.4/2.2
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- HDMI in: 1
- Number of HDMI outputs: 2
- HDMI version: 2.0
- Fiber optic connector: SFP
- Fiber ports quantity: 2
- USB ports quantity: 2
- USB connector type: Micro-USB
- RS-232 input ports: 1
- RS-232 output ports: 1
- 3.5 mm (1/8-inch) in: Yes
- 3.5 mm (1/8-inch) out: Yes
- Remote (IR) input: 2
- Remote (IR) output: 2
- DC-in jack: Yes
Power
- Power source type: DC
- Operating voltage (transmitter): 5 V
- Output current: 2 A
- Operating voltage (receiver): 5 V
- Power consumption (transmitter) (max): 7.5 W
- Power consumption (receiver) (max): 7.5 W
- External power adapter: Yes
Operational conditions
- Operating temperature (T-T): -10 - 50 °C
Weight & dimensions
- Receiver dimensions (WxDxH): 103 x 106 x 26 mm
- Receiver weight: 286 g
- Transmitter dimensions (WxDxH): 103 x 106 x 26 mm
- Transmitter weight: 290 g
Packaging data
- Package width: 176 mm
- Package depth: 240 mm
- Package height: 80 mm
- Package weight: 1.14 kg
Packaging content
- AC adapter included: Yes
- Cables included: IR
- Quick start guide: Yes
- Mounting brackets included: Yes
- Mounting kit: Yes
