Description

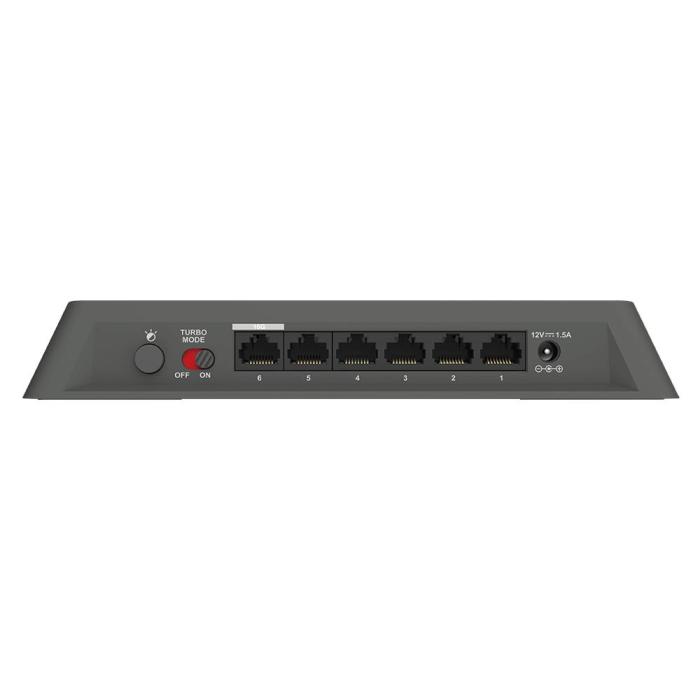

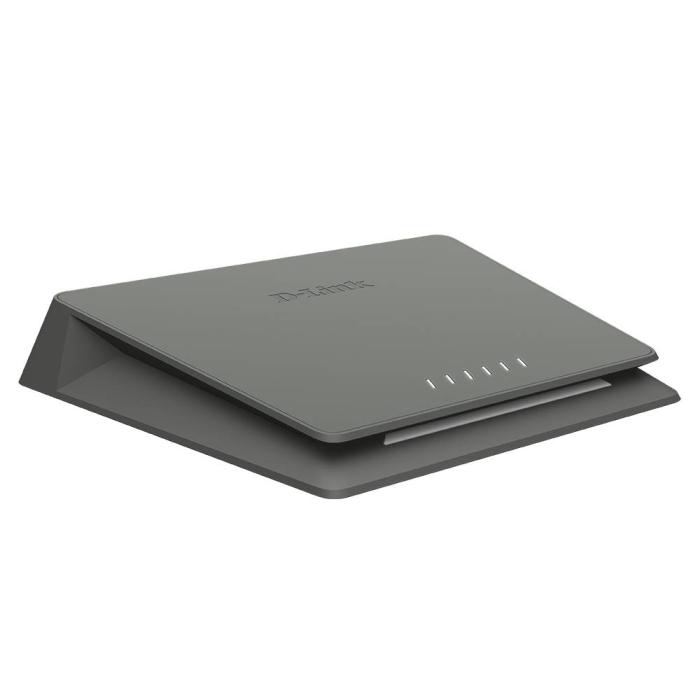

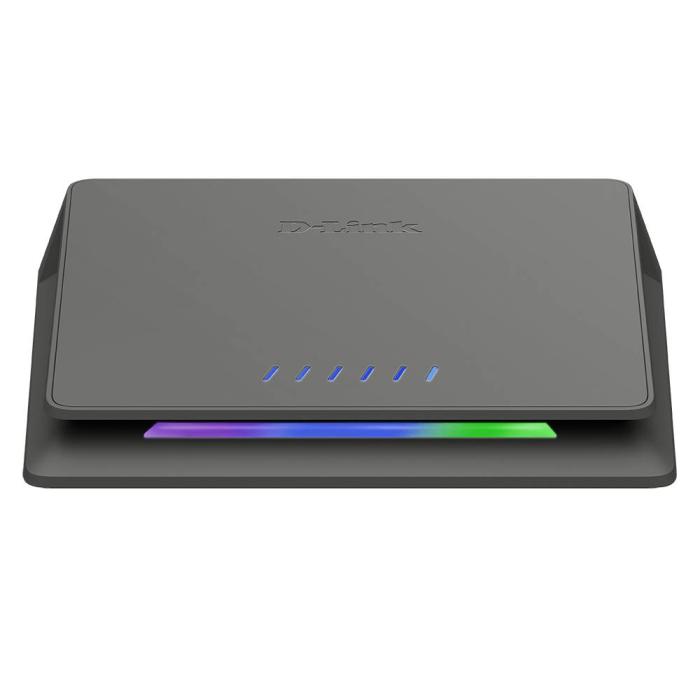

The D-Link DMS-106XT is a grey unmanaged switch that expands the local network with high-speed Ethernet connectivity. It features six RJ-45 Ethernet 2.5G ports (100/1000/2500), of which five are 2.5G copper Ethernet ports and one is a 10G copper Ethernet port, with 10G support for connecting demanding devices and network segments. It supports the IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u and IEEE 802.3x standards, and includes flow control, auto MDI/MDI-X and store-and-forward function. Its switching capacity reaches 45 Gbit/s and its MAC address table supports 4000 entries, as well as featuring QoS support to prioritise traffic. The casing is aluminium and the device measures 217 x 33 x 163 mm (width x height x depth), with a weight of 680 g. The activity, link and power LED indicators make it easy to visually check the status of the switch.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 6
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 2.5G Ethernet (copper) ports quantity: 5
- 10G Ethernet (copper) ports quantity: 1
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
Data transmission
- Switching capacity: 45 Gbit/s
- MAC address table: 4000 entries
- Store-and-forward: Yes
Design
- Rack mounting: No
- Stackable: No
- Product colour: Grey
- Housing material: Aluminium
- LED indicators: Activity, Link, Power
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 489941 h
Power
- AC input voltage: 100 - 240 V
- DC input voltage: 12 V
- Input current: 1.5 A
- Power consumption (max): 10.6 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 36.17 BTU/h
Weight & dimensions
- Width: 217 mm
- Depth: 163 mm
- Height: 33 mm
- Weight: 680 g
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, RoHS
- Certification: FCC, RCM, BSMI, VCCI
Logistics data
- Harmonized System (HS) code: 85176990
